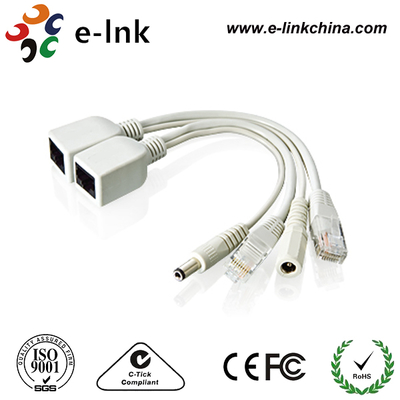

Passive PoE Kit Injector + Splitter Set for AP IP Camera VoIP CPE

Large Image : Passive PoE Kit Injector + Splitter Set for AP IP Camera VoIP CPE

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-POE-2P

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	$1.2-$2
Packaging Details:	PoE Splitter Standard export package
Delivery Time:	3-5 working days
Payment Terms:	T/T, Western Union, MoneyGram, Paypal
Supply Ability:	1000pcs/Month

Contact Now

Detailed Product Description

Kit Includes:	1x Passive Injector, 1x Passive Splitter	Ethernet Speed:	10/100 Mbps
Power Input Range:	12–57V DC (via Device’s Original Adapter)	Pinout:	Data On 1,2,3,6 \| Power On 4,5(+), 7,8(-)
Connector Type:	RJ45, Cat5 Or Higher Cable	Dimensions:	210 × 19 × 19 Mm \| Weight: 55 G

Passive PoE Kit Injector + Splitter Set for AP IP Camera VoIP CPE

Overview

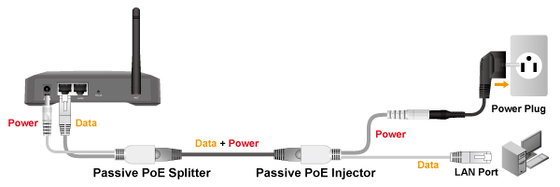

The LNK-POE-2P Passive PoE Kit combines a compact injector and splitter, providing a simple,

low-cost solution for powering network devices like APs, IP cameras, and VoIP phones. By reusing

the original power adapter of your device, it eliminates the need for dedicated PoE power supplies,

making deployment flexible and installation effortless.

Features

Complete passive PoE kit: injector + splitter

Cost-effective power solution for AP, IP camera, VoIP, and CPE

Works with 12–57V input from the device’s own adapter

Supports 10/100 Mbps Ethernet transmission

Uses standard Cat5 cabling with RJ45 connectors

Compact PVC design, lightweight and easy to install

Operating temperature range: 0°C to 40°C

Technical Indexes

Interface	Data pin: 1,2,3,6
Interface	Power pin: 4, 5, 7, 8 (12~57V)
Case of material	PVC
Network cable	T IA/EIA 568 Cat. 5
Ethernet data rate	10/100 Mbps
Ethernet cable connector	RJ-45
Operating Temperature	0°C - 40°C (32°F - 104°F)
Storage temperature	-40°C - 70°C (-40°F - 158°F)
Operating Humidity	10% ~ 80% (non-condensing)
Storage Humidity	5% ~ 90% (non-condensing)
Product Weight (g)	55g
Dimensions	210 x 19 x 19 mm
( L x W x H (mm) )	210 x 19 x 19 mm
