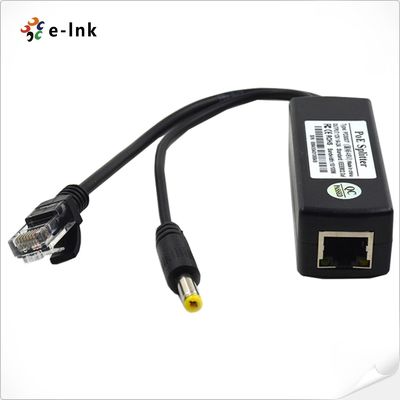

12V PoE Splitter
E-lnk 12V PoE Splitter Overview
Based on the IEEE 802.3af/at standards, the PoE Splitter serves as a cost-effective power delivery solution for expanding network capabilities. This device efficiently separates power and data signals from a single Ethernet input, enabling seamless connectivity for non-PoE compatible devices. When paired with a standard-compliant PoE switch or midspan injector, it delivers both stable electricity and network connectivity to a wide range of terminal equipment. With a consistent 12V DC output, this splitter is ideal for supporting wireless city infrastructure, security monitoring systems, and other PoE-based applications—overcoming limitations posed by fixed power line layouts and offering greater installation flexibility.
E-lnk 12V PoE Splitter Features
- Fully compliant with international IEEE 802.3af standard, delivering up to 15.4W of power for compatible powered devices
- Maintains stable 10/100Mbps Ethernet data transmission while simultaneously providing power over standard network cables
- Features automatic PSE detection capability, working within 37V-57V input voltage range for seamless power negotiation
- Converts PoE power to stable 12V DC output, enabling easy integration of non-PoE devices into existing PoE networks
- Built-in isolation circuit protection effectively safeguards connected equipment from power surges and electrical interference
- Comprehensive safety protection including short-circuit and over-voltage prevention ensures reliable operation
- Compact and rugged housing design allows for flexible deployment in various environmental conditions
- Universal compatibility with IP cameras, wireless access points, and other network peripherals requiring 12V power input
E-lnk 12V PoE Splitter Application
This IEEE 802.3af compliant PoE Splitter enables flexible network deployment across multiple environments by delivering both data connectivity and stable 12V power to non-PoE devices through standard Ethernet cabling.
• Legacy Device Integration - Enables seamless connectivity for conventional IP cameras, wireless access points, and network equipment that require 12V DC input in existing PoE-enabled infrastructure
• Security Monitoring Systems - Provides reliable power and data transmission to surveillance cameras, intercom systems, and access control devices in locations where electrical wiring is impractical
• Wireless Network Expansion - Supports deployment of Wi-Fi access points and network bridges in wireless city projects and enterprise environments without proximity to power outlets
• Industrial Networking Solutions - Facilitates connectivity for industrial sensors, control units, and monitoring devices in automation systems while providing electrical isolation protection
• Digital Signage & Communication Systems - Powers digital displays, information kiosks, and VoIP equipment through single-cable installation, reducing wiring complexity
Key Technical Applications:
-
Non-PoE device integration into standardized PoE networks
-
Network infrastructure expansion with 12V power requirement
-
Remote power delivery for security and surveillance equipment
-
Industrial automation connectivity with circuit protection
-
Structured cabling systems with power transmission capability
This power splitting solution effectively bridges the gap between modern PoE infrastructure and conventional 12V devices, offering installation flexibility while maintaining compliance with international IEEE standards for network power delivery.
E-lnk 12V PoE Splitter Technical Indexes
|
Model
|
LNK-SP100
|
|
|
|
|
|
|
|
|
|
|
|
Transfer Rate
|
10/100M
|
|
|
|
|
|
|
|
|
Power
|
Input 48V DC /0.35A, Output 12V/1.25A
|
|
|
|
|
|
|
Standard
|
IEEE802.3 af
|
15.4W
|
|
|
|
|
|
|
|
|
|
TRNF
|
1/2 +
|
3/6
|
-
|
4/5 +
|
7/8 -
|
|
|
|
|
Interface Type
|
1 Input RJ45 port, 1 output RJ45 port, 1 DC output
|
|
|
|
|
|
|
|
Standard
|
IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 af
|
|
|
|
|
|
|
LED
|
Yellow PoE lamp
|
|
|
|
|
|
|
|
|
Work within -20~50
|
Storage within -30~60
|
|
Environment
|
Work within 10%~90% Non-condensing Storage within 5%~95%
|
|
|
Non-condensing
|
|
|
|
|
|
|
|
|
Dimension
|
93L * 34W *26H
|
|
|
|
|
|
|
|
|
|
|
Weight
|
0.05kg
|
|
|
|
|
|
|
|
|
|
|
|
E-lnk 12V PoE Splitter Ordering Information
| Model |
Description |
| LNK-SP100 |
10/100M Input IEE802.3af/at Output DC 12V/1.25A |
After-Sales and Warranty Policy
It is composed of online customer service and telephone customer service,
providing product consultation, remote technical support, maintenance and acceptance services.
Service Policy: Three-month replacement and three-year warranty.
Replacement: Within three months of purchasing a series of products, after testing the product failure
by technicians and man-made damage caused by non-natural disasters, the purchaser can directly
go to the purchasing point to replace the same type of products.Or a product of comparable performance.
If there is no trouble in product testing, the original sample will be returned.
Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.
[The following circumstances do not fall within the scope of replacement and free maintenance]
1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
