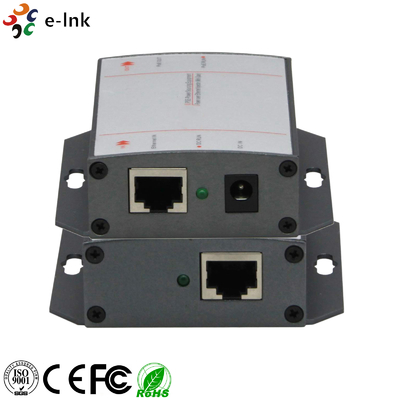

95W Single-Port PoE Injector 48–57V DC Input Gigabit LT PoE++ Adapter
Overview
The 95W single-port PoE injector provides ultra-high power and gigabit data transfer for
demanding devices such as PTZ dome cameras, access points, and high-performance IP
equipment. Supporting LT PoE++ (95W) and backward compatible with IEEE802.3af/at
standards, it offers up to 100W total output. With dual RJ45 ports and DC input flexibility, it
delivers a cost-effective, safe, and reliable solution for professional high-power PoE
deployments.
Features
Ultra High Power: Delivers up to 95W PoE++ per port, 100W total.
Wide Input Range: Accepts 48–57V DC for flexible deployments.
Standards Support: LT PoE++, IEEE802.3af, IEEE802.3at compliant.
Gigabit Transmission: 10/100/1000Mbps supported for smooth data flow.
Flexible Pin Assignment: Mid-span & end-span PoE options available.
Safety Built-in: ESD protection, thermal shutdown (>100°C).
Durable & Reliable: MTBF >190,000 hours (~21 years).
Compact Design: Lightweight (0.11kg), 80×76×25mm, fanless.
Easy Installation: Plug & Play, wall-mount or desktop.
Technical Indexes
|
Port Description
|
2x copper cable RJ45 ports, 1x DC input port
|
|
PoE Power Supply
|
mid-span: 4/5, 7/8 data line pair(default); end-span: 1/2,3/6 spare line pair
(can be customized)
|
|
Network Medium
|
100BASE-TX or 1000BASE-TX: Cat5 and more UTP (≤100 meters)
|
|
Thermal Protection
|
>100°C
|
|
Performance
|
Working Rate:10/100Mbps or 10/100/1000Mbps
Network port protection: meet with IEC61000-4-2(ESD)
MTBF: 190,000 hours(about 21 years)
|
|
PoE Standards
|
IEEE802.3af IEEE802.3at
|
|
LEDs Indicator
|
PoE working status
|
|
Power
|
The total power: 100W
Each Port Output Power: 95W
Voltage: 48V~57V
|
|
Network Protocols and Standards
|
IEEE 802.3i 10BASET
IEEE 802.3u 100BASETX
IEEE 802.3x Flow Control
IEEE 802.1ab 1000BASET
IEEE 802.1af DTE Power via MDI
Support LT PoE++ high power PoE standard, compatible with IEEE 802.3af/ IEEE 802.3at standard
|
|
Dimensions/Weight
|
LxWxH: 80x76x25(mm), 0.11kg
|
|
Working
Environment
|
Operating Temperature: 0°～ 55°C
Storage Temperature: -20°～ 75°C
Working Humidity: 10%～90%, non-condensing
Storage Humidity: 10%～95%, non-condensing
|
|
Warranty
|
CE mark, commercial, FCC Part 15 Class B, RoHS
1 year warranty
|
Ordering Information
|
Model
|
Description
|
|
LNK-PSE48T95W
|
DC Input 48V 10/100M PoE injector, 2x RJ45 ports, 95W
|
|
LNK-PSE48GT95W
|
DC Input 48V 10/100/1000M PoE injector, 2xRJ45 ports, 95W
|

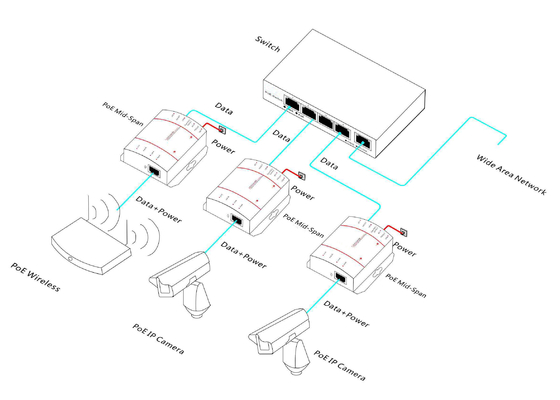

Application
