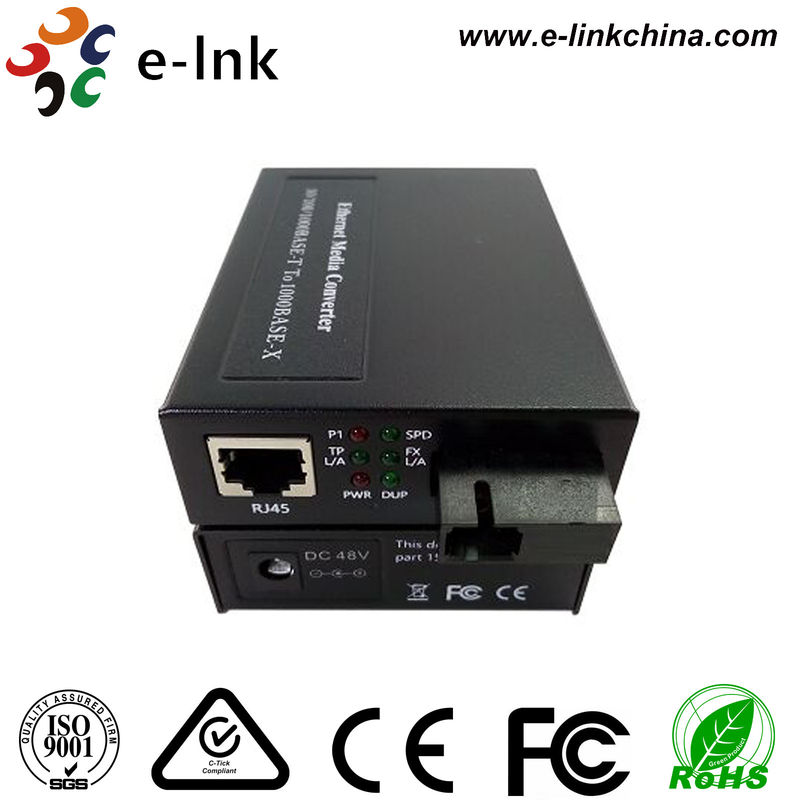

10/100/1000M Single Fiber Media Converter with 48VDC Power Input

Model: LNK-S3011D Series

Overview

Due to its unique function of link failure alert between electrical port and optical one, the intelligent 10/100/1000M adaptive Gigabit Ethernet media converter can replace the media converter with network management to greatly reduce the system cost.

LNK-S3011D Series Ethernet media converter can interconvert electrical signals of 100Base-T and 1000Base–TX twisted pairs with optical signals of 1000Base-FX.

It extends the network transmission distance from 100m via copper cables to 120km via fiber optical cable.

It enables the data to transmit in two different mediums of electrical and optical networks either by the technology of data link L2 store-and-forward, or by the one of PHY L1 cut-through).

It supports transmission in single mode single fiber.

Features

• 10/100/1000Mbps auto-sensed, facilitating network upgrade
• Built-in efficient switching core to implement flow control and reduce broadcast packets
• Full-duplex and half-duplex auto-sensed
• Support auto-sense of MDI/MDI-X, facilitating system commissioning and installation
• Support Link Failure Alert (LFA) optional
• Support half /full-duplex of FX and link failure alert with optional dip-switch
• Support 10/100/1000Mbps store-and-forward and 1000Mbps cut-through transmission with optional dip-switch
• Support the transmission of 1000Base-Fx or STM-1, compatible with other devices
• Support low-time lag transmission
• Support the transmission of extra-long packets up to 16000 bytes
• Support the transmission of extra-long VLAN packets
• Support Quality of Service (QoS) , ensuring the transmission of VoIP packets
• Extremely low power consumption (less than 2W), low heat, reliable and stable performance, and long lifetime;
• Single mode single fiber transmission
• DC48V External Power Supply
•
