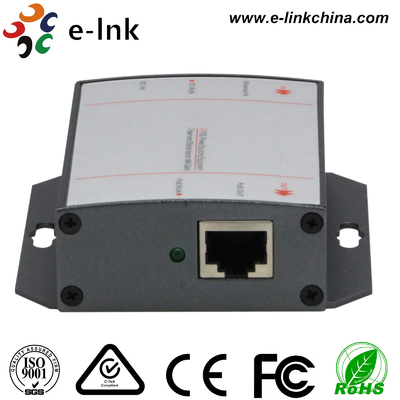

12–36V DC Input Single-Port PoE Injector 30W Gigabit Midspan Adapter

Large Image : 12–36V DC Input Single-Port PoE Injector 30W Gigabit Midspan Adapter

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE, FCC, ISO9001. RoHS
Model Number:	LNK-PSE832
Document:	1E-link Communication & Net...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	$12-$23
Packaging Details:	PoE Injector Standard Export Package
Delivery Time:	3-7 working days
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Input Voltage:	12–36VDC	Output Power:	15.4W (802.3af), 25.5W (802.3at), Max 30W
Ports:	2×RJ45 (Data In + PoE Out), 1×DC Input	Data Rate:	10/100/1000Mbps
Operating Temp:	0°C ~ 55°C	Dimensions / Weight:	80×76×25mm / 0.11kg

12–36V DC Input Single-Port PoE Injector 30W Gigabit Midspan Adapter

Overview

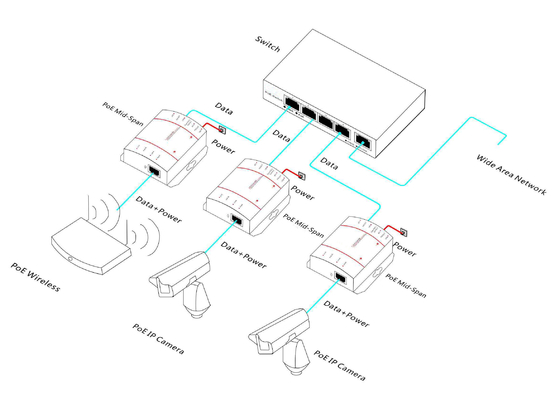

The compact single-port PoE injector with 12–36V DC input is designed to power IP

cameras, wireless access points, and VoIP phones through a single Ethernet cable.

Supporting IEEE 802.3af/at standards, it provides up to 30W of reliable PoE output while

ensuring seamless data transmission at Fast or Gigabit Ethernet speeds. With natural heat

dissipation, lightning protection, and a fanless design, it offers quiet, efficient, and stable

performance for desktop or wall-mounted installations.

Features

Flexible DC Input: Operates from 12–36VDC power sources.

PoE Standards: IEEE 802.3af (15.4W) & IEEE 802.3at (25.5W).

Dual RJ45 Ports: 1 uplink Data-In + 1 PoE Data+Power Out.

Gigabit Ready: Supports 10/100/1000Mbps transmission.

Protection Built-in: ESD, lightning-proof, and thermal (>100°C).

Fanless & Compact: Silent design, desktop or wall-mountable.

Durable Performance: MTBF >190,000 hours (~21 years).

Lightweight Build: Only 0.11kg, ideal for space-limited setups.

Technical Indexes

Port Description	2x copper cable RJ45 ports, 1x DC input port
PoE Power Supply	mid-span: 4/5, 7/8 data line pair(default); end-span: 1/2,3/6 spare line pair (can be customized)
Network Medium	100BASE-TX or 1000BASE-TX: Cat5 and more UTP (≤100 meters)
Thermal Protection	>100°C
Performance	Working Rate:10/100Mbps or 10/100/1000Mbps Network port protection: meet with IEC61000-4-2(ESD) MTBF: 190,000 hours(about 21 years)
PoE Standards	IEEE802.3af IEEE802.3at
LEDs Indicator	PoE working status
Power	Total power: 16W(IEEE802.3af) 30W(IEEE802.3at) PoE port power: 15.4W(IEEE802.3af) 25.5W(IEEE802.3at) DC input voltage: 12~36V
Dimensions/Weight	LxWxH: 80x76x25(mm), 0.11kg
Working Environment	Operating Temperature: 0°～ 55°C Storage Temperature: -20°～ 75°C Working Humidity: 10%～90%, non-condensing Storage Humidity: 10%～95%, non-condensing
Warranty	CE mark, commercial, FCC Part 15 Class B, RoHS 1 year warranty

Ordering Information

Model	Description
LNK-PSE832	DC Input 12~36V 10/100M PoE injector, 2x RJ45 ports, IEEE802.3af, 15.4W
LNK-PSE832T	DC Input 12~36V 10/100M PoE injector, 2x RJ45 ports, IEEE802.3at, 25.5W
LNK-PSE832G	DC Input 12~36V 10/100/1000M PoE injector, 2xRJ45 ports, IEEE802.3af,15.4W
LNK-PSE832GT	DC Input 12~36V 10/100/1000M PoE injector, 2xRJ45 ports, IEEE802.3at,25.5W
