4-Port PoE Injector IEEE802.3af/at 120W Power Supply for IP Cameras APs

Large Image : 4-Port PoE Injector IEEE802.3af/at 120W Power Supply for IP Cameras APs

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE, FCC, RoHS, ISO9001
Model Number:	LNK-POE204/LNK-POE304
Document:	1E-link Communication & Net...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	$36-$65
Packaging Details:	PoE Injector Standard Export Package
Delivery Time:	3-7 working days
Payment Terms:	T/T,MoneyGram,Western Union
Supply Ability:	1000 pcs/month

Contact Now

Detailed Product Description

Type:	Mid-span PoE Injector (4 Ports)	Standards:	IEEE802.3af/at Compliant
Power Output:	Up To 30W Per Port, 120W Total	Input:	AC 90–240V, 50–60Hz
Ports:	4×PoE RJ45 + 4×LAN RJ45	Mounting:	Desktop / Wall Mount

4-Port PoE Injector IEEE802.3af/at 120W Power Supply for IP Cameras APs

Overview

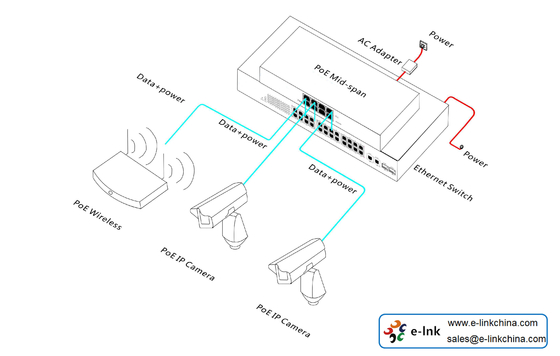

The 4-Port PoE Injector provides reliable power and data transmission for up to four network devices,

including IP cameras, VoIP phones, and wireless access points. Featuring IEEE802.3af/at compliance,

compact fanless design, and dual wiring options, it is ideal for offices, surveillance, and SOHO networks.

Features

4 PoE Ports: Supports IEEE802.3af (15.4W) & 802.3at (30W) standards

Flexible Powering: Supplies power via spare pairs (4/5+, 7/8–) or data pairs (1/2+, 3/6–)

Dual-Speed Support: 10/100/1000Mbps passthrough with seamless connectivity

Wide Input Range: AC 90–264V for global use

Silent Operation: Fanless design, natural heat dissipation

Compact & Versatile: Desktop or wall-mount installation

Technical Indexes

Parameter	Specifications
Features	Conforms to IEEE802.3af standard RJ-45 Conforms to IEEE802.3af standard RJ-45
	Data Input Interface 4RJ-45 10/100Base-TX/ Data Input Interface 4RJ-45 10/100/1000Base-TX
	Output Port Power Cable Included
Data Rate	10/100Mbps 10/100/1000Mbps
Input Power	90-240V AC ,50-60Hz
Output Power	415.4W Max IEEE802.3af 430W Max IEEE802.3at
Wiring	Data provide over pairs 1/2(+) and 3/6(-)
Wiring	Power over spare pairs 4/5(+) and 7/8(-)
LED Display	YES
Operating Temperature	0 to +40°C,
Humidity	Max. 95% RH(non-condensing)
Dimension	280X186X44(H×D×W)
Weight	2.08KG

Ordering Information

Model	Decription
LNK-POE204	4-port PoE Adapter, 10/100Mbps, IEEE 802.3af 15.4W
LNK-POE204AT	4-port PoE Adapter, 10/100Mbps, IEEE 802.3at 30W
LNK-POE304	4-port PoE Adapter, 10/100/1000Mbps, IEEE 802.3af 15.4W
LNK-POE304AT	4-port PoE Adapter, 10/100/1000Mbps, IEEE 802.3at 30W
