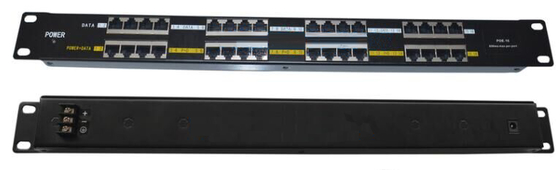

16-Port 1U Rack Mount Passive PoE Injector for IP Cameras APs

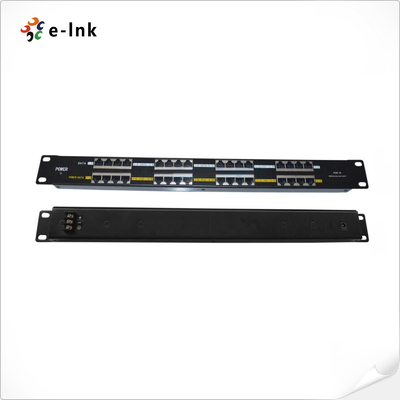

Large Image : 16-Port 1U Rack Mount Passive PoE Injector for IP Cameras APs

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE, FCC, RoHS, ISO9001
Model Number:	LNK-POE-16P
Document:	1E-link Communication & Net...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	$29-$49
Packaging Details:	PoE Injector Standard Export Package
Delivery Time:	3-9 working days
Payment Terms:	Western Union,T/T,MoneyGram
Supply Ability:	1000 pcs/month

Contact Now

Detailed Product Description

Type:	16-Port Passive PoE Injector	Certification:	CE / FCC / RoHS
Input Voltage:	12–57VDC	Output:	12–57VDC, 1.5A Max Per Port
Ports:	16 PoE + 16 LAN (RJ45)	Temp Range:	0–40℃ Operation, -20–85℃ Storage

16-Port 1U Rack Mount Passive PoE Injector for IP Cameras APs

Overview

The 16-Port Passive PoE Injector delivers centralized power and data over a single

Ethernet cable, supporting up to 16 devices such as IP cameras, VoIP phones, and WiFi

access points. With a 1U rack-mountable design and robust metal housing, it offers a

reliable and cost-effective PoE solution for SMBs, ISPs, and surveillance networks.

Features

Supports up to 16 devices with passive PoE injection

Rack-mount 1U design, durable metal construction

10/100Mbps Ethernet speed with pinout 45+ / 78-

Works with CAT-5/6/7 cables up to 100m (328ft)

Wide input voltage range: 12–57VDC

LED power indicator for quick status check

Ideal for IP cameras, APs, and VoIP phones

CE, FCC, RoHS certified, 2-year warranty

Technical Indexes

Type	Passive POE power supply
Input Voltage	12-57Vdc
Input Current	16A max
Input Type	Passive
Output Voltage / Power	12-57Vdc, 1.5A max
Output type	Single output 16RJ45 connector ---POE 16RJ45 connector ----LAN
Ethernet speed	10/100Mbps Pin 45+78-, 2 pairs
Internet standard	NO Compliance IEEE802.3AF/802.3AT
Material	Metal
Approval	CE/ROHS/FCC
Warranty	2 year
Output Ripple	1% Max
Efficiency	≥80%
Response Time	<1ns
Combined Load Regulation	±3%
Combined Line Regulation	±5%
LED indicator	Power on, Green (With Plastic enclosure)
Operating Temp	0 to 40℃ (32 to 104℉)
Storage Temp	(-)20 to 85 ℃ ( -22 to 158 ℉)
Dimension (LxWxH)	482.6mm * 44.3mm * 25mm
Weight	5kg
Operating Humidity	10~ 90% Non-condensing
