12-Port 1U Rack Mount Passive PoE Injector for IP Cameras APs

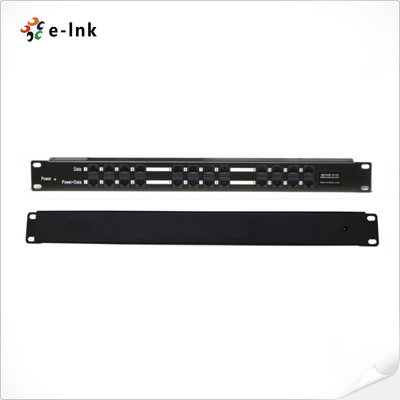

Large Image : 12-Port 1U Rack Mount Passive PoE Injector for IP Cameras APs

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE, FCC, RoHS, ISO9001
Model Number:	LNK-POE-12P
Document:	1E-link Communication & Net...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	$26-$46
Packaging Details:	PoE Injector Standard Export Package
Delivery Time:	3-8 working days
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	1000 pcs/month

Contact Now

Detailed Product Description

Type:	12-Port Passive PoE Injector, Rack Mount	Input Voltage:	12–57VDC, 16A Max
Output:	12–57VDC, Up To 1.5A Per Port	Ethernet Speed:	10/100Mbps
Size / Weight:	482.6 × 44.3 × 25mm / 5kg	Certifications:	CE, FCC, RoHS

12-Port 1U Rack Mount Passive PoE Injector for IP Cameras APs

Overview

The 12-Port 1U Rack Mount Passive PoE Injector delivers centralized power for up to 12

devices over Ethernet cables up to 100m. Ideal for IP cameras, VoIP phones, and WiFi

access points, it simplifies network installation by combining power and data in a single

cable. The durable metal rack-mount design makes it perfect for structured cabling and

enterprise environments.

Features

12 Passive PoE Ports – Powers up to 12 devices via Ethernet

1U Rack Mount Design – Space-saving 19” rack mount for easy integration

Flexible Voltage Input – Supports 12–57VDC, 1.5A max per port

10/100Mbps Data Support – Reliable LAN + PoE connectivity

Industrial Durability – Metal housing with CE, FCC, RoHS compliance

LED Power Indicator – Quick system status monitoring

Wide Application – Ideal for IP cameras, VoIP phones, and WiFi APs

Technical Indexes

Type	Passive POE power supply
Input Voltage	12-57Vdc
Input Current	16A max
Input Type	Passive
Output Voltage / Power	12-57Vdc, 1.5A max
Output type	Single output 12RJ45 connector ---POE 12RJ45 connector ----LAN
Ethernet speed	10/100Mbps Pin 45+78-, 2 pairs
Internet standard	NO Compliance IEEE802.3AF/802.3AT
Material	Metal
Approval	CE/ROHS/FCC
Warranty	2 year
Output Ripple	1% Max
Efficiency	≥80%
Response Time	<1ns
Combined Load Regulation	±3%
Combined Line Regulation	±5%
LED indicator	Power on, Green (With Plastic enclosure)
Operating Temp	0 to 40℃ (32 to 104℉)
Storage Temp	(-)20 to 85 ℃ ( -22 to 158 ℉)
Dimension (LxWxH)	482.6mm * 44.3mm * 25mm
Weight	5kg
Operating Humidity	10~ 90% Non-condensing
