10 Gigabit Ethernet Card Dual SFP+ Ports Intel Chip High Performance

 10G Fiber Optic LAN Card

10G Fiber Optic LAN Card Overview

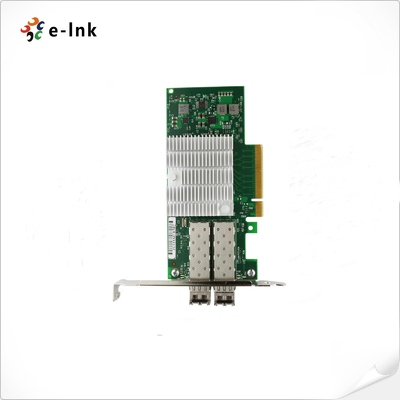

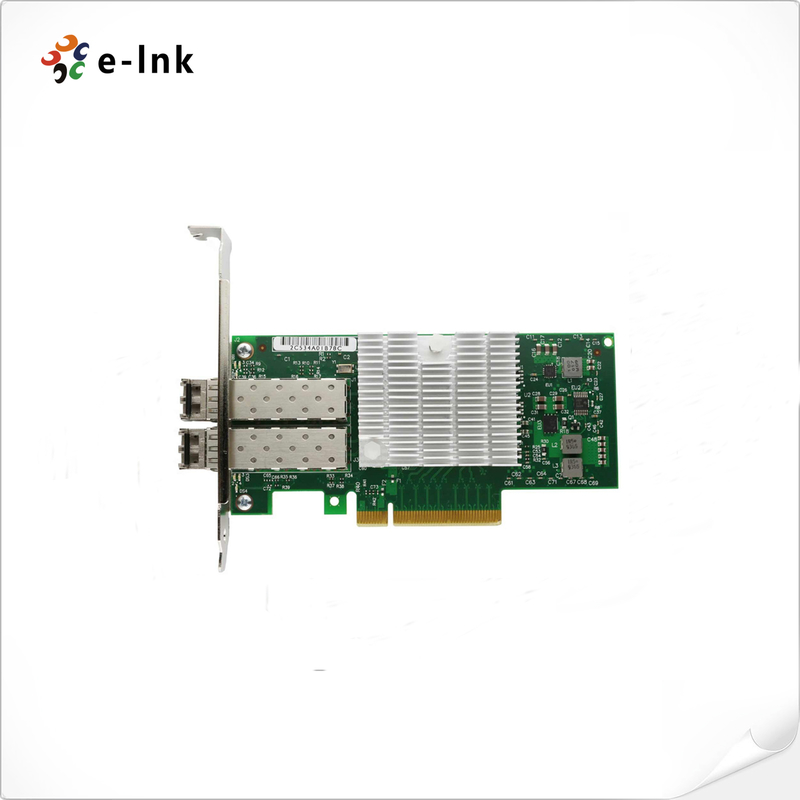

The E-Link LNK-10G is a high-performance, dual-port, 10-Gigabit SFP+ network interface card

powered by the Intel JL82599ES controller. Designed for PCI-Express x8 slots, this server-grade

adapter provides exceptional 10 Gbps throughput and features two 850 nm SFP+ fiber ports

for high-speed data transmission. Engineered for data centers, enterprise networks,

and virtualization environments, the card offers low latency, efficient bandwidth utilization,

and robust compatibility with various network infrastructures. The card ensures reliable performance

for demanding applications, including server clustering, network storage, and data-intensive computing tasks.

10G Fiber Optic LAN Card Features

► IPv4 and IPv6 Support for IP/TCP and IP/UDP receive checksum offload
► Fragmented UDP checksum offload for packet reassembly
► Reduced CPU utilization with Receive Side Coalescing (RSC)
► Support for 16 Virtual Machine Device Queues (VMDq) per port
► Direct Cache Access (DCA) for improved data transfer efficiency
► Advanced memory architecture reduces latency, enabling interleaved TSO packets with minimal delay
► Minimized device I/O interrupts using MSI and MSI-X for enhanced performance
► Offload of TCP/IP/UDP checksum calculation and TCP segmentation for reduced host processor load
► Large on-chip receive buffer (512 KB) and transmit buffer (160 KB) for optimal data flow
► Vital Product Data (VPD) support per PCI 3.0 specification for enhanced system management
► IEEE 1588 Precision Time Protocol (PTP) support for time synchronization
► Backward Congestion Notification (BCN) protocol support in addition to EEDC functionality for enhanced traffic management

10G Fiber Optic LAN Card Technical Indexes

10G Fiber Optic LAN Card Ordering Information
