Intel 82580EB Network Card Quad SFP Ports PCIe X4 Virtualization Ready

4-Port SFP Gigabit LAN Card

4-Port SFP Gigabit LAN Card Overview

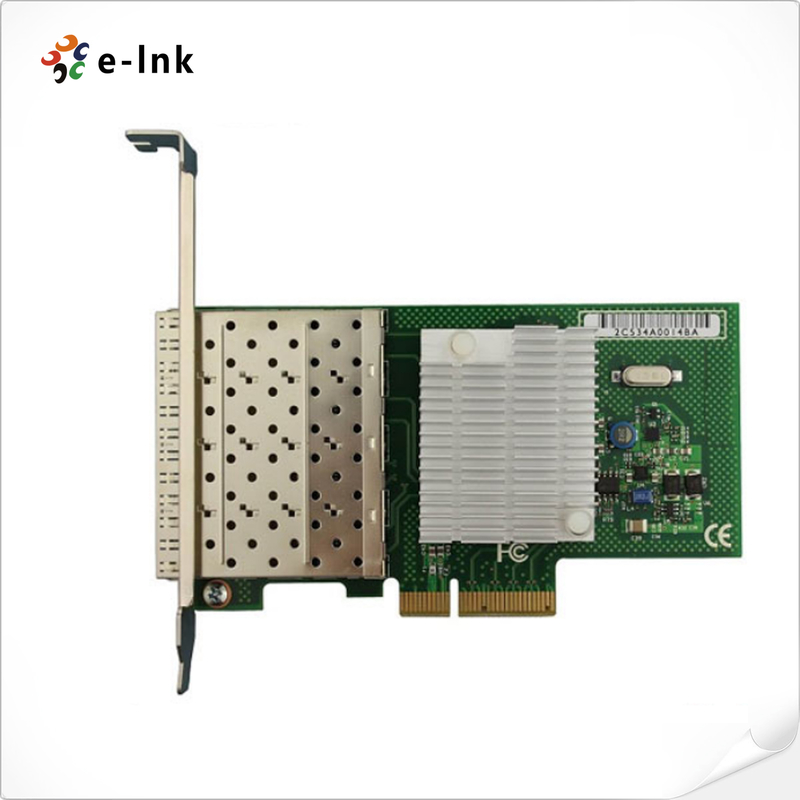

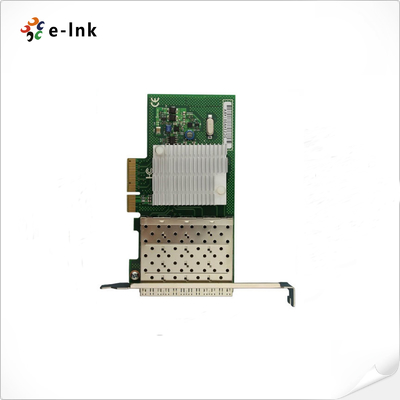

The E-link LNK-LC4000 is a high-performance Quad Port Gigabit Fiber Network Interface Card

built on the reliable Intel 82580EB controller. This server-grade adapter is designed to be used with

PCI-Express x4 slots. It features four SFP ports that support both fiber and copper Gigabit Ethernet

 connections, offering ultimate flexibility for diverse network environments. It delivers exceptional

throughput and efficiency with advanced hardware offloading technologies, including TCP/UDP/IP

checksum offload, TSO, and VMDq virtualization support. The LNK-LC4000 is an ideal solution

for data centers, servers, and virtualization platforms, ensuring robust performance, reduced CPU

overhead, and reliable connectivity for demanding network applications.

4-Port SFP Gigabit LAN Card Features

► Plug-and-Play design for easy installation
► Supports PCI Express Base Specification 2.0 (5 GT/s)
► Powered by Intel® 82580 Quad integrated MAC + PHY and SERDES chip controllers

     for high performance, reliability, and low power consumption
► Ultra-deep packet buffer per channel reduces CPU utilization
► Hardware acceleration offloads tasks from the host processor, including TCP/UDP/IP checksum

     calculations and TCP segmentation
► Server-class reliability, availability, and performance features:
 • Link aggregation and load balancing
 • Switch-dependent: IEEE 802.3ad (LACP), Generic Trunking (GEC/FEC)
 • Switch- and NIC-independent failover support
► Advanced traffic management:
 • Priority queuing with IEEE 802.1p Layer 2 priority encoding
 • Virtual LANs with IEEE 802.1Q VLAN tagging
 • Jumbo Frames up to 9.5KB
 • IEEE 802.x flow control
 • Multicast/broadcast packet replication
► Comprehensive network monitoring with statistics for SNMP MIB II, Ethernet-like MIB,

     and Ethernet MIB (IEEE 802.3z, Clause 30)
► Supports Vital Product Data (VPD) for system management

4-Port SFP Gigabit LAN Card Technical Indexes
