High-Speed 10G PCIe Network Card with 2.5G/5G/10G over Cat 5e/6/6a Cables

PCIe x4 Single-port RJ45 10G Ethernet Network Adapter

Overview

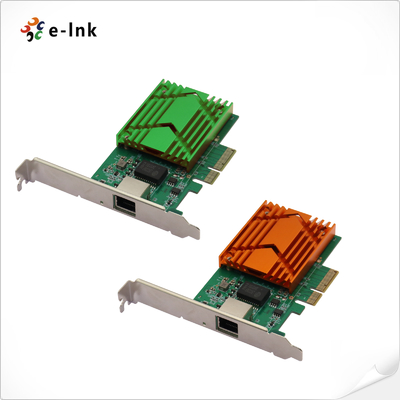

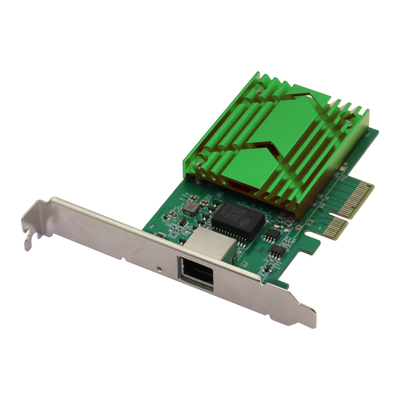

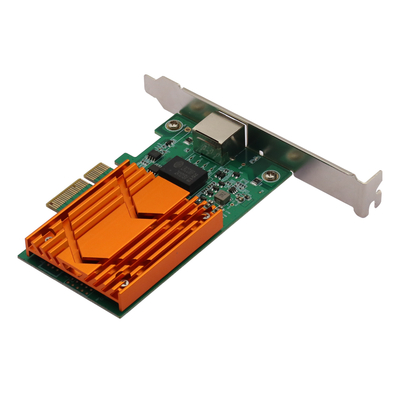

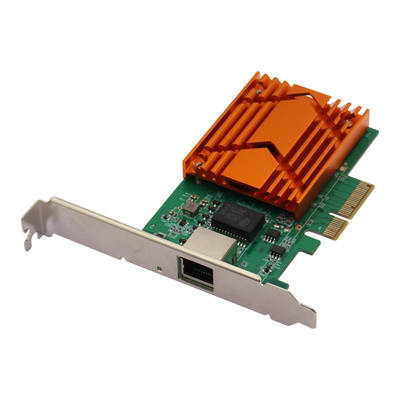

LNK-NIC-10GE is a high-performance PCI Express x4 single-port 10 Gigabit Ethernet network

adapter, based on the reliable xxx chipset. It is fully compatible with PCIe x4, x8, and x16 slots,

offering flexible integration into a wide range of systems.

This five-speed NIC supports 100Mbps to 10Gbps transmission over standard twisted pair cables.

It delivers up to 10Gbps over 100 meters using Cat 6a, and supports 5Gbps over Cat 5e or Cat 6.

Compliant with IEEE 802.3an and 802.3bz standards, it supports 100BASE-TX, 1000BASE-T,

2.5GBASE-T, 5GBASE-T, and 10GBASE-T.

Integrated PCIe, MAC, and PHY functions ensure space- and power-efficient performance.

Advanced features include MSI/MSI-X, RSS, LSO, and IPv4/IPv6 checksum offloading, minimizing

CPU usage. The card also supports jumbo frames up to 16KB for high-throughput applications.

Features

•  PCIE x 4 Hardware Interface.
•  Support systems: Windows, Linux, Ubuntu, etc
•  Windows 7/8/8.1/10
•  Windows Server 2008 R2/2012 R2/2016 R2/2019 R2
•  Linux Stable Kernel version 2.6.32/3.x/4.x or later
•  Linux CentOS/RHEL 6.5 / 7.x or later
•  Ubuntu 14.x/15.x/16.x or later
•  VMware ESX/ESXi 4.x/5.x/6.x or later
•  10/100/1000M/2.5G/5G/10Gbps data rate
•  Jumbo frame support up to 16 KB.
•  Extensive software support: Windows and Linux drivers; UEFI and PXE remote boot.
•  MSI, MSI-X, LSO, RSS and IPv4/IPv6 checksum offload.
•  Brown and Green color optional

Technical Indexes
