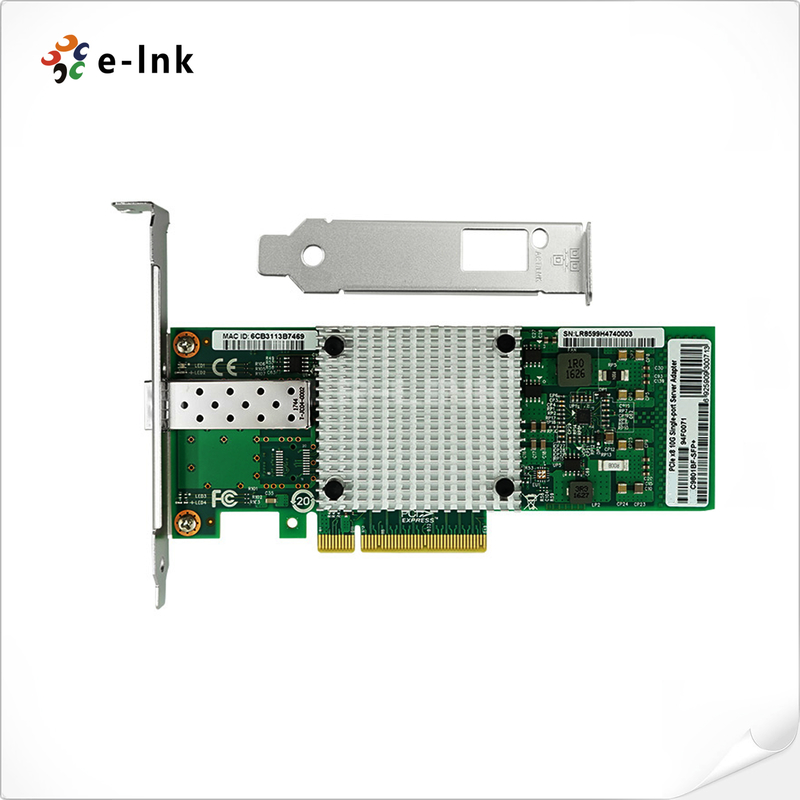

PCI Express x8 Single Port SFP+ 10 Gigabit Server Adapter (Intel 82599EN Based)
10 Gigabit Server Adapter Overview
The LNK-C9801BF-SFP+ 10G Server Adapter is a high-performance, flexible network interface card
designed to meet the rigorous demands of modern data centres. With SFP+ connectivity, it provides
scalable 10 Gigabit Ethernet throughput — essential for handling the substantial data loads produced
by multi-core servers, high-performance computing (HPC), database clusters and video-on-demand
services. Engineered to eliminate I/O bottlenecks in virtualised and unified storage environments,
this adapter ensures that mission-critical applications run with maximum reliability. Advanced hardware
optimisation features such as I/O virtualisation transform the data centre by offering outstanding
scalability, mobility and efficiency. The LNK-C9801BF-SFP+ is the ideal solution for enterprises
seeking to future-proof their network infrastructure with robust, high-speed server connections.
10 Gigabit Server Adapter Features
-
Powered by Intel® 82599 10 Gigabit Ethernet Controller for high-performance networking
-
PCI Express (PCIe) v2.0, 5.0 GT/s, x8 lanes for fast data throughput
-
Industry-standard SFP+ fiber ports for flexible 10GbE connectivity
-
Remote boot support with PXE and iSCSI functionality
-
Network virtualization support for enhanced data center efficiency
-
IEEE 802.1Q VLAN support for secure and segmented traffic management
-
Low-profile and full-height brackets included for versatile deployment
-
Multi-CPU load balancing to optimize performance across processors
-
Fibre Channel over Ethernet (FCoE) support for unified networking and storage
-
Broad NOS compatibility, supporting most major network operating systems
-
Intel® PROSet Utility integration for easy management via Windows Device Manager
-
Precision time synchronization with IEEE 1588 and 802.1as standards
10 Gigabit Server Adapter Technical Indexes
|
Networking
|
|
Standards:
|
IEEE 802.3u 100BASE-TX
|
|
IEEE 802.3ab 1000BASE-T
|
|
IEEE 802.3bz 2.5G/5GBASE-T
|
|
IEEE 802.3an 10GBASE-T
|
|
IEEE 802.3ae 10Gbps Ethernet
|
|
IEEE 802.3x full-duplex flow control
|
|
PCI-E 1.0 complaint
|
|
NOS Software Support:
|
Windows 7 32-bit (64-bit)
|
|
Windows 8 32-bit (64-bit)
|
|
Windows 8.1 32-bit (64-bit)
|
|
Windows 10 32-bit (64-bit)
|
|
Windows Server 2003 32-bit (64-bit)
|
|
Windows Server 2008 32-bit (64-bit)
|
|
Windows Server 2008 R2 32-bit (64-bit)
|
|
Windows Server 2012 32-bit (64-bit)
|
|
Windows Server 2012 R2 32-bit (64-bit)
|
|
Linux kernel 2.6.30 or greater (x86_64) (w/ SR- IOV support)
|
|
FreeBSD 7.2 or laster
|
|
Linux RHEL 5.6
|
|
Linux RHEL 6.x
|
|
Linux SLES 11 Sp1
|
|
Linux SLES 10 Sp4
|
|
OS Independent
|
|
DOS NDIS 2
|
|
DOS ODI EFI 1.1
|
|
UEFI 2.1
|
|
Vmware ESX 4.02
|
|
Vmware ESX 4.02
|
|
VMware Workstation
|
|
Controller:
|
Intel 82599
|
|
Transmission rate
|
10Gbe
|
|
Network Virtualization
|
FCoe, DPDK
|
|
Interface
|
|
Optical Port:
|
1 x SFP+ Fiber (suitable for 10GBASE-SR, 10GBASE-LR,10G SFP+ Copper, 10G SFP+ DAC, 10G SFP+ AOC)
|
|
LED Indicators
|
|
Link/ACT
|
LED: off = No Link; on = Link; Green Blinking = Activity
|
|
Environmental
|
|
Operating Temperature:
|
0°C to 55°C (32°F to 131°F)
|
|
Storage Temperature:
|
-25°C to 70°C (-13°F to 158°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
Manageability Features
|
|
l Preboot eXecution Environment (PXE) Support
l Simple Network Management Protocol (SNMP)
l Remote Network Monitoring (RMON) Statistic Counters
l iSCSI Boot
l Watchdog Timer
|
|
Adapter Product Features
|
|
l Intel® PROSet Utility
l Plug and play specification support Receive Side Scaling
l Direct Cache Access (DCA)
|
|
Advanced Software Feature
|
|
l Adapter fault tolerance (AFT) Switch fault tolerance (SFT) Adaptive load balancing (ALB) Teaming support
l IEEE 802.3ad (link aggregation control protocol) PCIe Hot Plug*/Active Periphera Component Interconnect (PCI)
l IEEE 802.1Q* VLANs
l IEEE 802.3 2005* flow control support
l Tx/Rx IP, TCP, & UDP checksum offloading (IPv4, IPv6) capabilities (Transmission control protocol(TCP), user datagram protocol
l (UDP), Internet protocol (IP)
l IEEE 802.1p*
l TCP segmentation large send offload
l MSI-X supports Multiple Independent Queues Interrupt moderation
l IPv6 offloading — Checksum and segmentation capability extended to new standard packet type
|
10 Gigabit Server Adapter Ordering Information
|
Model
|
Description
|
|
LNK-C9801BF-SFP+
|
Intel 82599 PCIe x8 10Gbps Single Port Fiber Server Adapter (1x SFP+), not including SFP+ modules
|
