8-Port Passive PoE Injector Power Supply for CCTV Phones WiFi APs

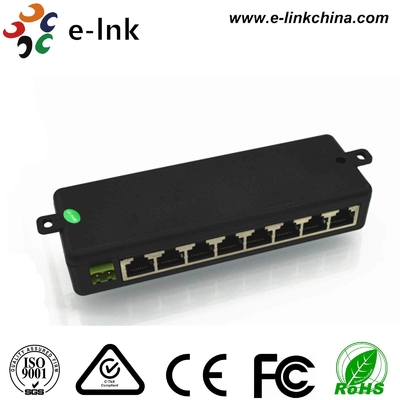

Large Image : 8-Port Passive PoE Injector Power Supply for CCTV Phones WiFi APs

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE, FCC, RoHS, ISO9001
Model Number:	LNK-POE-8P
Document:	1E-link Communication & Net...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	$6-8
Packaging Details:	PoE Injector Power Supply Standard Export Package
Delivery Time:	3-8 working days
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	1000 pcs/month

Contact Now

Detailed Product Description

Type:	Passive PoE Injector Panel (non-IEEE Compliant)	Ports:	8 LAN Input + 8 PoE Output (RJ45)
Ethernet Rate:	10/100 Mbps Fast Ethernet	Input Voltage:	12–57V DC (flexible DC Power Source)
Max Output:	57W Total, 1.5A Max	Size & Weight:	170×60×30 Mm / 0.5 Kg

8-Port Passive PoE Injector Power Supply for CCTV Phones WiFi APs

Overview

The 8-Port 10/100M Passive PoE Power Supply is designed for small to medium networks

that require centralized power for multiple devices. By injecting DC power through Ethernet

cabling, it eliminates the need for local power adapters, supporting up to 8 IP cameras,

access points, or VoIP phones over a distance of up to 100 meters. Compact, efficient, and

plug-and-play, it offers a cost-effective PoE solution without IEEE complexity.

Features

Powers up to 8 passive PoE devices via standard Ethernet cable

328 ft (100m) transmission for both data and power

Wide 12–57V DC input voltage flexibility, up to 1.5A

Supports 10/100 Mbps Ethernet speed

Plug-and-play with LED power indicator

Compact & lightweight design (170×60×30 mm, 0.5 kg)

Certified with CE, FCC, and RoHS compliance

Technical Indexes

Type	Passive POE power supply
Input Voltage	12-57Vdc
Input Current	1.5A max
Input Type	Passive
Output Voltage / Power	12-57Vdc, 1.5A max
Output type	Single output 8RJ45 connector ---POE 8RJ45 connector ----LAN
Ethernet speed	10/100Mbps Pin 45+78-, 2 pairs
Internet standard	NO Compliance IEEE802.3AF/802.3AT
Material	Plastic
Approval	CE/ROHS/FCC
Warranty	3 year
Output Ripple	1% Max
Efficiency	≥80%
Response Time	<1ns
Combined Load Regualtion	±3%
Combined Line Regualtion	±5%
LED indicator	Power on, Green (With Plastic enclosure)
Operating Temp	0 to 40℃ (32 to 104℉)
Storage Temp	(-)20 to 85 ℃ ( -22 to 158 ℉)
Dimension	1706030 mm
Weight	0.5kg
Operating Humidity	10~ 90% Non condensing
