1000M Fiber Optic LAN Card
1000M Fiber Optic LAN Card Overview

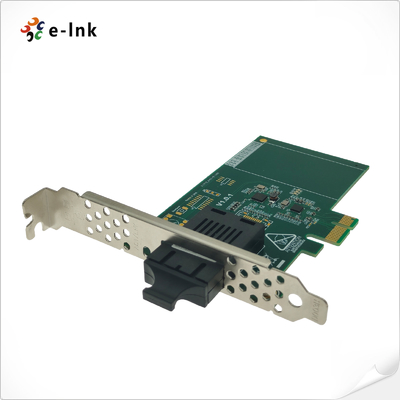

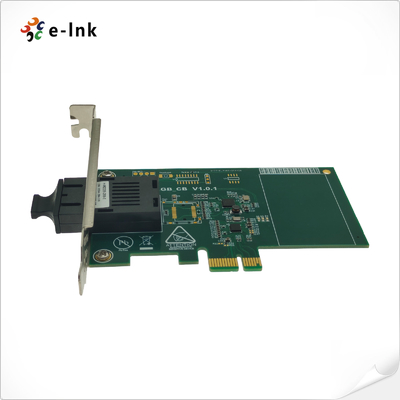

The E-Link LNK-LC1000 series is a high-performance single-port gigabit fiber PCI-E network interface
card (NIC) available with either a fixed SC connector or a versatile SFP interface. Compliant
with IEEE 802.3z and 1000Base-SX/LX standards, it delivers robust 1000 Mbps connectivity
and up to 2000 Mbps full-duplex bandwidth, eliminating server bottlenecks and supporting
high-end applications. The NIC supports single-mode and duplex fiber options and features
advanced hardware acceleration for TCP/UDP/IP checksum offload and segmentation.
This significantly frees up host CPU resources. With VLAN filtering, Jumbo Frame support,
and a comprehensive management suite for fault tolerance and load balancing, the E-Link
LNK-LC1000 Series offers a flexible, secure, and cost-effective solution for migrating to Gigabit fiber
networks. With broad driver support for various operating systems and compatibility with
standard PCI-E buses, the E-Link LNK-LC1000 Series ensures reliable performance in diverse server
and networking environments.
1000M Fiber Optic LAN Card Features
► Plug and Play
► IEEE 802.3z Gigabit Ethernet 1000Base-SX/LX
► High bandwidth 1000Mbps Network Speed
► Supports Full-Duplex Mode
► Compliant to ACPI 2.0 specification
► IEEE 802.3x Full-Duplex Flow Control
► IEEE 802.1Q VLANs
► IEEE 802.1p Priority Tagging
► IEEE 802.1p Quality of Service
► IP Multicast Filtering
1000M Fiber Optic LAN Card Technical Indexes
|
Product Model
|
LNK-LC1000 Series: Single Port Fiber Gigabit PCI-E NIC
|
|
Standards
|
IEEE802.3, IEEE 802.3ab, IEEE 802.3x, IEEE802.1q, IEEE802.1p, IEEE802.1z
|
|
Max Frame Size
|
9216B
|
|
Port Numbers
|
LNK-LC1000-SC Series: SC Connector*1( Duplex Fiber / Single Fiber Optional)
|
|
LNK-LC1000-SFP Series: SFP*1( Duplex Fiber / Single Fiber Optional)
|
|
Media
|
Single Mode Fiber, Multi Mode Fiber
|
|
Transmitting Distance
|
Single Fiber SMF, 1310nm/1550nm(1490nm),20/40/60km
|
|
Duplex Fiber SMF, 1310nm or 1550nm(1490nm), 20/40/60/km
|
|
Duplex Fiber MMF, 850nm, 275~550m
|
|
Data Speed
|
1000Mbits/s (Half duplex), 2000Mbits/s (Full duplex)
|
|
BUS Slot
|
PCI-E x1 Standard Slot
|
|
Consumption
|
Max. 5.3W, +3.3VDC@1.6A
|
|
Ambient Temperature
|
Storage Temperature:-20℃～65℃； Storage humidity:5％～90％ RH Non-condensing
|
|
Operation temperature:0℃～50℃；Operation humidity:10％～90％ RH Non-condensing
|
1000M Fiber Optic LAN Card Ordering Information
|
Model
|
Description
|
|
LNK-LC1000-SC
|
1000M Fiber Optic LAN Card, 850nm, Duplex Fiber, MMF, SC Connector, Transmitting Distance: 550m
|
|
LNK-LC1000-SC-20
|
1000M Fiber Optic LAN Card, 1310nm, Duplex Fiber, SMF, SC Connector, Transmitting Distance: 20Km
|
|
LNK-LCS1000-SC-20
|
1000M Fiber Optic LAN Card, 1310nm TX/1550nm RX, Single Fiber, SMF, SC Connector, Transmitting Distance: 20Km
|
|
LNK-LC1000 -SFP
|
1000M Fiber Optic LAN Card, 1310nm, Duplex Fiber, MMF, SFP*1, Transmitting Distance: 2Km
|
|
LNK-LC1000 -SFP-20
|
1000M Fiber Optic LAN Card, 1310nm, Duplex Fiber, SMF, SFP*1, Transmitting Distance: 20Km
|
|
LNK-LCS1000-SFP-20
|
1000M Fiber Optic LAN Card, 1310nm TX/1550nm RX, Single Fiber, SMF, SFP*1, Transmitting Distance: 20Km
|
After-Sales and Warranty Policy
It is composed of online customer service and telephone customer service, providing product consultation,
remote technical support, maintenance and acceptance services.
Service Policy: Three-month replacement and three-year warranty.
Replacement: Within three months of purchasing a series of products, after testing the product failure
by technicians and man-made damage caused by non-natural disasters, the purchaser can directly
go to the purchasing point to replace the same type of products.Or a product of comparable performance.
If there is no trouble in product testing, the original sample will be returned.
Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.
[The following circumstances do not fall within the scope of replacement and free maintenance]
1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
