100M Fiber Optic LAN Card
100M Fiber Optic LAN Card Overview

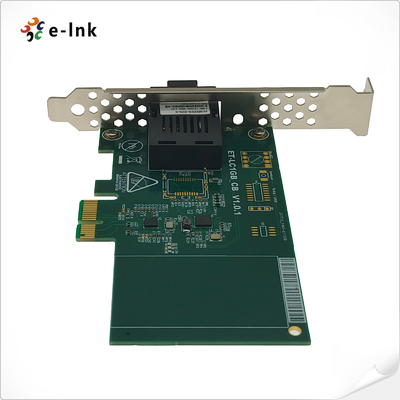

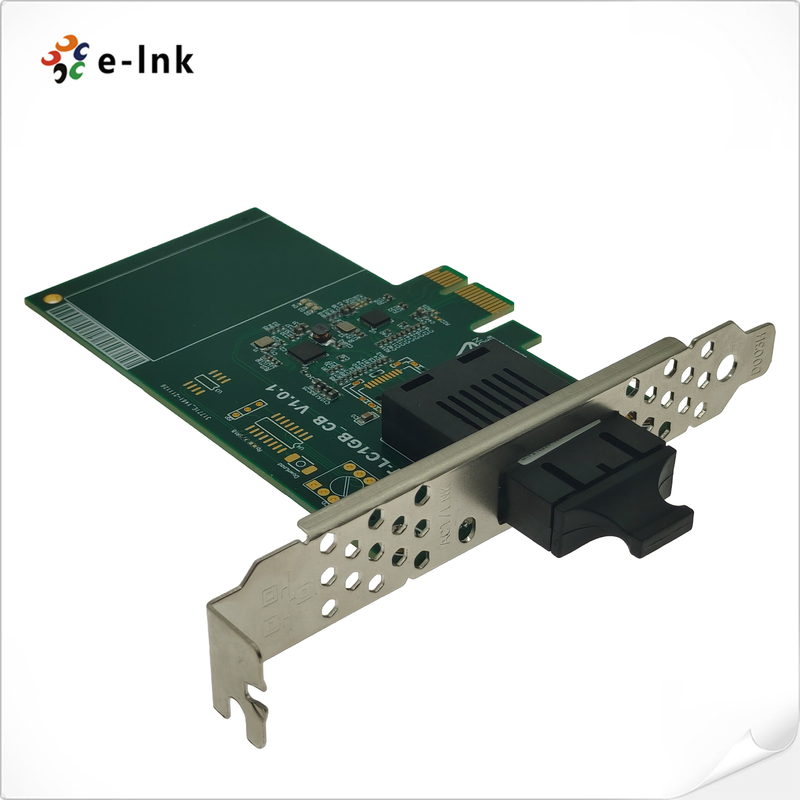

The E-link LNK-LC100 Series is a Single Port 100M Fiber PCI-E Network Interface Card (NIC),
available with either a fixed 1X9 SC connector or a flexible SFP interface. It fully complies with IEEE 802.3u
standards, delivering reliable 100Mbps access and up to 200Mbps full-duplex bandwidth to eliminate
server bottlenecks. This NIC supports both single-mode and duplex fiber options and is equipped
with advanced features like VLAN filtering and packet processing for enhanced security and network
performance. With broad driver support for popular operating systems including Windows 7/8, XP, 2000,
2003, and Server 2008, it offers an easy and cost-effective solution for migrating to 100M fiber networks
or building peer-to-peer configurations.
100M Fiber Optic LAN Card Features
► Plug and Play
► IEEE 802.3 Full-Duplex Flow Control
► IEEE 802.3u 100Base-FX
► High bandwidth 100Mbps Network Speed
► Supports Full-Duplex Mode
► Compliant to ACPI 1.0 specification
► IEEE 802.3 Full-Duplex Flow Control
► IEEE 802.1Q VLAN Tagging
► IEEE 802.1p Priority Tagging
► Management statistics gathering
► IP multicast receive and filter support using 64 bit hash table
100M Fiber Optic LAN Card Technical Indexes
|
Product Model
|
LNK-LC100 Series: Single Port Fiber 100M PCI-E NIC
|
|
Standards
|
IEEE802.3, IEEE 802.3ab, IEEE 802.3x, IEEE802.1q, IEEE802.1p, IEEE802.1z
|
|
TX/RX data buffer
|
Large 2Kb Tx, 2Kb Rx FIFO buffers
|
|
Port Numbers
|
LNK-LC100-SC Series: SC Connector*1( Duplex Fiber / Single Fiber Optional)
|
|
LNK-LC100-SFP Series: SFP*1( Duplex Fiber / Single Fiber Optional)
|
|
Media
|
Single Mode Fiber, Multi Mode Fiber
|
|
Transmitting Distance
|
Single Fiber SMF, 1310nm/1550nm(1490nm),20/40/60km
|
|
Duplex Fiber SMF, 1310nm or 1550nm(1490nm), 20/40/60/km
|
|
Duplex Fiber MMF, 850nm, 2Km
|
|
Data Speed
|
100Mbits/s (Half duplex), 200Mbits/s (Full duplex)
|
|
Host Interface
|
PCI 2.2 Specifications
|
|
Consumption
|
Max. 2W, +5VDC@0.4A
|
|
Ambient Temperature
|
Storage Temperature:-20℃～65℃； Storage humidity:5％～90％ RH Non-condensing
|
|
Operation temperature:0℃～50℃；Operation humidity:10％～90％ RH Non-condensing
|
100M Fiber Optic LAN Card Ordering Information
|
Model
|
Description
|
|
LNK-LC100-SC
|
100M Fiber Optic LAN Card, 1310nm, Duplex Fiber, MMF, SC Connector, Transmitting Distance: 2Km
|
|
LNK-LC100-SC-20
|
100M Fiber Optic LAN Card, 1310nm, Duplex Fiber, SMF, SC Connector, Transmitting Distance: 20Km
|
|
LNK-LCS100-SC-20
|
100M Fiber Optic LAN Card, 1310nm TX/1550nm RX, Single Fiber, SMF, SC Connector, Transmitting Distance: 20Km
|
|
LNK-LC100-SFP
|
100M Fiber Optic LAN Card, 1310nm, Duplex Fiber, MMF, SFP*1, Transmitting Distance: 2Km
|
|
LNK-LC100-SFP-20
|
100M Fiber Optic LAN Card, 1310nm, Duplex Fiber, SMF, SFP*1, Transmitting Distance: 20Km
|
|
LNK-LCS100-SFP-20
|
100M Fiber Optic LAN Card, 1310nm TX/1550nm RX, Single Fiber, SMF, SFP*1, Transmitting Distance: 20Km
|
