PCI-Express 10/100/1000M Gigabit Copper Network Card (Intel I210 Based)
Gigabit PCI-Express Network Card Overview

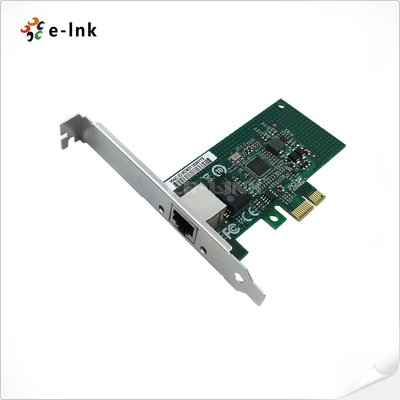

The LNK-C9204CT is a high-performance PCI Express x1 Gigabit Ethernet network adapter
designed for desktop systems. It is built on the reliable Intel I210 controller. This compact adapter
provides full Gigabit speed without sacrificing performance, making it an ideal upgrade for home offices,
businesses, and point-of-sale systems.
It incorporates advanced Ethernet power management technologies, such as Energy Efficient Ethernet (EEE)
and DMA coalescing, to reduce power consumption. With four dedicated transmit and receive queues,
the adapter efficiently manages network traffic, minimizing latency for a responsive user experience.
Error correction and memory protection features ensure highly reliable and stable data transmission.
Its compatibility with existing Ethernet and Fast Ethernet networks allows for seamless integration
and significantly reduces deployment complexity and costs.
Gigabit PCI-Express Network Card Features
-
Single-port 10/100/1000Mbps Gigabit Ethernet adapter
-
PCI Express (PCIe) 2.1, x1 lane, 2.5 GT/s interface
-
RJ45 copper connectivity
-
Low-cost, low-power design with advanced energy-saving features
-
Supports Wake-on-LAN (WOL) and PXE remote boot
-
IEEE 802.3az Energy Efficient Ethernet (EEE)
-
Advanced Power Management (APM) and MAC power management controls
-
Low Power Link Up with link speed control
-
MSI and MSI-X support for optimized interrupt handling
-
High small-packet performance, ideal for network appliances
-

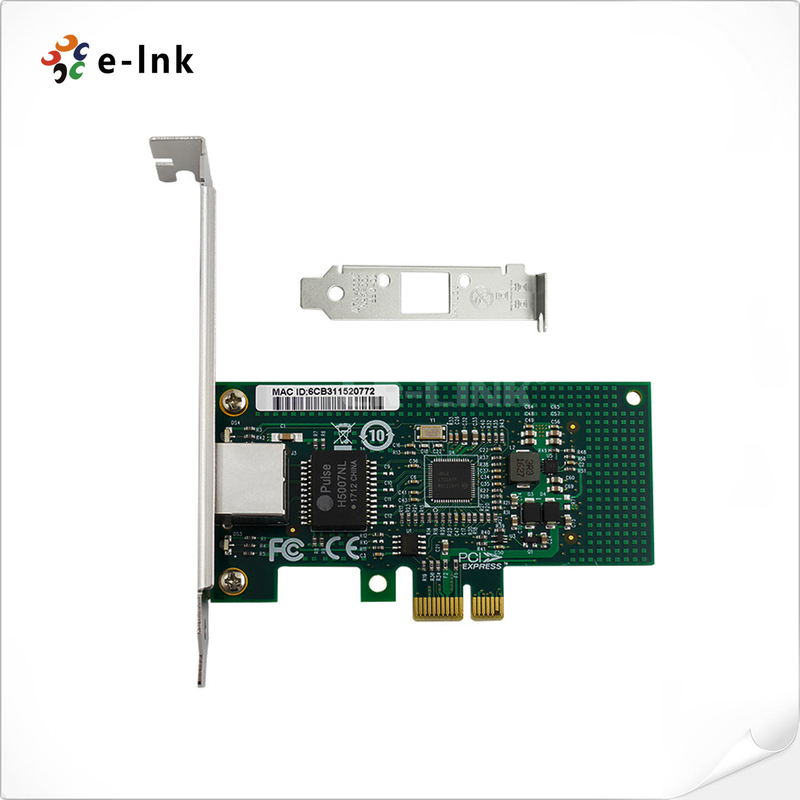

Includes both low-profile and full-height brackets
Gigabit PCI-Express Network Card Technical Indexes
|
Networking
|
|
Standards:
|
IEEE 802.3 10BASE-T
|
|
IEEE 802.3u 100BASE-TX
|
|
IEEE 802.3ab 1000BASE-T
|
|
IEEE 802.3x Flow control auto-negotiation
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE)
|
|
IEEE 1588 protocol and 802.1AS implementation
|
|
IEEE 802.1p Quality of Service priority control
|
|
PCI-E 1.0 complaint
|
|
NOS Software Support:
|
Windows 2000
|
|
Windows XP 32-bit (64-bit)
|
|
Windows Server 2003 32-bit ( 64-bit) Windows Vista 32-bit (64-bit)
|
|
Windows 7 32-bit (64-bit)
|
|
Windows 8 32-bit (64-bit)
|
|
Windows 10 32-bit (64-bit)
|
|
Windows Server 2008 32-bit (64-bit) Windows Server 2008 R2 32-bit (64- bit)
|
|
Windows Server 2012 32-bit (64-bit) DOS, Novell ODI
|
|
Novell Netware 5.x, 6.x
|
|
Linux 2.4 series kernel and 2.6.x, 3.x
|
|
FreeBSD 7.x and later
|
|
UnixWare / OpenUNIX 8
|
|
Sun Solaris x86
|
|
VMWare
|
|
Controller:
|
Intel I210
|
|
Transmission rate
|
10/100/1000Mbps
|
|
Twisted-pair
|
1000BASE-T: Cat 5e or higher up to 100m
100BASE-Tx: Cat5/5e/6 or higher up to 100m
10BASE-T: Cat3/4/5/5e/6 or higher up to 100m
|
|
Jumbo Frame Support:
|
Up to 9.5 KB
|
|
Network Virtualization
|
PXE
|
|
Interface
|
|
Connector:
|
1x RJ45
|
|
LED Indicators
|
|
1000Mbps/s
|
Yellow Link and Green Act
|
|
100Mbps/s
|
Green Link and Green Act
|
|
10Mbps/s
|
Not illuminate
|
|
Environmental
|
|
Operating Temperature:
|
0°C to 55°C (32°F to 131°F)
|
|
Storage Temperature:
|
-25°C to 70°C (-13°F to 158°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
Gigabit PCI-Express Network Card Ordering Information
|
Model
|
Description
|
|
LNK-C9204CT
|
PCI Express x1 Single Port Copper Gigabit Ethernet Desktop Adapter Intel I210AT Based
|
