Gigabit Ethernet Fiber PCI-Express Network Adapters (Intel 82576 Based)
Gigabit Ethernet Fiber PCI-Express Network Adapters Overview

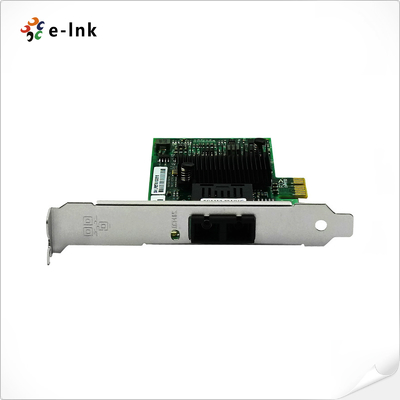

The LNK-C9260PF is a high-performance Gigabit PCIe fiber optic network card engineered for
secure and reliable Fiber-to-the-Desktop (FTTD) networks. Built on the proven Intel 82576EB
chipset, this adapter delivers optimized performance to eliminate system I/O bottlenecks in
demanding network applications.

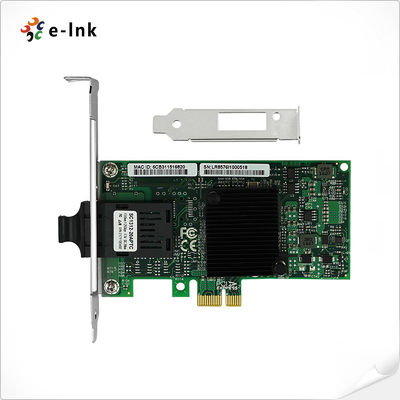

Its PCIe x1 interface offers broad compatibility with x1, x8, and x16 slots, and includes a low-profile
bracket for versatile installation in various chassis. A key feature is advanced teaming functionality,
which enables fault tolerance and load balancing to ensure non-stop, uninterrupted network
communications. The card boasts exceptional noise immunity, ideal for electrically noisy environments.
Furthermore, it is powered by a high-efficiency Texas Instruments power management controller,
ensuring cool operation, superior stability, and enhanced reliability for continuous Gigabit Ethernet performance.
Gigabit Ethernet Fiber PCI-Express Network Adapters Features
- PCIe (PCI-Express) 2.0, x1 lane, 2.5 GT/s interface
- Single-port 1000Mbps Gigabit Ethernet adapter
- Supports IEEE 802.1x flow control and IEEE 802.1p traffic prioritization
- PXE 2.1 and iSCSI remote boot support
- Network Virtualization and load balancing across multiple CPUs
- Plug-and-play installation for easy deployment
- Compatible with most network operating systems (NOS)
- SNMP and RMON statistic counters for network management and monitoring
- Available with LC, SC, or ST fiber connections
- Includes both low-profile and full-height brackets
Gigabit Ethernet Fiber PCI-Express Network Adapters Technical Indexes
|
Networking
|
|
Standards:
|
IEEE 802.3ab 1000BASE-T
|
|
IEEE 802.3z 1000BASE-SX/LX
|
|
IEEE 802.3x Flow control auto-negotiation
|
|
IEEE 802.1q VLAN tagging
|
|
GVRP VLAN registration protocol
|
|
IEEE 802.1p Quality of Service priority control
|
|
PCI-E 1.0 complaint
|
|
ACPI 2.0 power manage functions
|
|
NOS Software Support:
|
Windows 2000
|
|
Windows XP 32-bit (64-bit)
|
|
Windows Server 2003 32-bit ( 64-bit) Windows Vista 32-bit (64-bit)
|
|
Windows 7 32-bit (64-bit)
|
|
Windows 8 32-bit (64-bit)
|
|
Windows 10 32-bit (64-bit)
|
|
Windows Server 2008 32-bit (64-bit) Windows Server 2008 R2 32-bit (64- bit)
|
|
Windows Server 2012 32-bit (64-bit) DOS, Novell ODI
|
|
Novell Netware 5.x, 6.x
|
|
Linux 2.4 series kernel and 2.6.x, 3.x
|
|
FreeBSD 7.x and later
|
|
UnixWare / OpenUNIX 8
|
|
Sun Solaris x86
|
|
VMWare
|
|
Controller:
|
Intel82576EB
|
|
Transmission rate
|
1000Mbps
|
|
Jumbo Frame Support:
|
Up to 9.5 KB
|
|
Network Virtualization
|
VXLAN, MACinUDP, NVGRE, IPinGRE
|
|
Interface
|
|
Connector:
|
1x RJ45
|
|
Optical Port:
|
1 x 1000M Fiber (SC (default), LC, ST, MT-RJ)
|
|
LED Indicators
|
|
Link/ACT
|
1000Mbps/s:Link Green constant, ATC Yellow blink
|
|
Environmental
|
|
Operating Temperature:
|
0°C to 55°C (32°F to 131°F)
|
|
Storage Temperature:
|
-25°C to 70°C (-13°F to 158°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
Advantages
|
|
Use the 6-layer PCB, double copper thickness,5OZ heavy gold plate Optimize designation, improved the distribution line and integral network arrangement
Use the high-power control
Use the USA Marvell original photoelectric controller
Improved the functions and quality
|
Gigabit Ethernet Fiber PCI-Express Network Adapters Ordering Information
|
Model
|
Description
|
|
LNK-C9260PF-SFP
|
Intel 82576EB PCIe x1 1000Base-X Single Port SFP Fiber Desktop Adapter, not including SFP modules
|
|
LNK-C9260PF
|
Intel 82576EB PCIe x1 1000Base-SX Single Port SC Fiber Desktop Adapter, MM 550m
|
|
LNK-C9260PF-20
|
Intel 82576EB PCIe x1 1000Base-LX Single Port SC Fiber Desktop Adapter, SM 20km
|
|
LNK-C9260PF-20S
|
Intel 82576EB PCIe x1 1000Base-LX Single Port BIDI SC Fiber Desktop Adapter, SM 20km
|
After-Sales and Warranty Policy
It is composed of online customer service and telephone customer service, providing product consultation,
remote technical support, maintenance and acceptance services.
Service Policy: Three-month replacement and three-year warranty.
Replacement: Within three months of purchasing a series of products, after testing the product failure
by technicians and man-made damage caused by non-natural disasters, the purchaser can directly
go to the purchasing point to replace the same type of products.Or a product of comparable performance.
If there is no trouble in product testing, the original sample will be returned.
Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.
[The following circumstances do not fall within the scope of replacement and free maintenance]
1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
