Fast Ethernet Fiber PCI-Express Network Adapters (Intel 82574 Based)
PCI-Express Network Adapters Overview

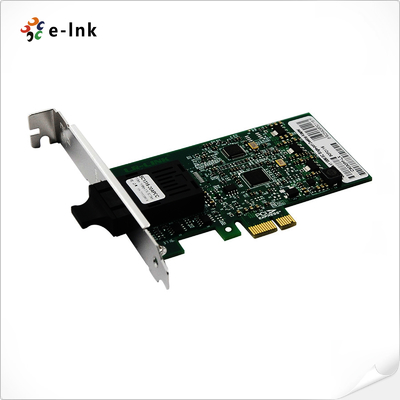

The LNK-C9030PF-LX is a reliable 100 Mbps PCIe fiber optic network card designed for secure
and stable fiber-to-the-desktop (FTTD) and fiber-to-the-home (FTTH) networks. It overcomes
the 100-meter distance limitation of traditional copper cabling, such as Cat5e, and provides a robust
optical link that is ideal for extending network access to remote points of presence (PoPs).
With a standard 1x9 optical transceiver slot, the card offers exceptional flexibility. Users can select
and install the specific SFP optical module that best suits their needs, choosing between single-mode
or multi-mode fiber, various connector types (SC, LC, etc.), and different transmission distances.
This design provides a superior, integrated alternative to external media converters, delivering more
secure, reliable, and streamlined connectivity for demanding environments.
PCI-Express Network Adapters Features
-
PCIe x1 interface, fully compliant with PCI-Express standards
-
Supports 100Mbps Fast Ethernet, full-duplex (200Mbps aggregate) or half-duplex modes
-
IEEE 802.3x flow control and IEEE 802.1x traffic control
-
IEEE 802.1p-based traffic prioritization and priority queue support for QoS
-
IEEE 802.1Q VLAN tagging for network segmentation
-
PXE 2.1 remote boot support for easy deployment
-
Plug-and-play installation for quick setup
-
Available with LC, SC, or ST fiber connectors
-
Unicast, broadcast, and multicast address filtering for efficient traffic handling
-
IP multicast packet filtering to reduce host CPU utilization
PCI-Express Network Adapters Technical Indexes
|
Networking
|
|
Standards:
|
IEEE 802.3u Fast Ethernet
|
|
IEEE 802.3u 100BASE-FX
|
|
IEEE 802.3x Flow control auto-negotiation
|
|
IEEE 802.1q VLAN tagging
|
|
GVRP VLAN registration protocol
|
|
IEEE 802.1p Quality of Service priority control
|
|
PCI-E 1.0 complaint
|
|
ACPI 2.0 power manage functions
|
|
NOS Software Support:
|
Windows 2000
|
|
Windows XP 32-bit (64-bit)
|
|
Windows Server 2003 32-bit ( 64-bit) Windows Vista 32-bit (64-bit)
|
|
Windows 7 32-bit (64-bit)
|
|
Windows 8 32-bit (64-bit)
|
|
Windows 10 32-bit (64-bit)
|
|
Windows Server 2008 32-bit (64-bit) Windows Server 2008 R2 32-bit (64- bit)
|
|
Windows Server 2012 32-bit (64-bit) DOS, Novell ODI
|
|
Novell Netware 5.x, 6.x
|
|
Linux 2.4 series kernel and 2.6.x, 3.x
|
|
FreeBSD 7.x and later
|
|
UnixWare / OpenUNIX 8
|
|
Sun Solaris x86
|
|
VMWare
|
|
Controller:
|
Intel 82574L
|
|
Transmission rate
|
100M
|
|
Jumbo Frame Support:
|
Up to 9.5 KB
|
|
Network Virtualization
|
VXLAN, MACinUDP, NVGRE, IPinGRE
|
|
Interface
|
|
Connector:
|
1x RJ45
|
|
Optical Port:
|
1 x 100M Fiber (SC (default), LC, ST, MT-RJ)
|
|
LED Indicators
|
|
Link/ACT
|
Green Blinking:100M
|
|
Environmental
|
|
Operating Temperature:
|
0°C to 55°C (32°F to 131°F)
|
|
Storage Temperature:
|
-25°C to 70°C (-13°F to 158°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
Advantages
|
|
Use the 6-layer PCB, double copper thickness,5OZ heavy gold plate Optimize designation, improved the distribution line and integral network arrangement
Use the high-power control
Use the USA Marvell original photoelectric controller
Improved the functions and quality
|
PCI-Express Network Adapters Technical Features
|
Model
|
Description
|
|
LNK-C9030PF-SFP
|
Intel 82574L PCIe x1 100Base-FX Single Port SFP Fiber Desktop Adapter, not including SFP modules
|
|
LNK-C9030PF
|
Intel 82574L PCIe x1 100Base-FX Single Port SC Fiber Desktop Adapter, MM 2KM
|
|
LNK-C9030PF-20
|
Intel 82574L PCIe x1 100Base-FX Single Port SC Fiber Desktop Adapter, SM 20KM
|
|
LNK-C9030PF-20S
|
Intel 82574LPCIe x1 100Base-LX Single Port BIDI SC Fiber Desktop Adapter, SM 20KM
|
