DVI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender
DVI Fiber Optic Extender Overview
This fiber optic extender enables long-distance transmission of DVI signals over a single optical fiber,
supporting resolutions up to 1080p and offering KVM control, RS232, GPIO signal transmission,
and external audio transmission. With excellent stability and security, it's suitable for a variety of
applications requiring high-quality, high-definition signal transmission over long distances, such as
video conferencing, broadcast television, medical imaging, security surveillance, and multimedia presentations.
DVI Fiber Optic Extender Features
► Transmits DVI video signals, RS232 and audio up to 20km over a single fiber cable;
► Support resolution up to 1920*1200@60Hz ;
► Special support 1600*1200 @60HZ
► Support external bidirectional stereo audio transmission;
► Compliance with DVI 1.0 and HDCP 1.2 standard;
► High compatibility, can auto-match source and display device;
► Built-in automatic adjustment system, make the image smooth, clear and stable;
► Built-in ESD protection system;
► Simple to install, plug and play;

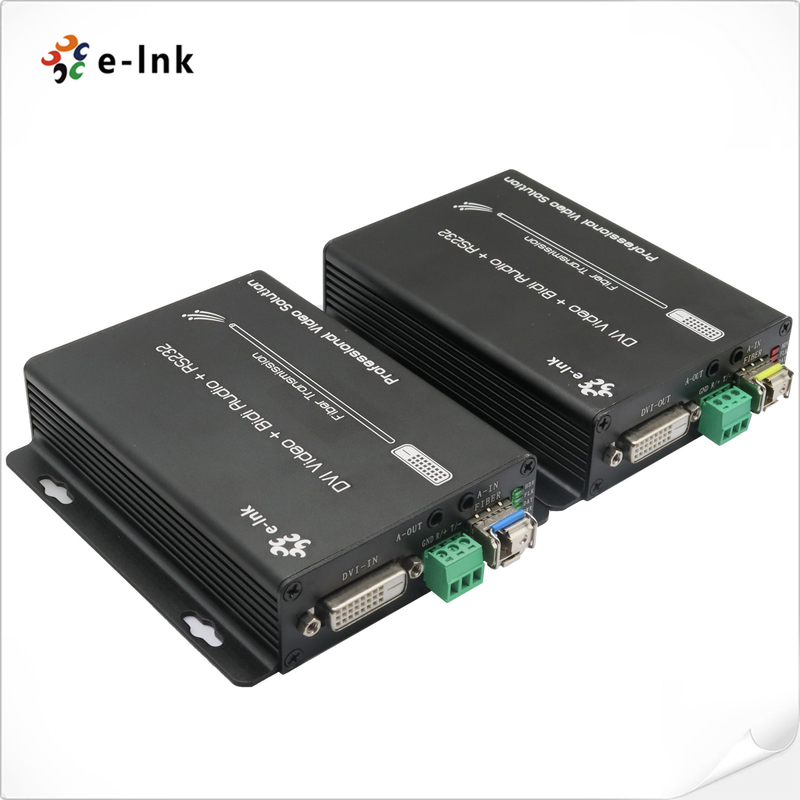

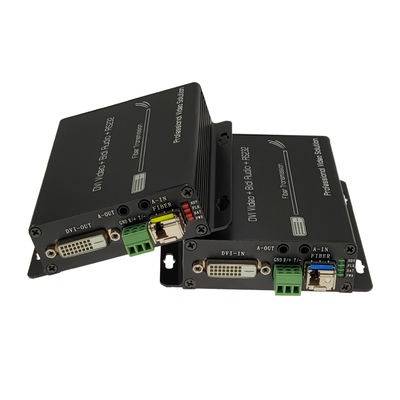

DVI Fiber Optic Extender Panel & Interface
DVI Fiber Optic Extender Technical Indexes
| Parameter |
Description |
|
Video
|
Standards |
DVI 1.0 and HDCP 1.2 |
| Maximum pixel clock |
165MHz |
| Maximum data rate |
2.97Gbps |
| Compliant |
1080P@50/59.95/60Hz( Max 1920*1200@60Hz) 1080P@23.98/24/29.97/30Hz,
1080i@50/59.94/60/Hz,
720P@23.98/24/29.97/30Hz,
720P@50/59.94/60Hz
Special support 1600*1200 @60HZ
|
| Connector |
Female DVI-D |
| Impedance |
100Ω |
| DVI Cable Range |
<5Meter (Resolution up to 1920*1200@60Hz) |
| Audio |
Interface |
3.5MM external stereo audio |
| Transmitter |
1Ch Input + 1Ch Output |
| Receiver |
1Ch Input + 1Ch Output |
| RS232 |
Interface |
3-Pin Terminal Block |
| Baud Rate |
≤115200 |
| Data Bits |
8 bits |
| Optical fiber |
Interface |
SFP model – LC connector |
| Fiber type |
Single-mode |
| Wavelength |
850nm/1310nm/1550nm |
| Interface bandwidth |
3Gbps |
| Transmission distance |
Multi-mode fiber: <500M
Single-mode fiber: 0~80km
|
| Other |
Power supply |
The power adapter: DC 5V |
| Power dissipation |
MAX 4W |
| Temperature |
Operating: -20℃ ~ +70℃ |
| Humidity |
Operating: 5% ~ 90% |
| Dimension (LxWxH) |
120 x 83 x 28 (mm) |
DVI Fiber Optic Extender Dimension & Size
DVI Fiber Optic Extender Application
