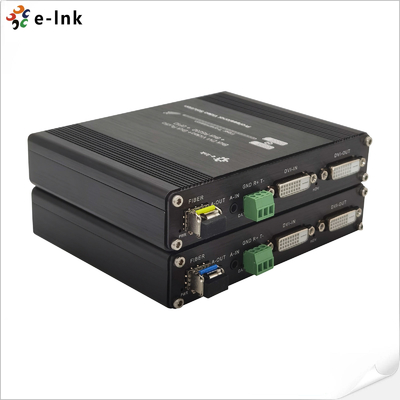

Bidirectional DVI Fiber Extender with RS232 Audio GPIO 1080P up to 20km

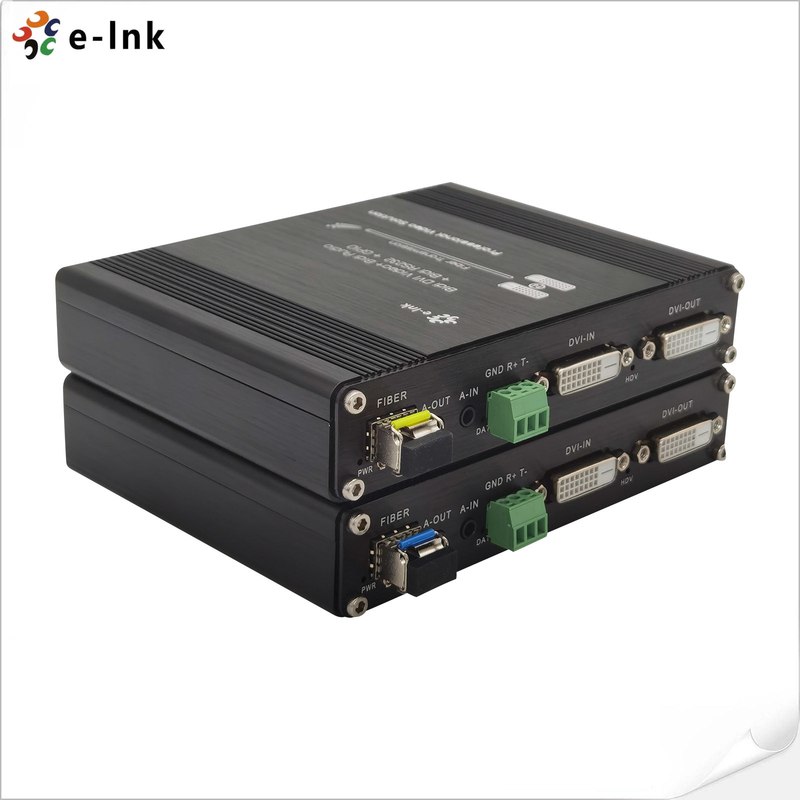

Large Image : Bidirectional DVI Fiber Extender with RS232 Audio GPIO 1080P up to 20km

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-B-DVI-1DA1GO

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	$259-$279
Packaging Details:	DVI Over Fiber Optic Extender Standard Export Package
Delivery Time:	3-5 working days
Payment Terms:	T/T, Western Union, MoneyGram, Paypal
Supply Ability:	1000pcs/Month

Contact Now

Detailed Product Description

Video:	DVI 1.0, HDCP 1.2 \| Max 1920×1200 @60Hz	Data Rate:	2.97Gbps \| Pixel Clock 165MHz
Audio:	Stereo, Bi-directional \| 3.5mm Jack	Fiber:	LC Connector \| SM Single Fiber \| 1310nm Wavelength
Distance:	Standard 10km \| Up To 20km Transmission	Size:	148 × 115 × 28 Mm \| Compact Metal Case

Bidirectional DVI Fiber Extender with RS232 Audio GPIO 1080P up to 20km

Overview

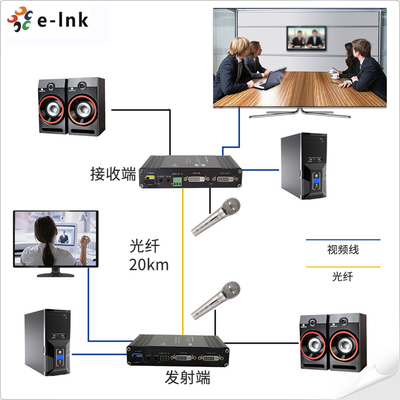

The LNK-B-DVI-1DA1GO Fiber Optic Extender delivers two-way transmission of DVI video,

RS232 control, stereo audio, and GPIO signals over a single optical fiber up to 20km. Supporting

resolutions up to 1920×1200 @60Hz, it provides stable image performance with built-in automatic

adjustment and ESD protection. Its plug-and-play design ensures quick setup and reliable operation,

making it ideal for control rooms, AV integration, medical imaging, and industrial automation.

Features

Two-way DVI video transmission up to 20km via single-mode fiber

Supports resolutions up to 1920×1200 @60Hz (1080P full HD)

Bi-directional RS232 control with adaptive baud rate (≤115200bps)

Stereo audio transmission with 3.5mm interface (full duplex)

GPIO signal support for industrial and automation applications

Compliant with DVI 1.0 & HDCP 1.2 standards

Auto-adjustment system delivers smooth and clear images

Integrated ESD protection for system stability

Compact housing, low power (<6W), plug-and-play installation

Technical Indexes

Parameter		Description
Video	Standards	DVI 1.0; HDCP 1.2
	Maximum pixel clock	165MHz
	Maximum data rate	2.97Gbps
	Resolution	19201200@60Hz 19201080@50Hz 19201080@30Hz 19201080@25Hz 19201080@24Hz 1080I@60Hz 1080I@50Hz 1280720@60Hz 1280*720@50Hz
	Connector	DVI-D
	Impedance	100Ω
Audio	Interface	3.5mm earphone seat
Audio	Signal type	Stereo
GPIO	Interface	Industrial terminal
RS232	Interface	Industrial terminal
	Signal direction	Bi-directional
	Baud rate	Self-adaptive, Max:115200bps
	Data bits	8
Optical fiber	Interface	LC connector
	Fiber type	Single-mode single fiber
	Wavelength	Single-mode 1310nm
	Interface bandwidth	3Gbps
	Transmission distance	standard 10km
Other	Power supply	The power adapter: DC 12V/1A
	Power dissipation	MAX 6W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension (LxWxH)	14811528mm
	The warranty	1-year warranty
