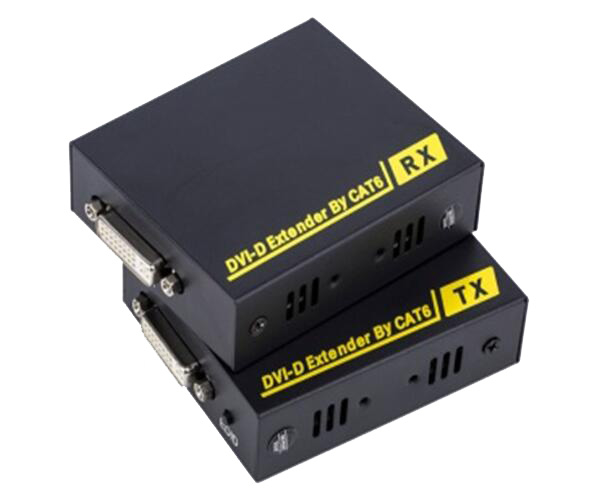

DVI Over Ethernet Extender High Resolution CAT5e CAT6 Cable

DVI Over Ethernet Extender High Resolution CAT5e CAT6 Cable
DVI Over Ethernet Extender High Resolution CAT5e CAT6 Cable

Large Image :  DVI Over Ethernet Extender High Resolution CAT5e CAT6 Cable

Product Details:
Place of Origin: China
Brand Name: E-link
Certification: ISO9001, CE, RoHS, FCC
Model Number: LNK-DVI001
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD $59-79
Packaging Details: DVI over Ethernet Extender Standard Export Package
Delivery Time: 2~7 working days
Payment Terms: Paypal,TT,Western Union,MoneyGram,Alipay,T/T,D/P,D/A,L/C
Supply Ability: 2000pcs per month
Detailed Product Description
HDTV Resolutions: 480p,576p,720p,1080p DVI: DVI 1.0
Power Adapter: Input: 100V - 240V (50 - 60Hz) Power Consumption: DVI Sender/Receiver: 3W
Dimensions (WxDxH): 100×60×25mm Weight: 128g*2PCS

DVI Video Extender over CAT5 / 6 Kit


DVI Video Extender Overview


The DVI Over Ethernet Extender uses the TCP/IP standard to transmit high-definition video signals

up to 198 feet (60 meters) via a single CAT5e/6 cable. Supporting high-resolution displays,

it allows for seamless extension to multiple screens via an Ethernet switch, offering flexibility and scalability

for professional and home setups.


DVI Video Extender Features


► Fully compliant with TCP/IP standard
► Supports DVI 1.0 protocol
► Compatible with HDCP 1.1 & 1.2 protocols
► Flexible transmission modes: point-to-point, one-to-many, and cascade connection


DVI Video Extender Technical Indexes


HDTV Resolutions

480p,576p,720p,1080p

Audio

Sample rate:32kHz, 44.1kHz and 48kHz

DVI

DVI 1.0

HDCP

HDCP1.2

Power adapter

Input: 100V - 240V (50 - 60Hz)   Output: 5V/1A

Power consumption

DVI Sender: 3W   DVI Receiver: 3W

Size(L-W-H)

100×60×25mm

Weight

128g*2PCS

Operating Temperature/Humidity

0  - 70  / 10% - 80%RH(no condensation)

Storage Temperature/Humidity

-10  - 80/ 5% -90% RH(no condensation)


DVI Video Extender Application


DVI Over Ethernet Extender High Resolution CAT5e CAT6 Cable 0

After-Sales and Warranty Policy


It is composed of online customer service and telephone customer service, providing product consultation,

remote technical supportmaintenance and acceptance services.

Service Policy: Three-month replacement and three-year warranty.

Replacement: Within three months of purchasing a series of products, after testing the product failure

by technicians and man-made damage caused by non-natural disasters, the purchaser can directly

go to the purchasing point to replace the same type of products.Or a product of comparable performance.

If there is no trouble in product testing, the original sample will be returned.

Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.


[The following circumstances do not fall within the scope of replacement and free maintenance]


1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
