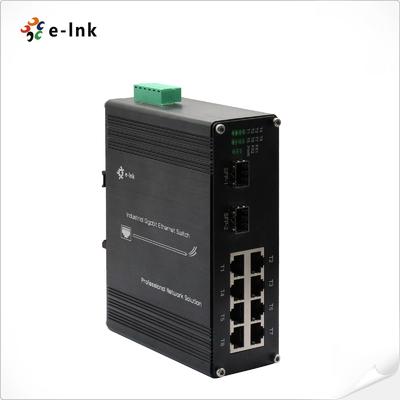

Din Rail Ethernet POE 8 TP Ports and 2 Fiber Ports SFP, SC, FC, ST Optional Fiber Ethernet Switch

Industrial 8-port 10/100Base-T + 2-port 100BASE-FX Ethernet Switch
Overview
The LNK-IMC208 Series is a hardened industrial Ethernet switch that delivers robust network
connectivity for demanding environments. Featuring 8×10/100Base-TX copper ports and
8×100Base-FX fiber ports, this high-density switch provides flexible deployment options for
both copper and fiber networks.
Key features include:
- RJ45 copper ports supporting 10/100Mbps auto-negotiation, full/half-duplex operation, and
auto MDI/MDI-X crossover
- Fiber optic ports compatible with single-mode or multi-mode fiber (1 or 2 core) for extended
reach up to 2km (multi-mode) or 20km/40km (single-mode)
- Industrial-grade reliability with wide operating temperature range and hardened construction
Designed for mission-critical applications, the LNK-IMC208 is ideal for:
- Industrial automation control systems
- Large-scale IP surveillance networks
- Distributed wireless access point deployments
- Remote site connectivity solutions
With its high port density and dual-media connectivity, this switch offers exceptional flexibility for
creating resilient network infrastructures in harsh environments. The ruggedized design ensures
reliable operation while the fiber optic ports provide electrical isolation and noise immunity for stable
long-distance communications.
Features

► SFP, SC, FC, ST Optional

► Supports 802.3x Flow control

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► Redundant Power Inputs

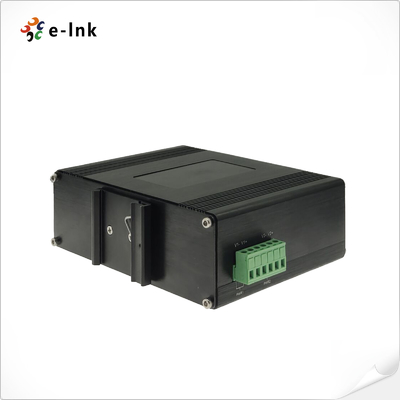

► Supports Wall-mount and DIN-Rail installation

► -40°C to 80°C (-40°F to 176°F) operating temperature

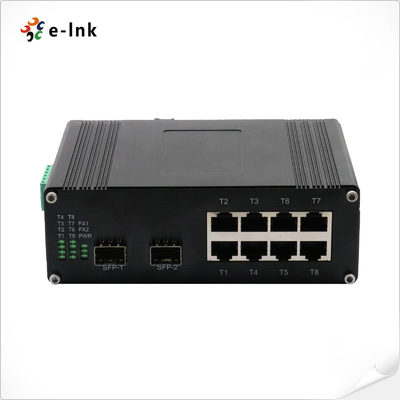

► 8 10/100Base-TX + 2 100Base-FX
            ►10/100Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

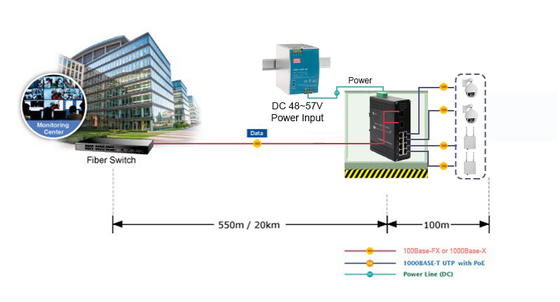

Application





















Technical Indexes






















































Ordering Information
