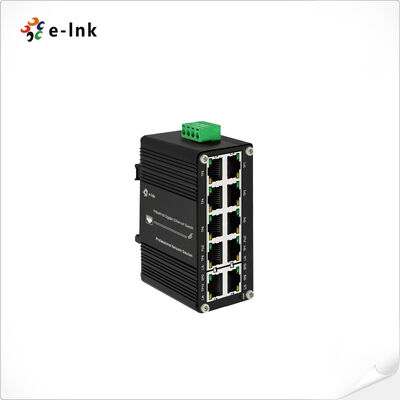

Mini Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Compact Ethernet Switch
Mini Industrial PoE Ethernet Switch Overview
The LNK-IMC010GPB is a compact, fanless industrial Ethernet switch engineered for demanding deployments. It delivers robust connectivity with 10 Gigabit RJ45 ports (8 of which support IEEE 802.3at/af PoE+) and an exceptional total PoE budget of up to 240 watts. Designed with a wide 12-48V DC input, redundant power, and high surge protection, it ensures reliable, high-speed data and power delivery in harsh environments from -40°C to 80°C.
Mini Industrial PoE Ethernet Switch Features
High-Power Density: Supports up to 8 PoE+ devices simultaneously with a substantial 240W total power budget.
Industrial Hardened: IP40-rated metal housing, wide operating temperature (-40°C to 80°C), and 8KV surge protection ensure durability.
Flexible Power Input: 12-48V wide-range DC input with reverse polarity protection for versatile power sourcing.
Compact & Efficient: Small footprint (95x88x46mm), fanless design for silent operation, and supports Energy Efficient Ethernet (EEE).
Mini Industrial PoE Ethernet Switch Technical Indexes
|
Ethernet |
|
|
Standards: |
IEEE 802.3 Ethernet |
|
IEEE 802.3u Fast Ethernet |
|
|
IEEE 802.3ab Gigabit Ethernet |
|
|
IEEE 802.3x Full-Duplex Flow Control |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
Forward & Filtering Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
Packet Buffer: |
2Mbits |
|
Packet Length: |
9216bytes |
|
MAC Address Table: |
4K entries |
|
Switch Fabric: |
20Gbps/non-blocking |
|
Switch Throughput (packet per second) |
14.88Mpps@64bytes |
|
Interface |
|
|
Connector: |
10 10/100/1000BASET RJ45 auto-MDI/MDI-X ports 8 ports with 802.3at PoE+ function (Port 1 to 8) |
|
PoE (Power over Ethernet) |
|
|
Standard: |
IEEE 802.3at Power over Ethernet Plus/PSE IEEE 802.3af Power over Ethernet/PSE |
|
Port: |
RJ45 |
|
Power Pin Assignment |
4/5(+), 7/8(-) |
|
PoE Budget: |
Up to 240-watt PoE budget (48V DC), Up to 90-watt PoE budget (24V DC), Up to 60-watt PoE budget (12V DC) |
|
Max. Number of Class 4 PDs |
8 |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 100,000 hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
12~48VDC Redundant power with polarity reverses protection function |
|
Power Consumption: |
<250W (Non-PoE<10W) |
|
Power Input Overload: |
Automatic Resettable |
|
Reverse Polarity: |
Present |
|
Dimensions (WxDxH): |
95 x 88 x 46mm |
|
Weight: |
400g |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail mount |
|
LED Indicators: |
|
|
PWR |
Power |
|
L/A |
Link/Activity |
|
SPD |
Data Rate |
|
PoE |
PoE Status |
|
Regulatory Approvals |
|
|
EMC |
CE (EN55032, EN55035) |
|
EMI |
FCC Part 15 Subpart B |
|
EMS |
EN61000-4-2 (ESD) EN61000-4-3 (RS) |
|
EN61000-4-4 (EFT) EN61000-4-5 (Surge) |
|
|
EN61000-4-6 (CS) EN61000-4-8 (PFMF) EN61000-4-11 |
|
|
Safety |
CE (EN60950-1) |
|
Surge Protection |
8KV for PoE, RJ-45 and SFP ports |
|
Shock |
IEC60068-2-27 |
|
Freefall |
IEC60068-2-32 |
|
Vibration |
IEC60068-2-6 |
Mini Industrial PoE Ethernet Switch Ordering Information
|
Model |
Description |
|
LNK-IMC010GPB |
Mini Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Compact Ethernet Switch |
|
Mounting Options |
► Default DIN-Rail Bracket installed. |
|
Power Options |
► Power Supply is to be purchased separately |
Mini Industrial PoE Ethernet Switch Application
![]()
