Mini Industrial Solar Voltage Booster 1-Port 10/100/1000/2500Base-T 802.3at PoE+ to 1-Port 10G SFP+ Media Converter
Mini Industrial 2.5G Media Converter Overview
The LNK-IMC3012-2.5GP-SFP is a rugged, DIN-rail mounted Industrial Media Converter designed
for extreme environments. It integrates a 10/100/1000/2500BASE-T RJ45 port with IEEE 802.3at 30W PoE+
and a 10G SFP+ fiber uplink. Featuring a unique Solar Voltage Booster, it accepts a wide 12-48V DC input
to deliver stable, high-power PoE output for IoT and AIoT networks.
Mini Industrial 2.5G Media Converter Features
Hardened & Compact: Operates from -40°C to 75°C in an IP40 metal housing (95x70x30mm).
High-Speed Flexibility: Combines 2.5GbE copper with auto-sensing 1G/2.5G/5G/10G SFP+ fiber.

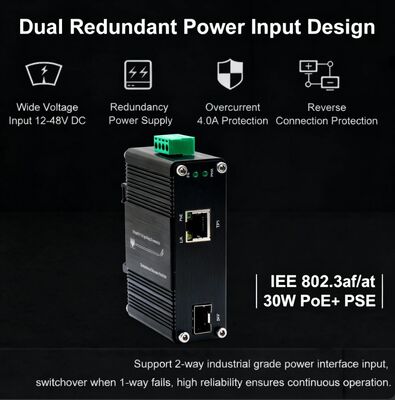

Robust Power Design: Integrated voltage booster supports 12-48V DC input, delivering 30W PoE+ with 6KV surge protection.
Industrial Reliability: DIN-rail/wall-mountable with >200,000 hours MTBF for harsh settings.
Mini Industrial 2.5G Media Converter Technical Indexes
|
Ethernet
|
|
Standards:
|
Standards Compliance IEEE 802.3 Ethernet
|
|
IEEE 802.3u Fast Ethernet
|
|
IEEE 802.3ab Gigabit Ethernet
|
|
IEEE 802.3z Gigabit SX/LX
|
|
IEEE 802.3ae 10 Gigabit Ethernet
|
|
IEEE 802.3x Full-Duplex Flow Control
|
|
IEEE 802.3az Energy Efficient Ethernet
|
|
IEEE 802.1p Class of Service
|
|
IEEE 802.3bz 2.5GBASE-T
|
|
Processing Type:
|
Store-and-Forward
|
|
Forward Filter Rate:
|
14,880pps (10Mbps)
|
|
148,800pps (100Mbps)
|
|
1,488,000pps (1000Mbps)
|
|
22,320,000pps (2.5Gps)
|
|
Packet Buffer Memory:
|
1 Mbit
|
|
Max Packet Length:
|
10K Bytes
|
|
Address Table Size
|
16K MAC Addresses
|
|
Switching Capacity
|
80Gbps/non-blocking
|
|
Interface
|
|
Copper Ports
|
1 x 10/100/1000/2500BASE-T RJ45 with auto MDI / MDI-X function
|
|
Optical Port:
|
1 x 10G SFP+(Backward compatible with 100BASE-FX, 1000BASE-X and 2500BASE-X SFP transceivers) (auto detection)
|
|
PoE (Power over Ethernet)
|
|
Standard:
|
IEEE 802.3af/at PoE+ PSE (af/15.4W,at/30W)
|
|
PoE Power Output
|
30 watts max.
|
|
Power Pin Assignment
|
End-span + Mid-span:1/2(+), 4/5(+), 3/6(-), 7/8(-)
|
|
PoE Budget:
|
Up to 30-watt PoE budget (12V-48V DC)
|
|
PoE Power Supply Type
|
802.3at, End-span + Mid-span (Please contact customer service)
|
|
PoE Mode
|
IEEE802.3at comply Mode B (If need Mode A, please contact customer service)
|
|
Voltage Booster
|
DC 9-12V Input
|
PoE 48V max 30W
|
DC 19-24V Input
|
PoE 48V max 30W
|
|
DC 24-36V Input
|
PoE 48V max 30W
|
DC 48-57V Input
|
PoE 48V max 30W
|
|
Electrical and Mechanical
|
|
Input Power:
|
12~48V DC, 4-pin terminal block
|
|
Output Power
|
48V DC
|
|
Power Consumption:
|
30W Max.
|
|
LED Indicators:
|
|
PWR:
|
Power Status
|
|
L/A:
|
Data LINK Status
|
|
POE:
|
PoE Status
|
|
100M/1000M:
|
Fiber LINK Status
|
|
Dimensions (WxDxH):
|
95 x 70 x 30 mm
|
|
Weight:
|
0.25Kg
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail / Wall-mount
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 75°C (-40°F to 167°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF
|
> 200,000 hrs
|
|
Regulatory Approvals
|
|
ISO9001, CE, FCC, RoHS
|
|
EMI:
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024: 2010
|
|
EMS:
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)
|
Mini Industrial 2.5G Media Converter Ordering Information
|
Model
|
Description
|
|
LNK-IMC3012-2.5GP-SFP
|
Industrial 1-Port 1.25G/2.5G/5G/10G Base-X SFP+ to 1-Port 10/100/1000/2500BASE-T IEEE802.3at 30W PoE+ Media Converter
|
|
SFP Options
|
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
|
|
► SFP module is to be purchased separately.
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
|
|
Power Options
|
► 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block
|
|
► Power Supply is to be purchased separately.
|
Mini Industrial 2.5G Media Converter Application
Industrial IoT Networks: Connects high-power PoE devices (IP cameras, wireless APs, sensors) to fiber backbones in factories, warehouses, and solar farms.
Outdoor & Rugged Deployments: Ideal for transportation, mining, and energy sectors requiring wide-temperature and voltage tolerance.
Network Modernization: Upgrades legacy copper runs to future-proof 2.5G/10G fiber links without replacing existing PoE equipment.
