IEEE802.3af/at Gigabit PoE Splitter with 5VDC Output, Industrial Design

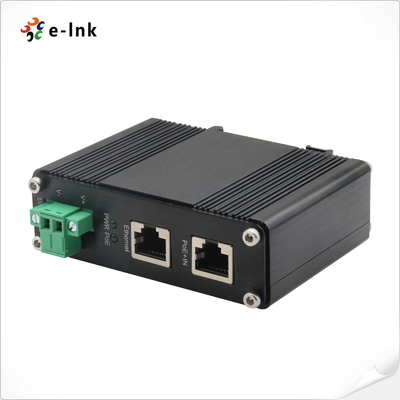

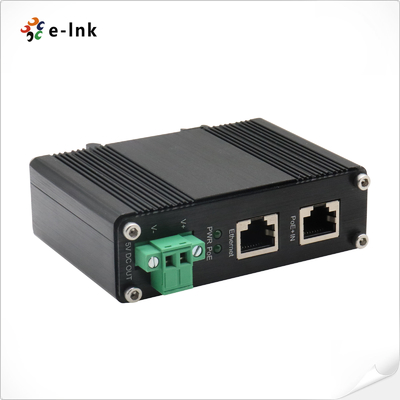

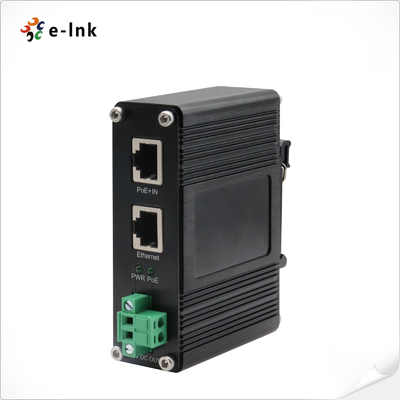

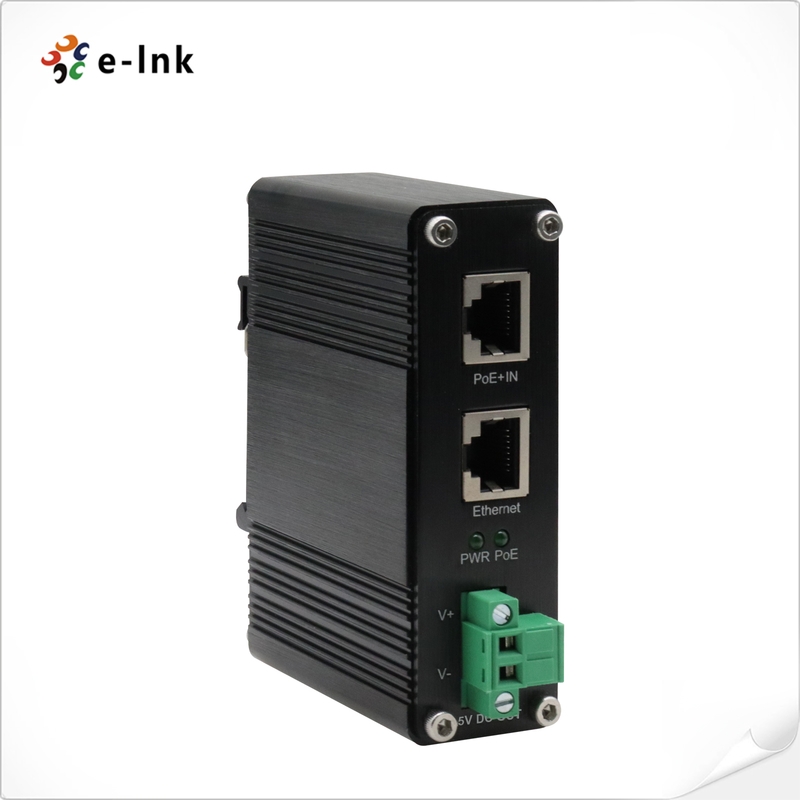

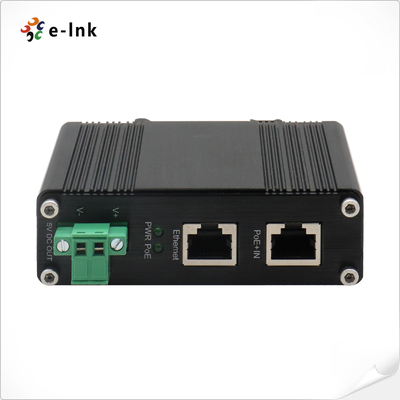

Large Image : IEEE802.3af/at Gigabit PoE Splitter with 5VDC Output, Industrial Design

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE/FCC/Rohs
Model Number:	LNK-INS301-5V

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Negotiation
Packaging Details:	Gigabit Ethernet PoE Splitter Standard export package
Delivery Time:	3-10 working days
Payment Terms:	T/T, L/C, Western Union, MoneyGram
Supply Ability:	2000 per Month

Contact Now

Detailed Product Description

Power Output:	20W 5VDC (Terminal Block)	Power Consumption:	25W Max
Dimensions (WxDxH):	95 X 70 X 30 Mm	Weight:	0.25Kg
Casing:	Aluminum Case	Mounting:	DIN-Rail/Wall-mount

Industrial 10/100/1000Mbps 802.3at PoE+ Splitter Output Voltage 5VDC

Overview
The LNK-INS301-5V is an industrial-grade Gigabit PoE splitter that delivers both data and power to non-PoE devices. It receives power via standard IEEE802.3af/at PoE switches or PoE injectors (e.g., LNK-INJ301), outputting 5VDC through a screw terminal block while transmitting data through an RJ45 Ethernet port at Gigabit speeds. With support for up to 100 meters of transmission, this plug-and-play splitter eliminates the need for separate power lines, offering a cost-effective and reliable solution for industrial edge devices. No software or configuration is required, making installation easy and flexible in harsh environments.

Features

► Splits power and data from PoE Input

► One RJ-45 PoE Port (Data & Power In)

► One RJ-45 Port (Data Out)

► One 5VDC Output (2-pin Terminal Block)

► Support IEEE802.3af/at PoE

► Support 10/100/1000Base-T

► Distance up to 100 meters

► Short-circuit protection for power output

► IP40 rugged metal housing and fanless

► Support DIN-Rail & Wall-mount installation

► Extensive LED indicators for PoE diagnostics

► Wide operating temperature -40 ~ 80°C

Technical Indexes

Ethernet
Standards:	IEEE 802.3 10Base-T Ethernet
	IEEE 802.3u 100Base-TX Fast Ethernet
	IEEE 802.3ab 1000Base-T Gigabit Ethernet
	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
Processing Type:	Forward
Processing Type:	Half-duplex, Full-duplex
Forward Filter Rate:	1,488,000pps (1000Mbps)
Cabling:	1000Base-T: Cat5 or above
Maximum Distance:	Cat5 UTP up to 100m
Interface:	“PoE (Power + Data)” Input Port: 1 x RJ-45 10/100/1000Base-T
	“Data” Out Port: 2 x RJ-45 10/100/1000Base-T
	DC Out/In Plug Connector: 1 removable 5-Pin terminal block
Power over Ethernet
PoE Standard:	IEEE 802.3af/at Power over Ethernet
Number of devices that can be powered:	1 (DC5V) (Vary on device’s power requirement; cannot be over 20 watts.)
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF:	>200,000hrs
Electrical and Mechanical
Power Output:	20W 5VDC (Terminal Block)
Power Consumption:	25W Max.
LED Indicators:
PWR:	5VDC Power OUT
POE:	PoE Power IN
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case

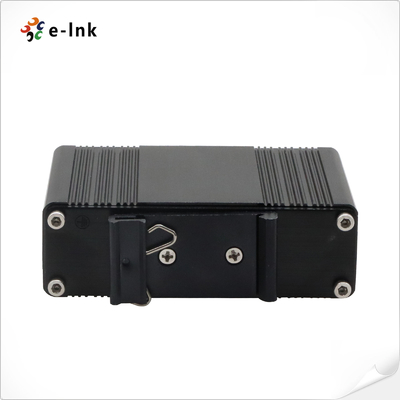

Mounting Options:	DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
FCC part 15, Class A
EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500W
ESD: 4KV/8KV

Ordering Information

Model	Description
LNK-INS301-5V	Industrial IEEE802.3at Gigabit PoE Splitter Output Voltage 5VDC, maximum output of 20W at 5VDC, Support DIN-Rail mounting and Wall mounting installation, -40 to 80°C operating temperature
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
