Gigabit Media Converter IEEE802.3 with Auto-Adaptive Ports Multi-Mode & Single-Mode Up to 120km

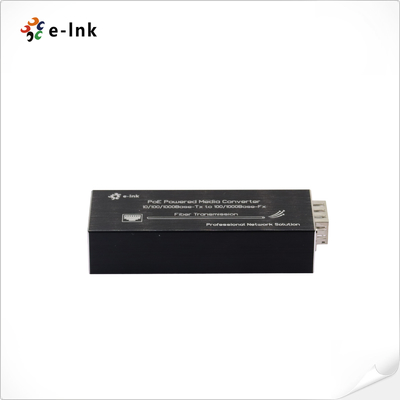

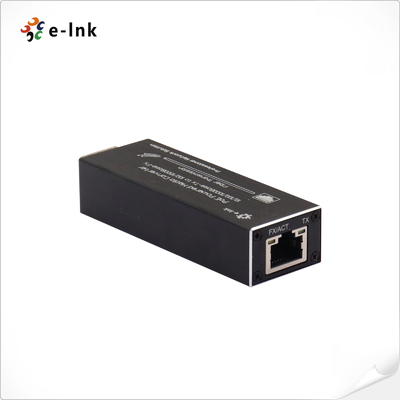

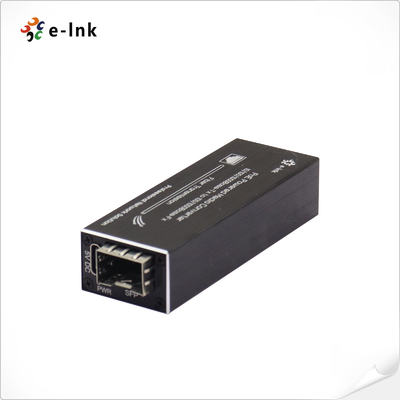

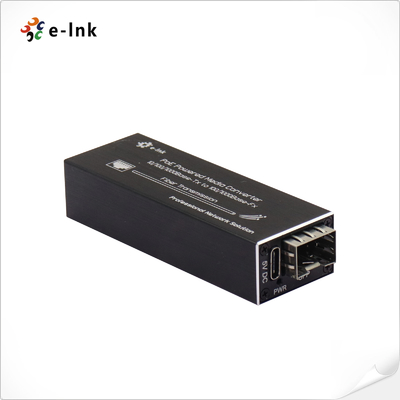

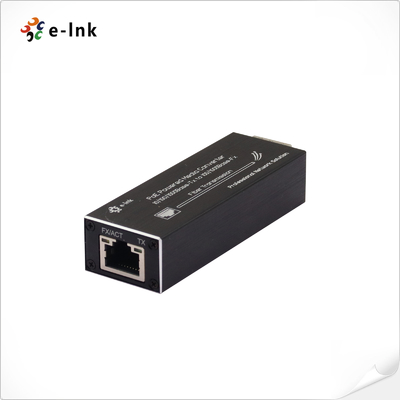

Large Image : Gigabit Media Converter IEEE802.3 with Auto-Adaptive Ports Multi-Mode & Single-Mode Up to 120km

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE FCC RoHS
Model Number:	LNK-M3011PD-SFP

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Please contact seller
Packaging Details:	Fiber Ethernet Media Converter Standard export package
Delivery Time:	2-7 working days
Payment Terms:	Western Union, MoneyGram, T/T
Supply Ability:	10000 per mouth

Contact Now

Detailed Product Description

Product Name:	Ethernet Media Converter	Power Supply:	DC 5~15V (Type C) Or Powered By IEEE802.3at PoE Injector / PoE Switch
Dimension:	78 X 27 X 18 Mm	Weight:	46g
Power:	<3W	Operating Temperature:	0~45ºC
Conversion Means:	Media Conversion	Wavelength:	850nm/1310nm/1550nm (Based On SFP Module Used)

Mini 10/100/1000BASE-T to 100/1000BASE-X SFP Fiber Media Converter with PoE Powered Function

Overview

This 10/100/1000Mbps adaptive Gigabit Ethernet media converter uses advanced switching technology to achieve seamless media conversion between copper and fiber networks. It fully complies with IEEE802.3, IEEE802.3u, IEEE802.3z, and IEEE802.3ab standards.

The converter interchanges electrical signals from twisted-pair cables with optical signals for fiber, extending network transmission distance from 100m (copper) up to 120km (fiber). It supports multi-mode dual fiber, single-mode dual fiber, and single-mode single fiber configurations, ensuring flexibility for diverse application environments.

Features

► 10/100 /1000Base-T to 100/1000Base-X

► SFP port support 100Base-FX or 1000Base-X dual mode (auto detection)

► 5~15V DC Type-C power input

► Support Powered by IEEE802.3at PoE Injector or Switch

► Ultra compact and weigh less than 2 ounces

► Support 9k jumbo frame

► Options in single mode dual fiber, multi-mode dual fiber, and single mode single fiber

► Aluminum Case, Conducive to heat dissipation

► 850nm/1310nm/1550nm Wavelength optional

Technical Indexes

Parameter	Specifications
Access mode	10/100/1000Mbps Gigabit Ethernet
Standard	IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet
Fiber Port	SFP - 100/1000M adaptive
Wavelength	850nm/1310nm/1550nm (Based on SFP Module used)
Transmission distance	Fiber Cable: Depends on SFP Module Category-5 twisted pairs: 100m
Port	One RJ45 port: for connecting with STP/UTP cat5/6 twisted pairs One Optical port: SFP
Conversion means	Media conversion
LFP	Not Support
BER	<10^-9
MTBF	100,000 hours
LED indicator	PWR (Power supply) TX (LINK100/1000, TP cable rate 100/1000M) FX/ACT (Optical link action /TP cable packet forwarding action)
Power supply	DC 5~15V (Type-C) Or Powered by IEEE802.3at PoE Injector / PoE Switch
Power consumption	<3W
Operating temperature	0~45ºC
Operating humidity	5%~90%
Maintaining temperature	-40~70ºC
Maintaining humidity	5% ~ 90% non-condensing
Weight	46g
Dimensions (W x D x H)	78 x 27 x 18 mm

Ordering Information

Model

Description

LNK-M3011PD-SFP

Mini 10/100/1000BASE-T to 100/1000BASE-X SFP Fiber Media Converter with PoE Powered Function, not including SFP module, standalone, external power adaptor

Power Options

5V Power supply adapter included, with USB Type-C cable;

Also support powered by IEEE802.3at PoE Injector / PoE Switch

Application
