Industrial Serial to Fiber Converter RS232 RS485 RS422 Support 80km Distance

Industrial Serial RS232/RS485/RS422 Fiber Optic Modem


Industrial Serial Fiber Optic Modem Overview

Industrial RS232/RS485/RS422 to Fiber Optic Converter enables reliable long-distance serial

communication over multimode (up to 2km) or single-mode fiber (up to 80km).

This converter eliminates electromagnetic interference, ground loop issues, and lightning

damage by converting electrical signals into optical transmission. It's ideal for industrial

control, process automation, traffic management, and stage lighting systems.

Supports RS232, RS485, RS422, with strong isolation, stable performance, and wide

operating temperature range.

Industrial Serial Fiber Optic Modem Features

• Plug-and-Play: Easy setup with hot-pluggable design, no configuration required
• Long-Distance Transmission: Extends bi-directional RS-232/RS-485/RS-422 signals up to 2 km over MMF and 80 km over SMF
• Wide Protocol Support: Complies with EIA/TIA RS-232/485/422 standards with data rates from 0 to 2 Mbps
• Transparent Data Transmission: Self-adaptive baud rate, fully transparent serial data transfer with no manual settings
• DMX512 Compatible: Ideal for stage lighting control and other high-speed serial applications

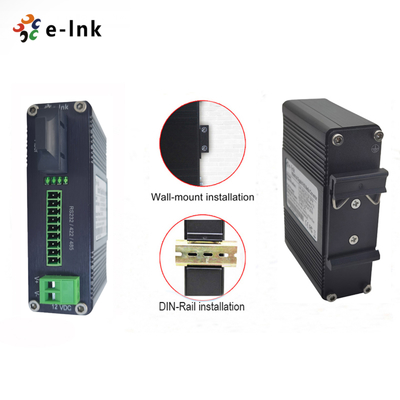

• Flexible Installation: Supports both DIN-Rail and wall-mount installation
• Enhanced Protection: Built-in surge and static protection for reliable operation in harsh environments
• LED Indicators: Diagnostic and unit status LEDs for quick monitoring and troubleshooting
• Rugged Industrial Design: Hardened for extreme conditions with a wide operating temperature range of -40°C to 75°C (-40°F to 176°F)

Industrial Serial Fiber Optic Modem Technical Indexes

Industrial Serial Fiber Optic Modem Ordering Information

Model	Description
LNK-IRS93-SFP	Industrial Serial RS232/RS485/RS422 with SFP port
LNK-IRS93-SCMM	Industrial Serial RS232/RS485/RS422 , SC MM 850nm, 550m
LNK-IRS93-SC20	Industrial Serial RS232/RS485/RS422 , SC SM 1310nm, 20km
Mounting Options	► Default DIN-Rail Bracket installed, Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately

Industrial Serial Fiber Optic Modem Application
