Serial Fiber Optic Converter 20km Transmission for Traffic Management Systems

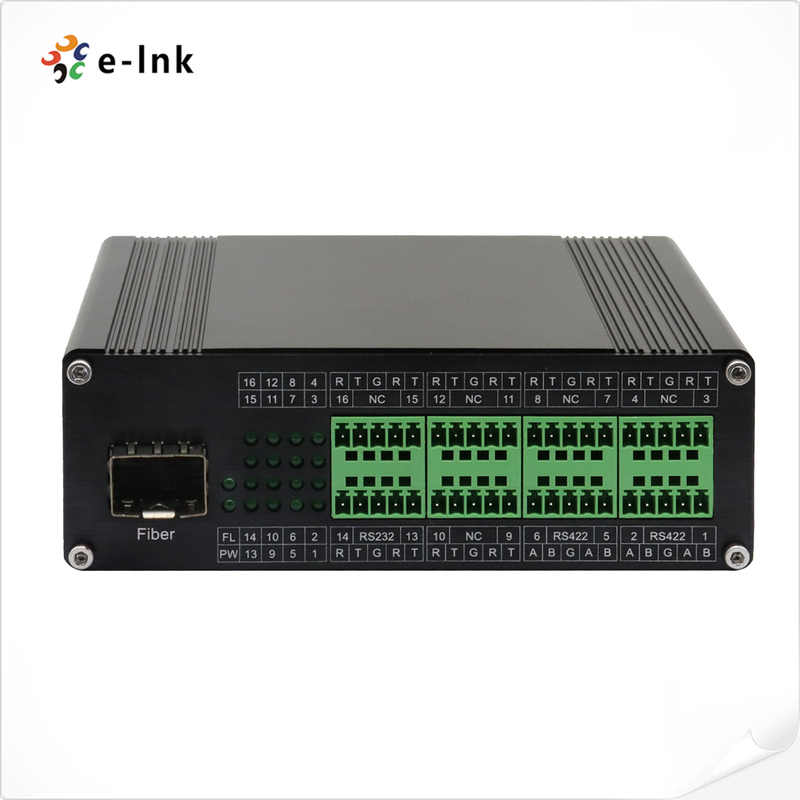

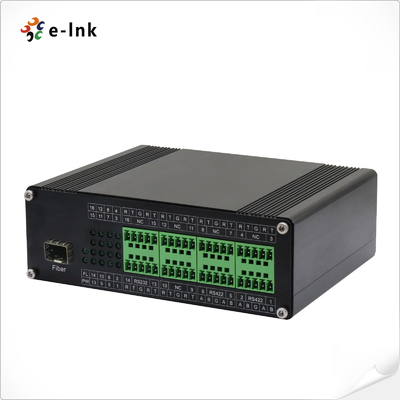

Large Image : Serial Fiber Optic Converter 20km Transmission for Traffic Management Systems

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	FCC,CE
Model Number:	LNK-IRS Series

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	Negotiation
Packaging Details:	Serial To Fiber Optic Media Converter Standard Export Package
Delivery Time:	2-7 working days
Payment Terms:	T/T,Western Union,MoneyGram,Paypal
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Fiber Connector:	SFP, FC, SC Or ST	Power Supply:	DC 12-48V
Power Rate:	<6W	Operating Temperature:	-40°C To 80°C (-40°F To 176°F)
Dimensions:	119(L)114(W)50(H) Mm	Weight:	0.55KG/pcs
Highlight:	4 to 16CH Fiber Converter , 16 Channel RS232 Fiber Converter , 4 Channel RS232 Fiber Converter

Industrial Multi-Channel RS-232/422/485 Serial to Fiber Converters

Industrial Multi-Channel Serial to Fiber Converters Overview

The E-link LNK-IRS Series is an industrial-grade multi-channel RS232/RS485/RS422 to fiber optic converter, designed to extend serial communication up to 2km over multimode fiber or 20km over single-mode fiber.

It supports 4 to 16 channels of RS232 or RS485, and 2 to 8 channels of RS422, with flexible mixed-signal configurations such as 8CH RS232 + 8CH RS485 or 8CH RS485 + 4CH RS422.

Featuring a DIN-rail mount design, it ensures easy installation in harsh industrial environments. Optical fiber transmission eliminates EMI, ground loop, and lightning interference, ensuring high data reliability, security, and performance.

Ideal for industrial automation, process control, stage lighting, and traffic management systems.

Industrial Multi-Channel Serial to Fiber Converters Features

Fan-less & DIN-Rail Design:
Ideal for harsh industrial environments, ensuring reliable operation with minimal maintenance.
Built-in Bi-Directional Serial Port:
Integrated RS232/422/485 serial interface (terminal block connection) with transparent data transmission and self-adaptive baud rate—no configuration needed.
Multi-Channel Serial Support:
Flexible options including 4–16Ch RS232, 4–16Ch RS485, or 2–8Ch RS422.
Fiber Optic Connectivity:
Supports SFP, FC, SC, or ST interfaces with multi-mode (2 km) and single-mode (20 km) fiber options.
DMX512 Compatible:
Suitable for high-speed serial applications such as stage lighting control and DMX512 communication.
Wide Voltage Input & Protection:
Supports 12–48 VDC input with reverse polarity protection.
Rugged IP40 Aluminum Enclosure:
Provides durability and EMI shielding in industrial settings.
Extended Operating Temperature:
Functions reliably in temperatures from -40°C to 80°C (-40°F to 176°F).
5-Year Warranty:
Backed by a long-term warranty for added peace of mind.

Industrial Multi-Channel Serial to Fiber Converters Technical Indexes

Fiber Optical Interface
Fiber interface	SFP, FC, SC or ST
Cable requirement	Multi-Mode: 50/125um, 62.5/125um Single-Mode: 9/125um
Fiber port	1 Fiber Port
Transmission distance	Multi-Mode: 2km Single-Mode: 20km
Wavelength	1310nm/1490nm/1550nm
RS232 Serial Interface
Physical interface	Industrial standard screw terminal
Data type	Up to 16Ch RS232 Bi-Direction
RS-232 signals	TxD, RxD, GND
Serial port line distance (copper)	15 meters
Baud Rate	0 ~ 800kbps
RS422 Serial Interface
Physical interface	Industrial standard screw terminal
Data type	Up to 8Ch RS422 Bi-Direction
RS-422 signals	Tx+, Tx-, Rx+, Rx-, GND
Serial port line distance (copper)	1000 meters
Baud Rate	0 ~ 800kbps
RS485 Serial Interface
Physical interface	Industrial standard screw terminal
Data type	Up to 16Ch RS485 Bi-Direction
RS-485 signals	Data+, Data-, GND
Serial port line distance (copper)	1000 meters
Baud rate	0 ~ 800kbps
Power Requirements
Power input	12~48VDC
Power consumption	<6W
Power connector	Terminal block
Power protection	Reverse polarity protection
LED Indicator
PWR	Power Supply
FL	Fiber Link Status
Data 1~16	Serial Data Signal
Mechanical
Dimensions (LxWxH)	119 x 114 x 50mm
Weight	0.55KG
Casing	Aluminum Case
Mounting Options	DIN-Rail Mount
Environmental
Working Temperature	-40°C to 80°C (-40°F to 176°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Working Humidity	5%~95% (Non-Condensing)
MTBF	216,388 Hours
Regulatory Approvals
EMI	FCC Part15, CISPR (EN55022) Class A
EMS	EN61000-4-2 (ESD) Level 4, Criteria B EN61000-4-3 (RS) Level 3, Criteria A EN61000-4-4 (EFT) Level 3, Criteria A EN61000-4-5 (Surge) Level 3, Criteria B EN61000-4-6 (CS) Level 3, Criteria A
Shock / Freefall / Vibration	Shock: MIL-STD-810F Method 516.5 Free Fall: MIL-STD-810F Method 516.5 Vibration: MIL-STD-810F Method 514.5 C-1 & C-2
Green	RoHS Compliant
Certifications:	FCC, CE

Industrial Multi-Channel Serial to Fiber Converters Application

After-Sales and Warranty Policy

It is composed of online customer service and telephone customer service, providing

product consultation, remote technical support, maintenance and acceptance services.

Service Policy: Three-month replacement and three-year warranty.

Replacement: Within three months of purchasing a series of products, after testing the product failure

by technicians and man-made damage caused by non-natural disasters, the purchaser can directly

go to the purchasing point to replace the same type of products.Or a product of comparable performance.

If there is no trouble in product testing, the original sample will be returned.

Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.

[The following circumstances do not fall within the scope of replacement and free maintenance]

1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
