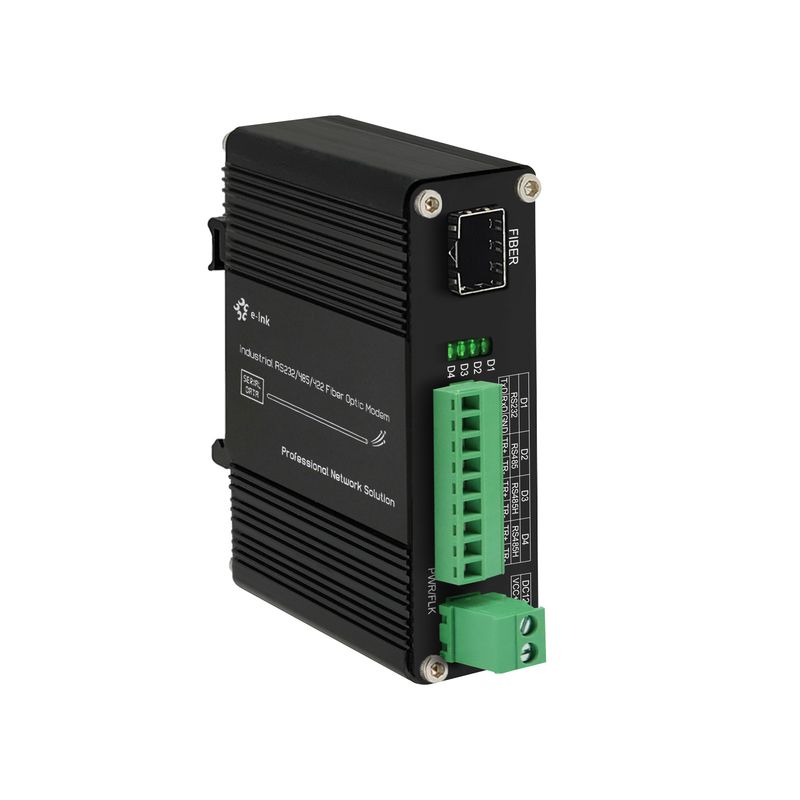

Industrial RS232/RS485/RS422 Fiber Modem Up to 80Km DIN-Rail Mount

Large Image : Industrial RS232/RS485/RS422 Fiber Modem Up to 80Km DIN-Rail Mount

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE, FCC, RoHS, ISO9001
Model Number:	LNK-IRS93-SFP
Document:	LNK-IRS93 Industrial Serial....0.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	$75-$104
Packaging Details:	Serial To Fiber Optic Media Converter Standard Export Package
Delivery Time:	2-7 working days
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	500pcs/month

Contact Now

Detailed Product Description

Model:	LNK-IRS93 Series	Fiber Ports:	SC Standard (ST/FC/LC Optional)
Fiber Distance:	50/125 MMF: 2 Km, 62.5/125 MMF: 5 Km, 9/125 SMF: 20/40/60/80 Km	Power Supply:	12~48VDC, <5W Consumption
Dimensions & Weight:	95 × 70 × 29 Mm, 0.25 Kg	Mounting:	DIN-Rail & Wall-mount, IP40 Housing
Highlight:	Industrial RS232 fiber modem , RS485 DIN-rail modem , Serial to fiber converter 80Km

Industrial RS232/RS485/RS422 Fiber Modem Up to 80Km DIN-Rail Mount

Overview

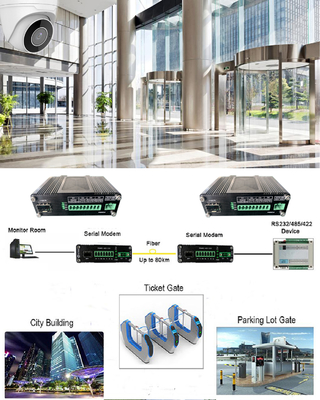

The LNK-IRS93 Series is an industrial-grade serial-to-fiber converter supporting RS232,

RS485, and RS422 protocols. It extends serial communication up to 2 km on multimode

fiber or 80 km on single-mode fiber, ensuring reliable, interference-free data transmission in

harsh industrial environments. Ideal for process control, stage lighting (DMX512), and traffic

systems, it provides plug-and-play operation with hot-swappable support and built-in

surge/ESD protection.

Features

Versatile Serial Support: RS232, RS485, RS422, fully transparent

Long-Distance Fiber Transmission: Up to 80 km on SMF, 2–5 km on MMF

High-Speed & Adaptive: Up to 2 Mbps, auto baud-rate, no configuration needed

Stage Lighting Ready: Supports high-speed DMX512 communication

Rugged Design: DIN-Rail & wall-mount, -40°C to +75°C operation

Reliable Protection: 15kV ESD, 1500W/sec surge protection

Diagnostics: LED indicators for easy monitoring

Technical Indexes

Model	LNK-IRS93 Series
Fiber Connector	SC standard, ST/FC/LC optional
Fiber Distance	50/125um MMF: 2Km, 62.5/125um MMF: 5Km, 9/125 SMF:20/40/60/80Km
Serial Interface	Industrial Terminal
Signal Ports	1Ch RS232 - 1Mbps 1Ch R485 - 1Mbps 2Ch RS485H- 2Mbps 2Ch RS485H can be grouped into 1Ch High Speed RS422
Standard	EIA /TIA RS232/485/422
Serial Distance	RS232: 15 meters, RS485/422: 1000 meters
Rate	Max 2Mbps
RS-232	TXD, RXD, GND - Bi-directional
RS-485	D+, D-, GND - Bi-directional
Power Supply	DC12~48V
Power rate	<5W
Static protection	15KV electric static discharge (ESD) protection
Surge protection	1500W/sec surge protection
Operation Temperature	-25°C to +75°C
Storage Temperature	-40°C to +85°C
Storage Humidity	5%~90% non-condescending
Dimensions	95(L)70(W)29(H) mm
Weight	0.25kg/pcs

Ordering Information

Model	Description
LNK-IRS93-SFP	Industrial Serial RS232/RS485/RS422 with SFP port
LNK-IRS93-SCMM	Industrial Serial RS232/RS485/RS422 , SC MM 850nm, 550m
LNK-IRS93-SC20	Industrial Serial RS232/RS485/RS422 , SC SM 1310nm, 20km
Mounting Options	► Default DIN-Rail Bracket installed, Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately
