Mini Industrial POE Ethernet Switch 5 Port 10/100/1000BASE-T 12~48V DC

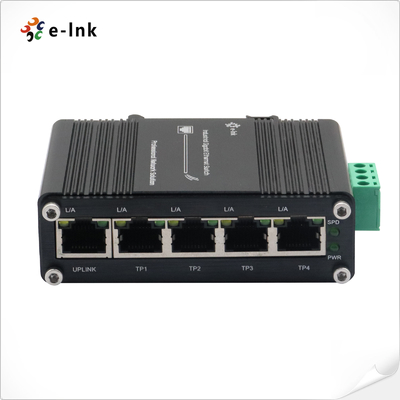

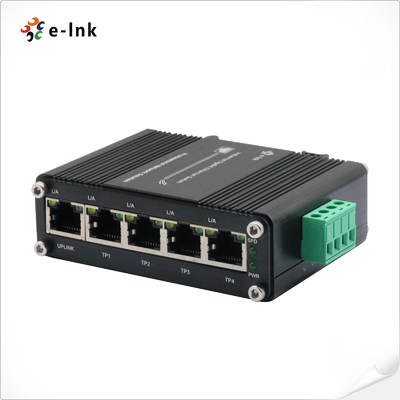

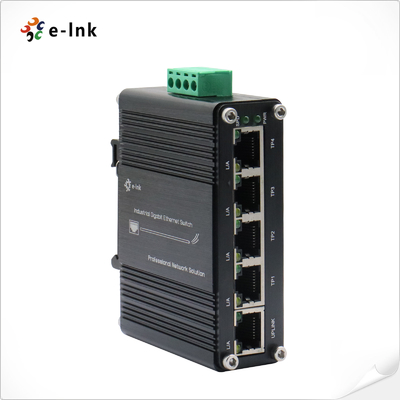

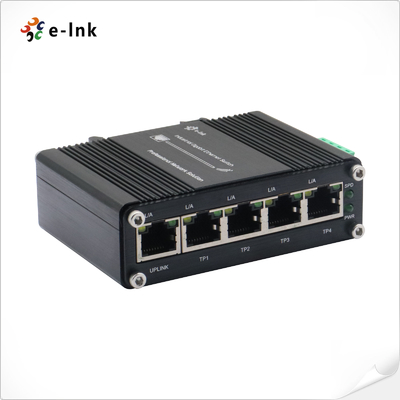

Large Image : Mini Industrial POE Ethernet Switch 5 Port 10/100/1000BASE-T 12~48V DC

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE/FCC/ISO9001
Model Number:	LNK-IMC005G

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	US$19.9/pc
Packaging Details:	1 piece in 1 carton box
Delivery Time:	1-3 working days
Payment Terms:	T/T, L/C, Western Union, MoneyGram
Supply Ability:	10000pcs/Month

Contact Now

Detailed Product Description

Operating Temperature:	-40°C To 80°C (-40°F To 176°F)	Input Power:	12~48VDC (Terminal Block)
Size:	95 X 70x 29m	Weight:	0.25Kg
Casing:	Aluminum Case	Mounting Options:	DIN-Rail / Wall-mount

Mini Industrial 5-Port Gigabit (PoE) Ethernet Switch

Overview

A rugged 5-port Gigabit switch featuring:

5×10/100/1000TX ports

12-48VDC wide voltage input

40~75°C operating range

Vibration/shock resistant

CE/FCC certified

Ideal for harsh environments like factory automation and outdoor installations.

Key advantages:

✓ Industrial-grade durability

✓ Plug-and-play simplicity

✓ Cost-effective networking

✓ Reliable performance

Features

Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex

PoE Optional

Supports DIN-Rail and Wall-mount installation

Industry standard design, dustproof and close design IP40, rugged high-strength metal case

Application

Mini Industrial POE Ethernet Switch 5 Port 10/100/1000BASE-T 12~48V DC 0

Mini Industrial POE Ethernet Switch 5 Port 10/100/1000BASE-T 12~48V DC 1

Technical Indexes

Ethernet
Standards:	IEEE 802.3 Ethernet
	IEEE 802.3u Fast Ethernet
	IEEE 802.3ab Gigabit Ethernet
	IEEE 802.3x Full-Duplex Flow Control
	IEEE 802.3az Energy Efficient Ethernet (EEE)
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer:	1Mbits
Packet Length:	10Kbytes
MAC Address Table:	8K
Switch Fabric:	10Gbps/non-blocking
Exchange Property	Backplane bandwidth: 10Gbps; Packet forwarding rate: 14.88Mpps
Connector:	5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	12~48VDC (Terminal Block)
Power Consumption:	<6W
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
Dimensions (WxDxH):	95 x 70x 29mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
LED Indicators:
PWR	Power
L/A	Link/Activity
SPD	Data Rate

Ordering Information

Model	Description
LNK-IMC005G	Mini Industrial 5-Port 10/100/1000T Gigabit Ethernet Switch
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately
