Micro Unmanaged Industrial Gigabit Ethernet Switch 4 Port GE + 1 Port SFP 100M 1000M

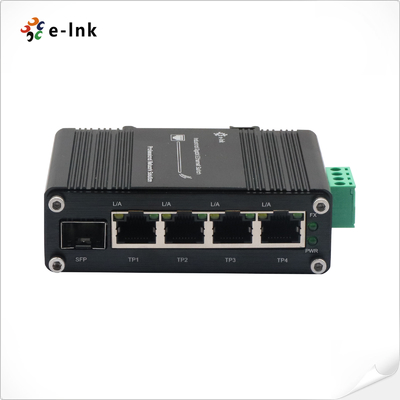

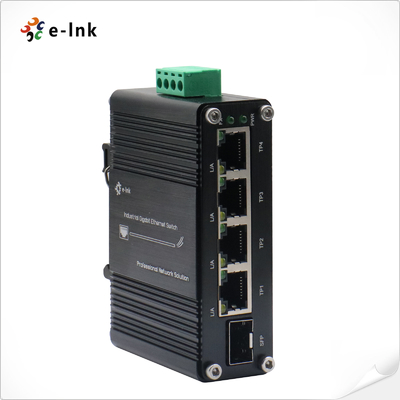

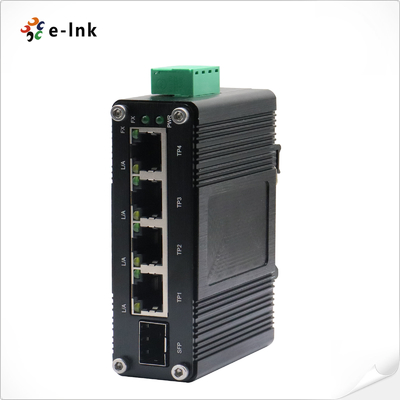

Large Image : Micro Unmanaged Industrial Gigabit Ethernet Switch 4 Port GE + 1 Port SFP 100M 1000M

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001/EN/IEC/FCC
Model Number:	LNK-IMC104G-SFP

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	US$19.9/pc
Packaging Details:	1 piece in 1 carton box
Delivery Time:	1-3 working days
Payment Terms:	T/T, L/C, Western Union, MoneyGram
Supply Ability:	1000pcs/Month

Contact Now

Detailed Product Description

Connector:	4 X RJ45	Optical Port:	1 X SFP 1000Base-X Or 100Base-FX (auto Detection)
Input Power:	12~48VDC (Terminal Block)	Dimensions (WxDxH):	95 X 70x 29mm
Weight:	0.25Kg	Casing:	Aluminum Case

Mini Industrial 4-Port 10/100/1000T + 1-Port 100/1000X SFP Gigabit Ethernet Switch
Overview

LNK-IMC104G-SFP Industrial Ethernet Switch

A rugged 5-port Gigabit switch with:

4×10/100/1000TX RJ45 ports

1×100/1000FX SFP slot

12-48VDC wide input voltage

40~75°C operating temperature

CE/FCC certified

Ideal for harsh industrial environments like factory automation and outdoor installations.

Key features:

✓ Compact & durable design

✓ Plug-and-play operation

✓ Reliable industrial performance

✓ Cost-effective solution

Features

► 100/1000BASE-X SFP slots for SFP type auto detection

► 4 10/100/1000BASET RJ45 auto-MDI/MDI-X ports

► 12~48VDC wide range power input

► Supports 802.3x Flow control

► Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)

► Supports DIN-Rail and Wall-mount installation

► Industry standard design, dustproof and close design IP40, rugged high-strength metal case

► -40°C to 80°C (-40°F to 176°F) operating temperature

Micro Unmanaged Industrial Gigabit Ethernet Switch 4 Port GE + 1 Port SFP 100M 1000M 0

Specifications

Ethernet
Standards:	IEEE 802.3 Ethernet
	IEEE 802.3u Fast Ethernet
	IEEE 802.3ab Gigabit Ethernet
	IEEE 802.3x Full-Duplex Flow Control
	IEEE 802.3az Energy Efficient Ethernet (EEE)
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer:	1Mbits
Packet Length:	10Kbytes
MAC Address Table:	8K
Switch Fabric:	10Gbps/non-blocking
Exchange Property	Backplane bandwidth: 20Gbps; Packet forwarding rate: 14.88Mpps
Connector:	4 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
Interface
Connector:	4 x RJ45
Optical Port:	1 x SFP 1000Base-X or 100Base-FX (auto detection)
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	12~48VDC (Terminal Block)
Power Consumption:	<6W
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
Dimensions (WxDxH):	95 x 70 x 29mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
LED Indicators:
PWR:	Power
L/A:	Link/Activity
SPD	Data Rate

Order Information

Model	Description
LNK-IMC104G-SFP	Mini Industrial 4-Port 10/100/1000T + 1-Port 100/1000X SFP Gigabit Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately

Application

Micro Unmanaged Industrial Gigabit Ethernet Switch 4 Port GE + 1 Port SFP 100M 1000M 1
