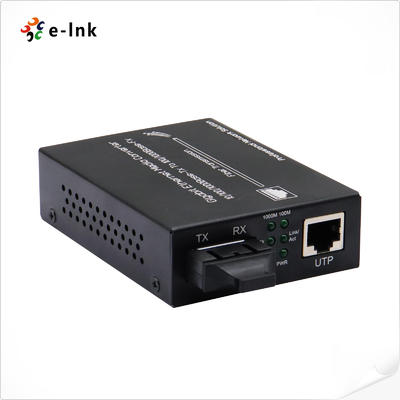

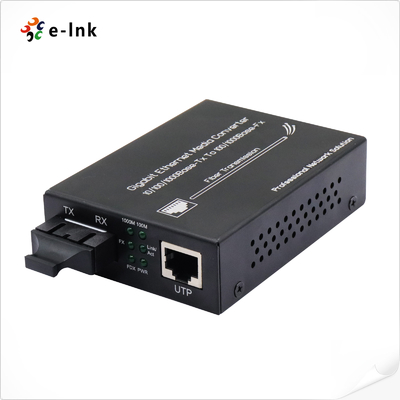

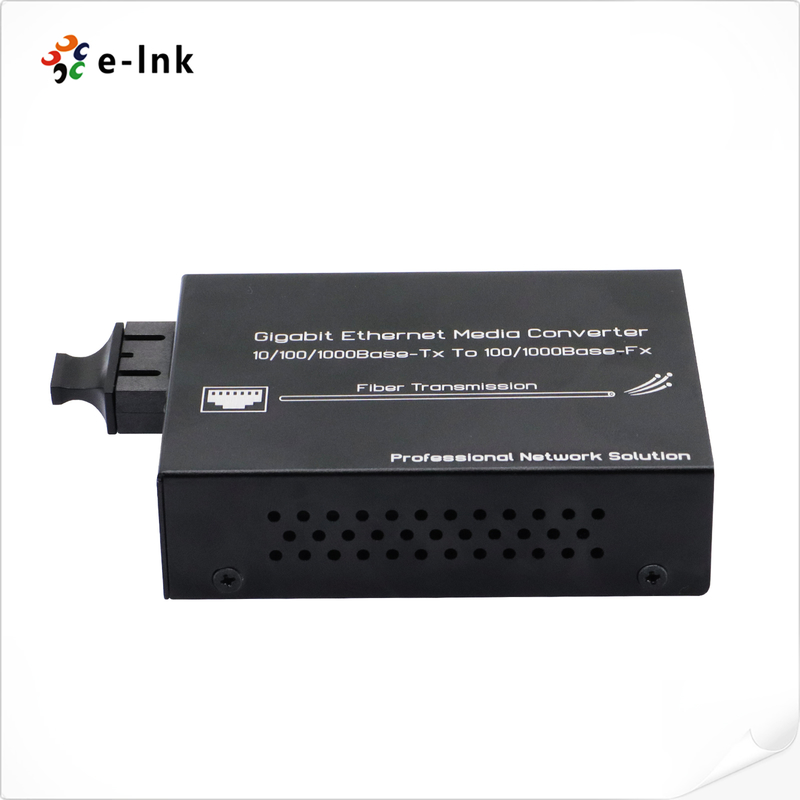

10/100/1000M Gigabit Ethernet Media Converter SM 40Km
Industrial Gigabit Ethernet Media Converter Overview
LNK-3011S-40 10/100/1000Mbps adaptive Gigabit Ethernet media converter adopts switching technology to fulfill
media conversion. It complies with IEEE802.3, IEEE802.3u, IEEE802.3z and IEEE802.3ab standards. Presently it
supports two types of media network connections: 10Base-T/100Base-TX/1000Base-T, and 1000Base-SX/LX,
inter-converting electrical signals of 10Base-T/100Base-TX/1000Base-T twisted pairs with optical signals of
1000Base-SX/LX. It extends the transmission distance of network from 100m via copper cable to 40km via fiber
optical cables.
Industrial Gigabit Ethernet Media Converter Features
-
Converts 10/100/1000Base-T Copper to 1000Base-FX Fiber
Seamlessly bridges copper and fiber networks, enabling reliable fiber connectivity in traditional Ethernet environments.
-
Supports Full/Half-Duplex and Auto-Negotiation/MDI-MDIX
Automatically detects and optimizes connection settings for compatibility with various devices and cable types.
-
Gigabit Media Converter with SC Duplex Fiber Interface
Provides high-speed fiber optic conversion with standard SC connectors for easy integration into existing fiber infrastructure.
-
9K Jumbo Frame Support
Increases network efficiency and reduces overhead for improved performance in data-intensive applications.
-
Quality of Service (QoS) Support
Prioritizes critical network traffic to ensure stable performance for latency-sensitive applications like voice and video.
-
Comprehensive LED Diagnostic Indicators
Provides real-time status monitoring for power, link activity, and data transmission to simplify troubleshooting.
-
40km Transmission over Single-Mode Duplex Fiber
Enables long-distance network extension while maintaining signal integrity across extended ranges.
-

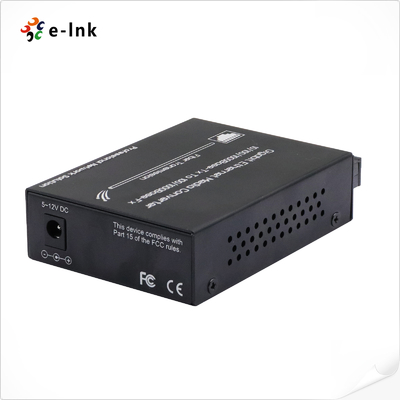

External Power Supply (AC90~264V Input, 5V/2A Output)
Supports wide voltage input range for global use with stable DC output ensuring consistent operation.
Industrial Gigabit Ethernet Media Converter Technical Indexes
| Parameter |
Specifications |
| Access mode |
10/100/1000Mbps Gigabit Ethernet |
| Standard |
IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet |
| Wavelength |
1550nm |
| Transmission distance |
single mode Dual-fiber: 40Km
Category-5 twisted pairs: 100m
|
| Port |
One RJ45 port: for connecting with STP/UTP category-5 twisted pairs
One optical port: Single mode Dual-fiber: SC
|
| Conversion means |
Media conversion |
| BER |
<10-9 |
| MTBF |
100,000 hours |
| LED indicator |
POWER (power supply), FX LINK (optical link action), TP LINK1000 (TP cable rate1000M), TP LINK100 (TP cable rate 100M), TP ACT (TP cable packet forwarding action) |
| Power supply |
External: AC90~264V input, 5V2A output
|
| Power consumption |
5W |
| Operating temperature |
-10~55ºC |
| Operating humidity |
5%~90% |
| Maintaining temperature |
-40~70ºC |
| Maintaining humidity |
5% ~ 90% non-condensing |

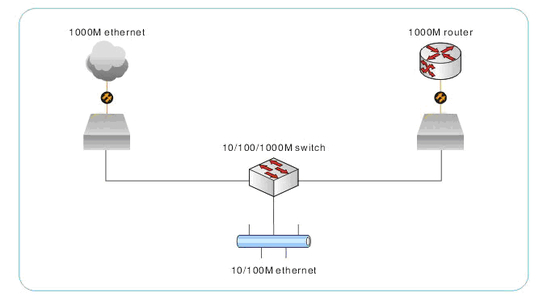

Industrial Gigabit Ethernet Media Converter Application
After-Sales and Warranty Policy
It is composed of online customer service and telephone customer service,
providing product consultation, remote technical support, maintenance and acceptance services.
Service Policy: Three-month replacement and three-year warranty.
Replacement: Within three months of purchasing a series of products, after testing the product failure
by technicians and man-made damage caused by non-natural disasters, the purchaser can directly
go to the purchasing point to replace the same type of products.Or a product of comparable performance.
If there is no trouble in product testing, the original sample will be returned.
Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.
[The following circumstances do not fall within the scope of replacement and free maintenance]
1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
