Mini 10/100/1000Mbps Media Converter SFP Slot 20KM Fiber Plug & Play

Large Image : Mini 10/100/1000Mbps Media Converter SFP Slot 20KM Fiber Plug & Play

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE FCC RoHS ISO9001
Model Number:	LNK-M3011 Series

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Please contact seller
Packaging Details:	Mini 10/100/1000Mbps Media Converter SFP Slot 20KM Fiber Plug & Play Standard export package
Delivery Time:	5-10 working days
Payment Terms:	Western Union, MoneyGram, T/T
Supply Ability:	10000 per mouth

Contact Now

Detailed Product Description

Product Name:	Ethernet Gigabit Media Converter	Power Supply:	DC 5V (Type C)
Dimension:	62 X 44 X 18 Mm	Port:	SC Fiber Port;RJ45 Port
Conversion Means:	Media Conversion	Power:	3W

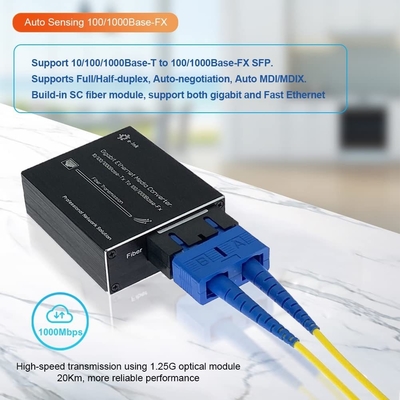

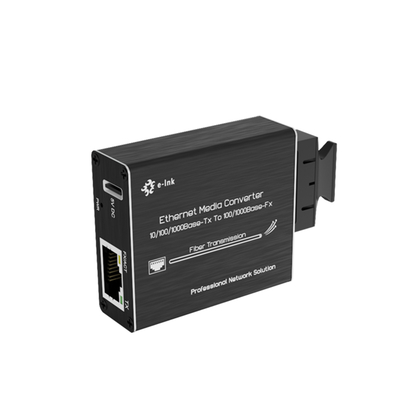

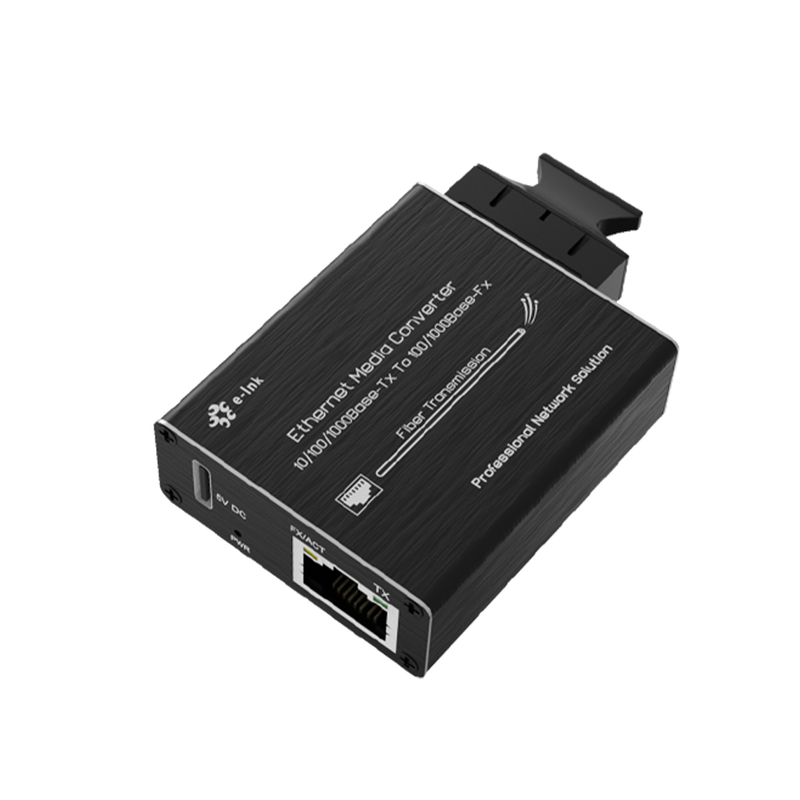

Micro type 10/100/1000Base-Tx to 100/1000Base-Fx Ethernet Media Converter

Overview

This high-performance media converter fiber networks, converting 10/100/1000Base-T electrical signals

to 100/1000Base-SX/LX optical signals. Compliant with IEEE 802.3/u/z/ab standards,

it extends transmission distances from 100m (copper) up to 20km (120km max with fiber).

Key Features:
✔ Dual-Mode SFP Port – Supports both 100Mbps and 1000Mbps fiber (auto-detection)
✔ Ultra-Compact Design – Space-saving, lightweight, and easy to integrate
✔ Flexible Fiber Options – Multi-mode/Single-mode (dual/single fiber)
✔ Extended Reach – 20km standard (up to 120km with single-mode fiber)
✔ Broad Compatibility – Works with existing 10/100/1000Mbps Ethernet devices

Technical Indexes

Parameter	Specifications
Access mode	10/100/1000Mbps Gigabit Ethernet
Standard	IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet

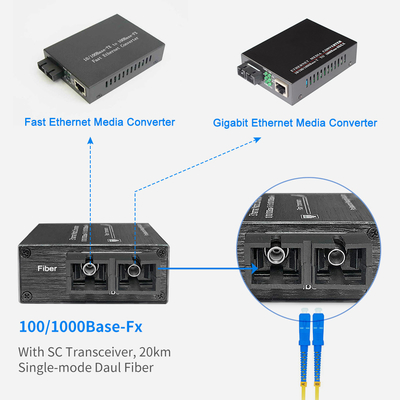

Fiber Port	1 SC Fiber Port, 100Base-FX or 1000Base-X dual mode (auto detection)
Wavelength	850nm/1310nm/1550nm
Transmission distance	multi-mode Dual-fiber: 220m (62.5/125μm)/550m (50/125μm) single mode Dual-fiber: 20/40/60/80 Km single mode Single fiber: 20/40/60/80 Km Category-5 twisted pairs: 100m
Port	One RJ45 port: for connecting with STP/UTP cat5/6 twisted pairs One optical port: Multi-mode Dual-fiber: SC (50, 62.5/125μm) Single mode Dual-fiber: SC (9/125μm) Single mode Single fiber: SC (9/125μm)
Conversion means	Media conversion
LFP	Not Support
BER	<10^-9
MTBF	100,000 hours
LED indicator	PWR (Power supply) TX (LINK100/1000, TP cable rate 100/1000M) FX/ACT (Optical link action /TP cable packet forwarding action)
Power supply	DC 5V (Type-C)
Power consumption	3W
Operating temperature	0~45ºC
Operating humidity	5%~90%
Maintaining temperature	-40~70ºC
Maintaining humidity	5% ~ 90% non-condensing
Dimensions (W x D x H)	62x 44 x 18 mm

Ordering Information

Model	Description

LNK-M3011	Micro type Media Converter: 10/100/1000Base-T to 100/1000Base-F, demi-monde, 500m, 850nm, SC, standalone, external power adaptor
LNK-M3011-20	Micro type Media Converter: 10/100/1000Base-T to 100/1000Base-F, single mode, 20km, 1310nm, SC, standalone, external power adaptor
LNK-M3011S-20A	Micro type Media Converter: 10/100/1000Base-T to 100/1000Base-F, WDM (single fiber bi-direction), 20km, 1310nm TX/1550nm RX, SC, standalone, external power adaptor
LNK-M3011S-20B	Micro type Media Converter: 10/100/1000Base-T to 100/1000Base-F, WDM (single fiber bi-direction), 20km, 1550nm TX/1310nm RX, SC, standalone, external power adaptor
