E-link China Technology Co.,Ltd.
Professional Fiber Optical Communication and CCTV Security Transmission Product Manufacturer
|
Product Details:
Payment & Shipping Terms:
|
| Resolution: | 10 Bit | Signal Level: | <380mVp-p |
|---|---|---|---|
| Standard SM Wavelength: | 1310nm, 1550nm | CWDM Wavelength: | 1270~1610nm, 20nm Grid According ITU-T |
| Dimensions (LxWxH): | 58 X 21 X 20 Mm | Operating Temperature: | 0°C To 70°C (32°F To 158°F) |

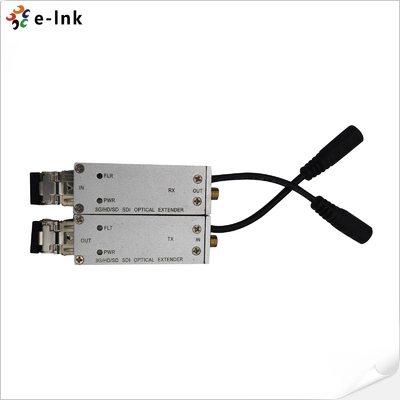

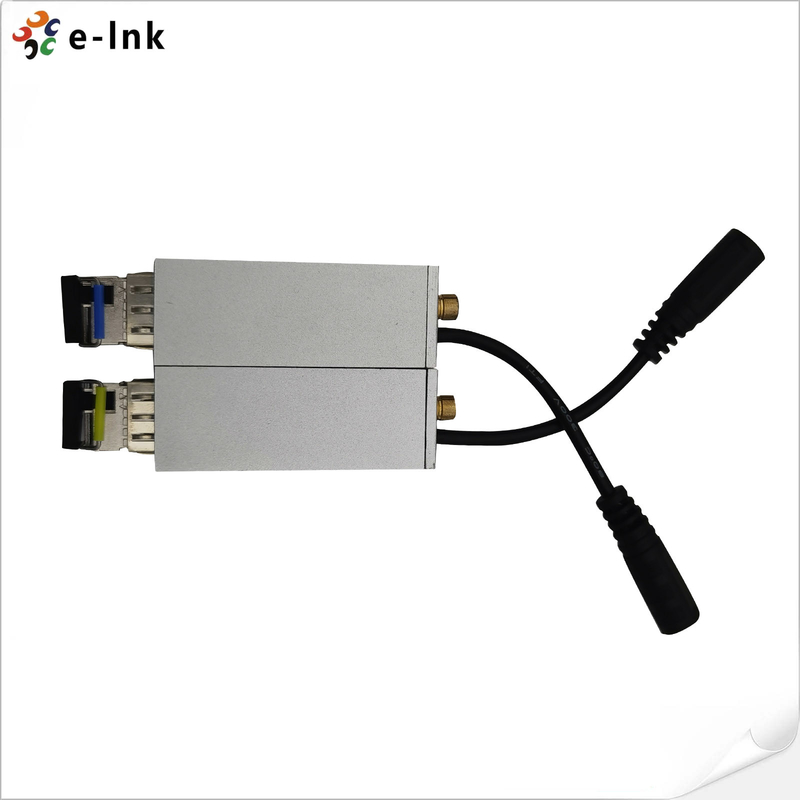

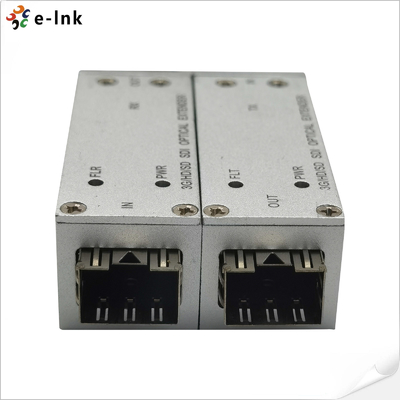

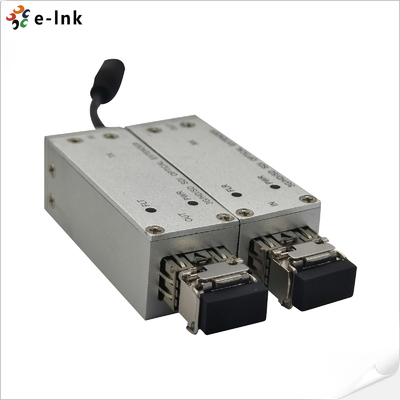

SMB 3G/HD/SD-SDI Optical Micro-Extender
SDI Video SFP Module Advantages
► 3G-SDI/HD-SDI/SD-SDI signal auto recognition, no manual selection necessary
► Transmission distance up to 120km
► CWDM technology to allow up to 16(18) channels to transmit over one fiber
► Compliant with SMPTE424M, SMPTE292M, SMPTE259M, SMPTE297M, SMPTE310M, SMPTE305M, SMPTE344N
► Compliant with DVB-ASI(EN50083-9)
► Convenient instruction of LED status. Fiber link indicator, power.
► PCB board is environmentally friendly (Pb-free)
► PCB board with multilayer design to ensure stable and reliable signal transmission
SDI Video SFP Module Technical Indexes
| SDI Input | |
| Video standard | SMPTE424M, SMPTE292M, SMPTE259M, SMPTE297M, SMPTE310M, SMPTE305M (SDTI) |
| Signal standard | SD-SDI(270Mbps), HD-SDI(1.485Gbps), 3G-SDI(2.97Gbps) |
| Impedance | 75Ω |
| Connector | SMB |
| SDI output | |
| Signal level | 800mVp-p±10% |
| Rise/Fall time | <0.8ns |
| HD-SDI Jitter | <0.2UI(134ps)@100kHz, <1.0UI(673ps)@10Hz |
| SDI Jitter | <0.2UI(740ps)@10Hz, 0.2UI(740ps)@1kHz |
| Impedance | 75Ω |
| Connector | SMB |
| Optical Interface | |
| SFP | Simplex LC, 3,125Gbps. ≤120km transmission distance |
| Standard SM wavelength | 1310nm, 1550nm |
| CWDM wavelength | 1270~1610nm, 20nm grid according ITU-T |
| Temperature range | 0~70˚C |
| Electrical | |
| Power | 5VDC, 1A |
| Consumption | <5W |
| LED Indicator | |
| FLT | Fiber link status (Transmitter) |
| FLR | Fiber link status (Receiver) |
| PWR | Power status |
| Mechanical | |
| Dimensions (LxWxH) | 58 x 21 x 20 mm |
| Weight | 100g/pair |
| Casing | Aluminum Case |
| Mounting Options | Desktop |
Industrial Ethernet Media Converter Overview
LNK-M3G-SMB1V-20 Series 3G-SDI/HD-SDI/SD-SDI micro extender fiber optic transmission system that transmits one 3G-SDI, HD-SDI, SD-SDI high definition digital video or one DVB-ASI stream through one single mode or multimode fiber supporting SMPTE424M, SMPTE259M, SMPTE297M, SMPTE310M, SMPTE305M (SDTI) standards. With its advanced digital fiber optic transmission technology, there are no adjustments necessary, simple to set up and easy to operate. The SDI micro extender series uses 5V power supply with low power consumption.
Ordering Information
| Model | Description |
| LNK-M3G-SMB1V-20 | SMB 3G/HD/SD-SDI Optical Micro-Extender, 1310/1550nm, Simplex LC, Single Mode, 20KM including Transmitter and Receiver, used by pairs |
