Product Details:
Payment & Shipping Terms:
|
| Keywords: | Bidirectional 3G-SDI Fiber Converter | Power Adaptor: | DC 5~25V |
|---|---|---|---|
| Video Bits Rate: | Max 3.2Gb/s | Wavelength: | 1310nm/1550nm |
| Weight: | 1.5KG/pair | Dimensions (LxWxH): | 120 X 105 X 28 Mm |
| High Light: | Bidirectional 3G SDI To Fiber Optic Converter,Hot Plug SDI To Fiber Optic Converter,Hot Swap SDI fiber converter |
||

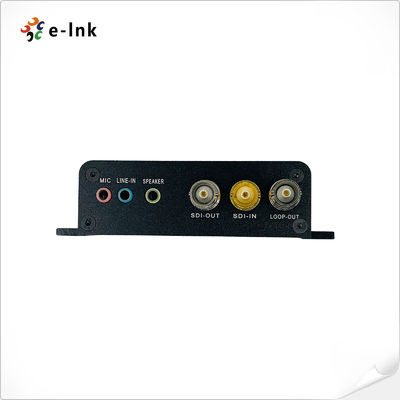

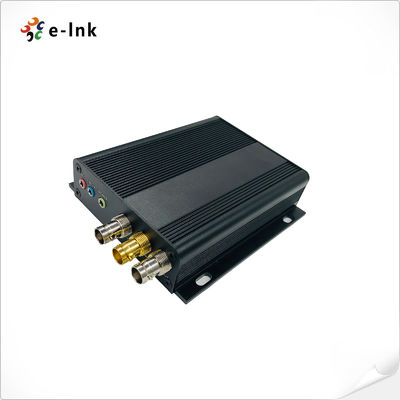

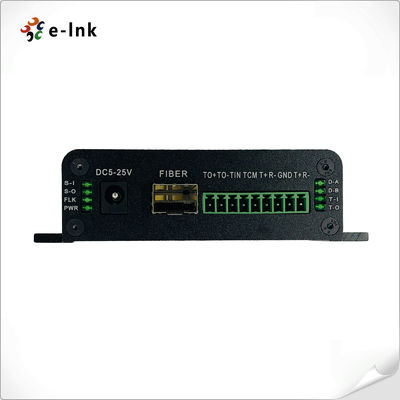

2Ch Bidirectional 3G-SDI Converter With Tally RS485/RS422 Stereo Audio Microphone
Bidirectional 3G-SDI Optical Converter Advantages
► 2Ch Bidirectional 3G-SDI Video Input and Output, 1Ch Tally Signal, 2Ch Bidirectional RS485 or RS422 Data, 2Ch Stereo Audio, 1Ch Microphone
► Support HDTV 720P, 1080I, 1080P, 1920*1080@60Hz
► Long transmission capability up to 20km (SMF)
► Hot swap and hot plug; Fully digital non-compression broadcast level transmission
Technical indexes
|
Fiber interface |
Simplex LC |
|
Transmission distance |
0-20Km |
|
SDI format support |
625/25 PAL |
|
525/29.97 NTSC, 525/23.98 NTSC |
|
|
720p50, 720p59.94 |
|
|
1080i 23/24/30/50/59.94 |
|
|
1080P 23.98/24/30/50/60 |
|
|
Video SDI standard |
270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI) |
|
SMPTE425M3Gb/s Mapping(3G-SDI) |
|
|
SMPTE424M 3Gb/s serial interface(3G-SDI) |
|
|
Data type |
RS485 (Default) or RS422 (Optional), Tally signal |
|
Frequency/Rate support |
Max. 115200bps for RS422 Max. 57600bps for RS485 |
|
Audio input and output |
3.5MM Audio |
|
Audio format |
@48KHz |
|
Working Temperature |
-20℃～+70℃ |
|
Storage Temperature |
-40℃～+80℃ |
|
Working Humidity |
0~95% |
|
MTBF |
≥100000 hours |
Overview
E-link 3G/HD-SDI Video over Fiber Converters includes one transmitter and one receiver for 1080P 3G/HD-SDI signal. This series of video to fiber converter has Stable performance, clear picture quality, and high Stability with LED Status Indication on the body of device. The working status of devices can be visually observed. Possible applications for this product, to name few are: Intelligent Traffic Monitoring System. Security system School networking Industrial monitoring (Electricity, Chemistry, Steel, Oil, Railway, etc) Military Monitoring (Warehouse, Border, Guards, etc) TV programme transmission system. Stadium (For LIVE HD video, audio transmission).
Ordering Information
|
Model |
Description |
|
LNK-3G-2BV1T2BD2A1M |
2Ch Bidirectional 3G-SDI+1Ch Tally +2Ch Bidirectional RS485 or RS422+2Ch Stereo Audio+1Ch Microphone over Fiber Converter, Single Mode Fiber, LC, 20km, including Transmitter and Receiver, used by pairs |
