Product Details:
Payment & Shipping Terms:
|
| Keywords: | SMB 3G/HD/SD-SDI Extender | Connector: | SMB |
|---|---|---|---|
| SFP Interface: | Simplex LC | CWDM Wavelength: | 1270~1610nm |
| Casing: | Aluminum Case | Mounting Options: | Desktop |
| High Light: | Desktop SDI To Fiber Optic Converter,SMB SDI To Fiber Optic Converter,1610nm SDI Fiber Optical Extender |
||

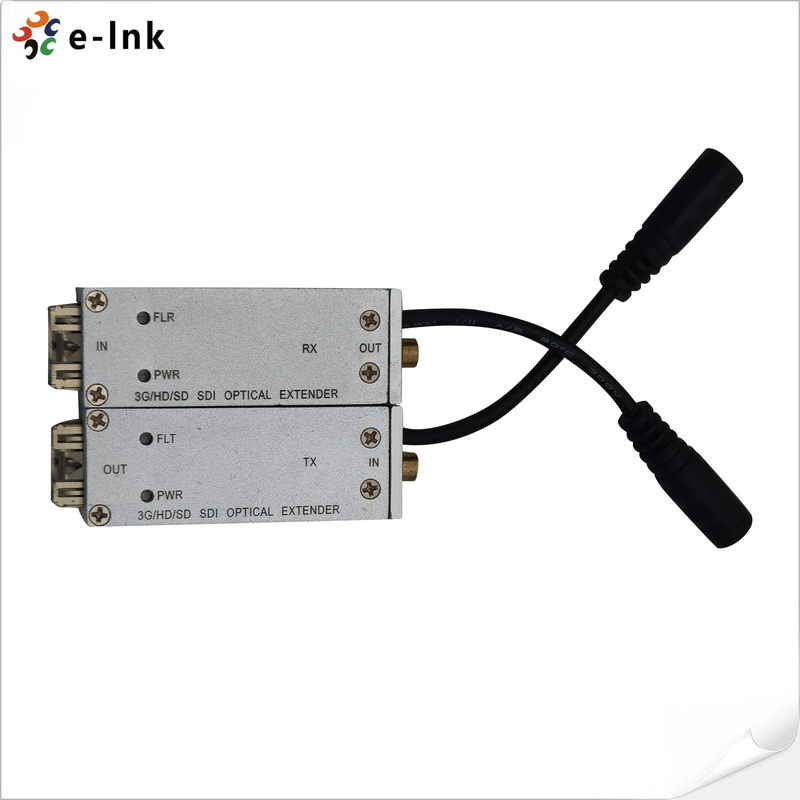

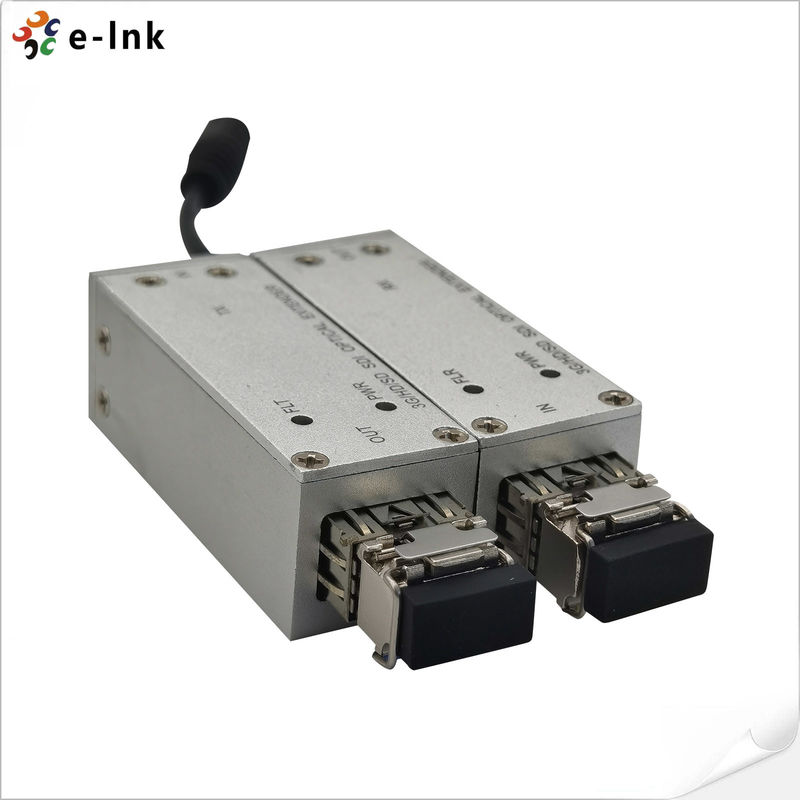

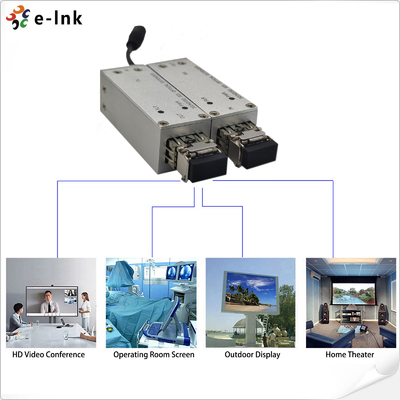

Desktop SMB 3G HD SD-SDI Optical Micro-Extender Converter Single Mode 20KM
3G-SDI Extender Advantages
► 3G-SDI/HD-SDI/SD-SDI signal auto recognition, no manual selection necessary
► Transmission distance up to 120km
► CWDM technology to allow up to 16(18) channels to transmit over one fiber
► PCB board with multilayer design to ensure stable and reliable signal transmission
Technical indexes
| SDI Input | |
| Video standard | SMPTE424M, SMPTE292M, SMPTE259M, SMPTE297M, SMPTE310M, SMPTE305M (SDTI) |
| Signal standard | SD-SDI(270Mbps), HD-SDI(1.485Gbps), 3G-SDI(2.97Gbps) |
| Resolution | 10 Bit |
| Signal level | <380mVp-p |
| Impedance | 75Ω |
| Connector | SMB |
| SDI output | |
| Signal level | 800mVp-p±10% |
| Rise/Fall time | <0.8ns |
| HD-SDI Jitter | <0.2UI(134ps)@100kHz, <1.0UI(673ps)@10Hz |
| SDI Jitter | <0.2UI(740ps)@10Hz, 0.2UI(740ps)@1kHz |
| Impedance | 75Ω |
| Connector | SMB |
| Electrical | |
| Power | 5VDC, 1A |
| Consumption | <5W |
| Mechanical | |
| Dimensions (LxWxH) | 58 x 21 x 20 mm |
| Weight | 100g/pair |
| Casing | Aluminum Case |
| Mounting Options | Desktop |
Overview
LNK-M3G-SMB1V-20 Series 3G-SDI/HD-SDI/SD-SDI micro extender fiber optic transmission system that transmits one 3G-SDI, HD-SDI, SD-SDI high definition digital video or one DVB-ASI stream through one single mode or multimode fiber supporting SMPTE424M, SMPTE259M, SMPTE297M, SMPTE310M, SMPTE305M (SDTI) standards. With its advanced digital fiber optic transmission technology, there are no adjustments necessary, simple to set up and easy to operate. The SDI micro extender series uses 5V power supply with low power consumption.
Ordering Information
|
Model |
Description |
|
LNK-M3G-SMB1V-20 |
SMB 3G/HD/SD-SDI Optical Micro-Extender, 1310/1550nm, Simplex LC, Single Mode, 20KM including Transmitter and Receiver, used by pairs |
