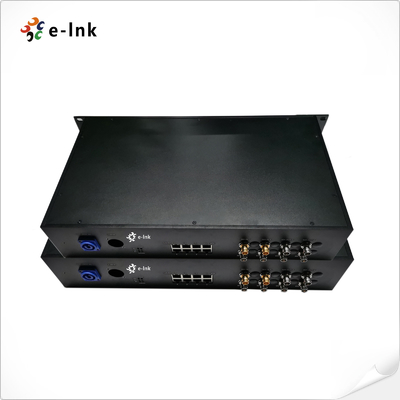

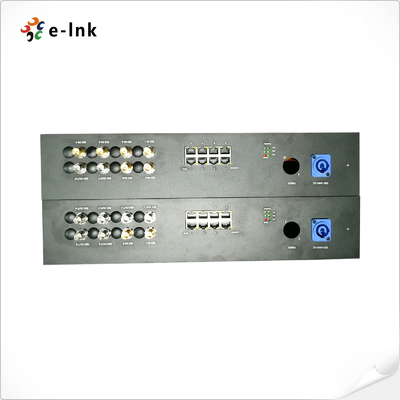

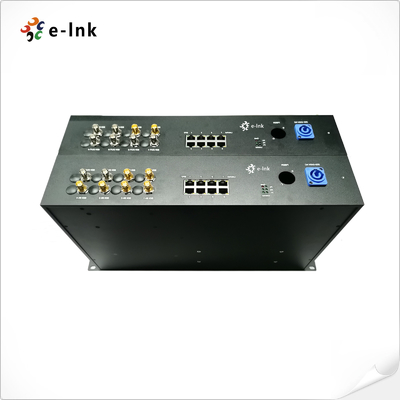

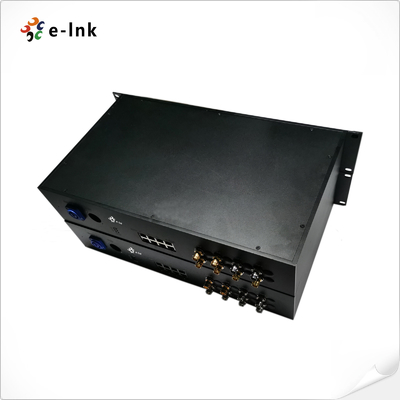

8-Port PoE Switch + 6-Ch Forward 2-Ch Return 3G-SDI Fiber Extender
Overview
The LNK-3GSDI-6FV2BV8GP is a professional fiber optic extender integrating 8 Gigabit PoE ports
with 6 forward 3G-SDI and 2 return 3G-SDI channels over a single optical fiber. Designed for
broadcast studios, surveillance networks, and live production, it delivers uncompressed SDI
video (SD/HD/3G-SDI) with embedded audio, while simultaneously powering IP cameras or other
devices via IEEE 802.3af/at PoE. Featuring built-in CWDM multiplexing, rackmount 2U form factor,
and 20km optical transmission distance, it provides a scalable and secure transmission solution
where reliability is critical.
Features
8x Gigabit PoE (IEEE 802.3af/at) for powering IP cameras & devices
6 forward + 2 return 3G-SDI channels over single-mode fiber
Supports SD-SDI, HD-SDI, 3G-SDI, DVB-ASI up to 2.97Gbps
Compliant with SMPTE 424M/292M/259M/297M video standards
Integrated CWDM multiplexer, hot-swappable SFP modules
Automatic SDI signal equalization & reclocking for stability
2U rackmount design with industrial-grade metal housing
Transmission distance up to 20km (optional longer reach)
Wide operating temperature -20℃~+70℃, MTBF ≥100,000 hours
Technical Indexes
| Fiber Optical interface |
| Fiber interface |
Simplex LC |
| Transmission distance |
20Km |
| Wavelength |
1310nm/1550nm |
| Video |
| Video interface |
BNC |
| Video input/output impedance |
75Ω |
| Video input/output voltage |
Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp |
| Video Bits Rate |
Max 3.2Gb/s |
| Differential gain (10%～90% APL) |
<1% |
| Video SDI standard |
270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI) |
| SMPTE425M3Gb/s Mapping(3G-SDI) |
| SMPTE424M 3Gb/s serial interface(3G-SDI) |
| Video Input |
6 Channel 3G-SDI |
| Video Output |
2 Channel 3G-SDI |
| Ethernet |
| Standards |
IEEE802.3 10Base-T
IEEE802.3u 100Base-TX/FX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-X
|
| Power over Ethernet |
IEEE 802.3af: PoE 48V DC, max. 15.4 watts, 350mA
IEEE 802.3at: PoE 48~56V DC, max. 30 watts, 650mA
Power Pin Assignment: 4/5(+), 7/8(-)
|
| Date Rate |
10/100/1000Mpbs |
| Connector |
8 x RJ45 |
| Max. Power per Port |
RJ45 Port 1 ~ Port 8 (30W Max per port) |
| Electrical |
| Power Input |
200VAC to 240VAC |
| Power consumption |
<15W |
| LED Indicator |
| PWR |
Power Supply |
| SDI 1~8 |
3G-SDI Signal |
| ACT |
RJ45 Ethernet Signal |
| LINK |
Link Status |
| Mechanical |
| Size |
19” 2U Rack |
| Weight |
11.5KG/pair |
| Casing |
Metal Case |
| Mounting Options |
Rack-mount |
| Environmental |
| Working Temperature |
-20℃～+70℃ |
| Storage Temperature |
-40℃～+80℃ |
| Working Humidity |
0~95% |
Ordering Information
| Model |
Description |
| LNK-3GSDI-6FV2BV8GP |
8Ch Gigabit PoE + 6Ch Forward 3G-SDI + 2Ch Backward 3G-SDI Fiber Optic Extender, Single Mode, Singel Fiber, 20KM, 19” 2U rack mount |
