Product Details:
Payment & Shipping Terms:
|
| Connector: | 5 X RJ45 (1-Port PoE In, 4-Port PoE Out) | Optical Port: | 2 X SFP 1000Base-X Or 100Base-FX (auto Detection) |
|---|---|---|---|
| Operating Temperature: | -40°C To 80°C (-40°F To 176°F) | Input Power: | Pass Through PoE: 95W Power Input From A PoE Injector Or Switch/48~57VDC (Terminal Block) |
| Power Consumption: | <5W (Non-PoE) | Dimensions (WxDxH): | 95 X88x 46 Mm |
| Weight: | 0.3Kg |

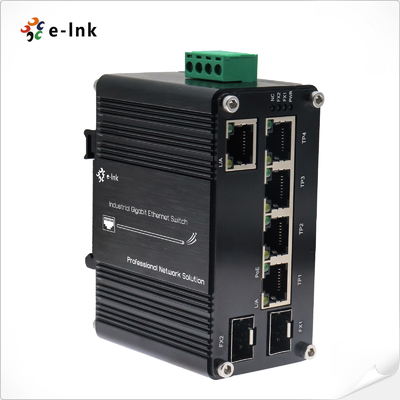

Industrial PoE Powered 5-Port 10/100/1000T + 2-Port 100/1000X SFP Ethernet Switch with PoE Passthrough
Industrial Ethernet Switch Advantages
► One IEEE 802.3bt (PoE++ / 4PPoE) PD PoE Port with 95 W Power Input
► Four PSE PoE ports, PoE Power Budget up to 71 Watt
► Two 100/1000BASE-X SFP slots for SFP type auto detection
► POE extender: No AC adapter is required, powered by PoE switch or PoE injector
► Expand and repeat your PoE network for up to 4 IP devices

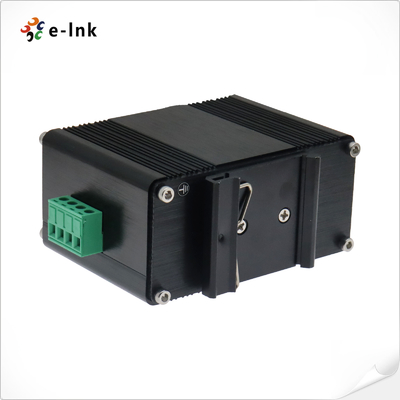

► Supports DIN-Rail installation
► Compact fanless design avoids overheating
► IP40 rugged high-strength metal case
Industrial Ethernet Switch Technical Indexes
| Packet Buffer: | 2Mbits |
| Packet Length: | 10Kbytes |
| MAC Address Table: | 4K |
| Switch Fabric: | 14Gbps/non-blocking |
| Exchange Property |
Backplane bandwidth: 14Gbps; Packet forwarding rate: 14.88Mpps |
| Connector: | 4 ports with 802.3at PoE+ injector function (Ports 1 to 4) |
| Network Cables |
Twisted-pair: 10BASE-T: 2-pair UTP Cat. 3,4,5, up to 100m 100BASE-TX: 2-pair UTP Cat. 5, up to 100m 1000BASE-T: 4-pair STP Cat 5 up to 100m
Fiber-optic Cable 1000BASE-SX: 50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m/2km. 1000BASE-LX: 9/125μm single-mode cable, providing long distance of 2/10/20/40/80/120km (depending on SFP module) 100BASE-FX: 50/125μm or 62.5/125μm multi-mode fiber cable for up to 2km (depending on SFP module) 9/125μm single-mode cable for 20/40/60/120km (vary on SFP module) |
| PoE (Power over Ethernet) | |
| Standard: | IEEE802.3af/at/bt |
| Power Pin Assignment | 4/5(+), 7/8(-) |
| PoE Budget: | Up to 71-watt PoE budget |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail |

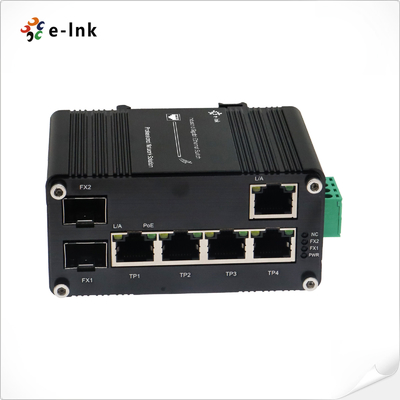

| LED Indicators: | |
| PWR: | Power |
| L/A: | Link/Activity |
| PoE: | PoE Status |
| FX1/FX2: | SFP Fiber Link Status |
Industrial Ethernet Switch Overview

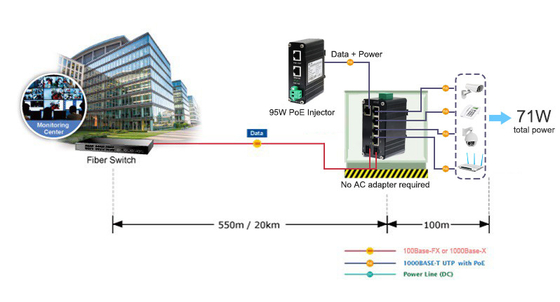

E-link LNK-IMC205GPD-SFP Series is a Mini Industrial PoE Powered 5-Port 10/100/1000T + 2-Port 100/1000X SFP Ethernet Switch with PoE Passthrough. It’s with one IEEE 802.3bt (PoE++ / 4PPoE) PD PoE Port with 95 W Power Input, four PSE PoE ports, PoE Power Budget up to 71 W, IEEE 802.3af/at/bt Compliant Output. LNK-IMC205GPD-SFP PoE Pass-through switch is integrated with both Powered Device (PD) and Power Source Equipment (PSE) in one which can receive power and data from another PoE device and pass through. This switch is designed to supply the PoE to IP devices deployed in the field where the power source is difficult to acquire. Single Ethernet cable is capable of providing 71-Watt total power budget and the pass through switch expand up to 4 network ports with PoE.
Ordering Information
| Model | Description |
| LNK-IMC205GPD-SFP | Industrial PoE Powered 5-Port 10/100/1000T + 2-Port 100/1000X SFP Ethernet Switch with PoE Passthrough |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed; |
| Power Options | ► PoE Pass Through |
| ► Power Supply is to be purchased separately |
