Mini 5-Port Industrial Gigabit Switch 12–48VDC -40~80°C IP40

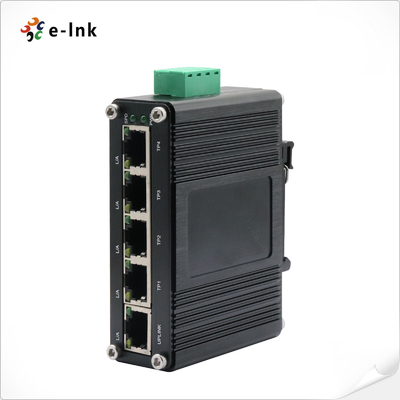

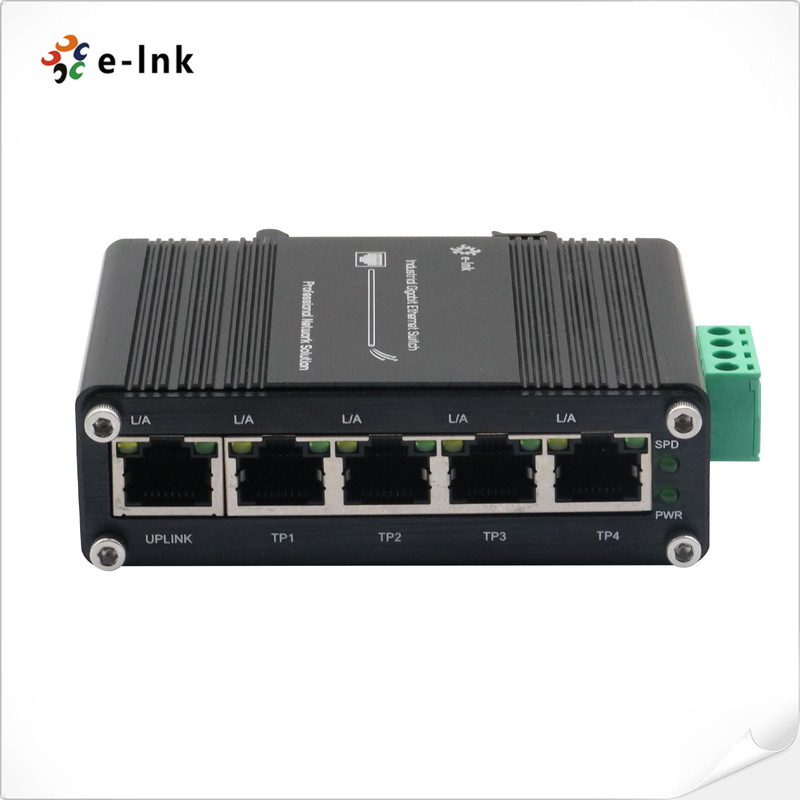

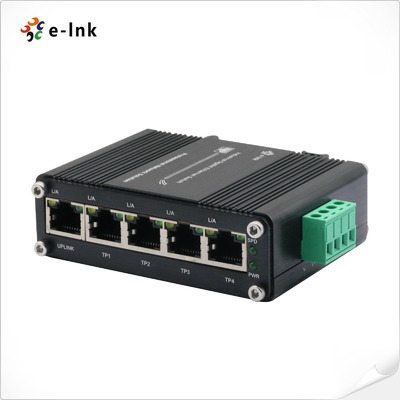

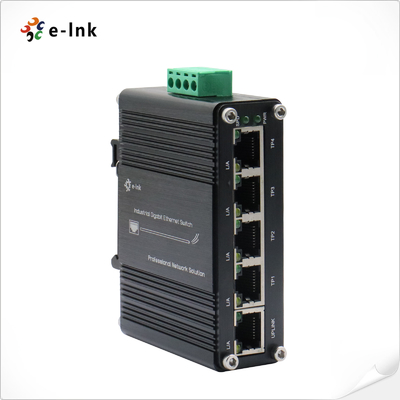

Large Image : Mini 5-Port Industrial Gigabit Switch 12–48VDC -40~80°C IP40

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE, RoHS, FCC, ISO9001
Model Number:	LNK-IMC005G
Document:	1E-link Communication & Net...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	US$19.9/pcs
Packaging Details:	Industrial Switch Standard Export Package
Delivery Time:	5-12working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Forward & Filtering Rate::	14,880pps (10Mbps)/148,800pps (100Mbps)/1,488,000pps (1000Mbps)	Connector:	5 X 10/100/1000BASET RJ45 Auto-MDI/MDI-X Ports
Packet Buffer:	1Mbits	Operating Temperature:	-40°C To 80°C (-40°F To 176°F)
Input Power:	12~48VDC (Terminal Block)	Power Consumption:	<6W (PoE In Use: <125W)
Dimensions (WxDxH):	95 X 70 X 30 Mm	Weight:	0.25Kg
Highlight:	Mini industrial Gigabit PoE switch , 5-port PoE Ethernet switch , Gigabit Ethernet switch with PoE

Mini 5-Port Industrial Gigabit Switch 12–48VDC -40~80°C IP40

Overview

The LNK-IMC005G Series is a rugged 5-port industrial gigabit Ethernet switch designed for harsh

environments. With 12–48VDC wide power input, IP40-rated metal housing, and an extended operating

temperature range of -40°C to 80°C, it delivers reliable, high-speed connectivity in critical applications.

Its compact design supports DIN-rail or wall mounting, making it an ideal cost-effective solution for

industrial networking.

Features

5× 10/100/1000BASE-T RJ45 ports with auto-MDI/MDI-X

12–48VDC wide-range redundant power input

Optional IEEE 802.3af/at PoE support

Compact, IP40-rated rugged aluminum housing

Operating temperature from -40°C to 80°C

Supports IEEE 802.3az Energy-Efficient Ethernet

DIN-rail and wall-mount installation options

Non-blocking 10Gbps switching fabric

Low power consumption <6W (125W with PoE)

Compliance with CE/FCC/EMC industrial standards

Technical Indexes

Ethernet
Standards:	IEEE 802.3 Ethernet
	IEEE 802.3u Fast Ethernet
	IEEE 802.3ab Gigabit Ethernet
	IEEE 802.3x Full-Duplex Flow Control
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE 802.3af/at Optional
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer:	1Mbits
Packet Length:	10Kbytes
MAC Address Table:	8K
Switch Fabric:	10Gbps/non-blocking
Exchange Property	Backplane bandwidth: 10Gbps; Packet forwarding rate: 14.88Mpps
Connector:	5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	12~48VDC (Terminal Block)
Power Consumption:	<6W (PoE In Use: <125W)
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
Dimensions (WxDxH):	95 x 70x 29mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
LED Indicators:
PWR	Power
L/A	Link/Activity
SPD	Data Rate
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55032:2017
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC005G	Mini Industrial 5-Port 10/100/1000T Gigabit Ethernet Switch
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately
