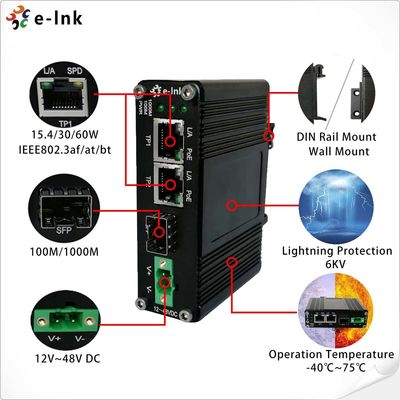

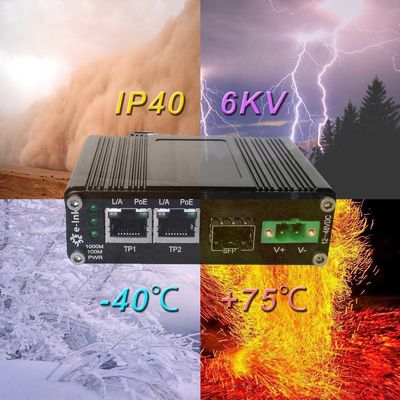

Industrial Fiber Ethernet Media Converter 1 Port 100/1000X SFP To 2 Port 10/100/1000T 60W

Industrial Fiber Ethernet Media Converter 1 Port 100/1000X SFP To 2 Port 10/100/1000T 60W
Industrial Fiber Ethernet Media Converter 1 Port 100/1000X SFP To 2 Port 10/100/1000T 60W
video play

Large Image :  Industrial Fiber Ethernet Media Converter 1 Port 100/1000X SFP To 2 Port 10/100/1000T 60W

Product Details:
Place of Origin: China
Brand Name: E-link
Certification: RoHS,CE,FCC
Model Number: LNK-IMC1200GP60-SFP
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 3
Payment Terms: L/C, D/P, D/A, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000
Detailed Product Description
Connector: 2 X RJ45 Weight: 0.25Kg
Dimensions (WxDxH): 95 X 70 X 30 Mm Casing: Aluminum Case
Mounting Options: DIN-Rail / Wall-mount Operating Temperature: -40°C To 75°C (-40°F To 167°F)
MTBF: > 200,000 Hrs Optical Port: 1 X SFP 1000Base-X Or 100Base-FX (auto Detection)
Input Power: 48~57VDC, 2-pin Terminal Block Power Consumption: 125W Max.
High Light:

gigabit fiber media converter

,

single mode fiber media converter

Mini Industrial 1-Port 100/1000X SFP to 2-Port 10/100/1000T 60W PoE++ Media Converter

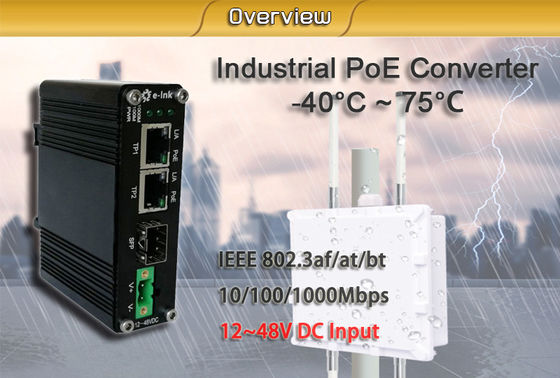

Overview



LNK-IMC1200GP60-SFP is a DIN rail type media converter that supports external SFP Modules and meets EN55022 standard. The Ethernet port support high power PoE (Power Sourcing Equipment) which complies with IEEE802.3bt standard.



It is a hardened grade product whose operating temperature range is -40°C to +75°C. LNK-IMC1200GP60-SFP supports 10/100/1000Base-T with 60W PoE++ and 100/1000Base-X SFP Port. The Ethernet port supports both half-duplex and full-duplex mode.



Users can use different type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed.

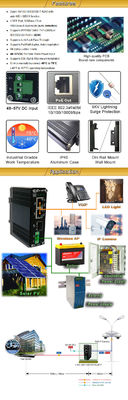

Features



Industrial Fiber Ethernet Media Converter 1 Port 100/1000X SFP To 2 Port 10/100/1000T 60W 0



Technical Indexes



Standards:

IEEE802.3 10Base-T

IEEE802.3u 100Base-TX/FX

IEEE802.3ab 1000Base-T

IEEE802.3z 1000Base-X

IEEE802.3af Power over Ethernet

IEEE802.3at Power over Ethernet

IEEE802.3bt Power over Ethernet

Processing Type:

Store-and-Forward

Forward Filter Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer Memory:

1 Mbit

Max Packet Length:

9K Bytes

Address Table Size

2K MAC Addresses

Interface

Connector:

2 x RJ45

Optical Port:

1 x SFP 1000Base-X or 100Base-FX (auto detection)

Electrical and Mechanical

Input Power:

48~57VDC, 2-pin terminal block

Power Consumption:

125W Max.

LED Indicators:

PWR:

Power Status

PoE:

PD Plug Status

RJ45:

LINK/Activity

SFP:

LINK

Dimensions (WxDxH):

95 x 70 x 30 mm

Weight:

0.25Kg

Mounting Options:

DIN-Rail / Wall-mount

Environmental

Operating Temperature:

-40°C to 75°C (-40°F to 167°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Regulatory Approvals

ISO9001, CE, FCC, RoHS

EMI:

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55024: 2010

EMS:

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFM



Ordering Information





Model Description
LNK-IMC1200GP60-SFP Hardened 2-Port 10/100/1000BASE-TX to 100/1000BASE-X SFP Media Converter with 60W PoE++
SFP Options ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
► SFP module is to be purchased separately.
Mounting Options ► Default DIN-Rail Bracket installed, Wall Mount Bracket is included.
Power Options ► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block
► Power Supply is to be purchased separately.

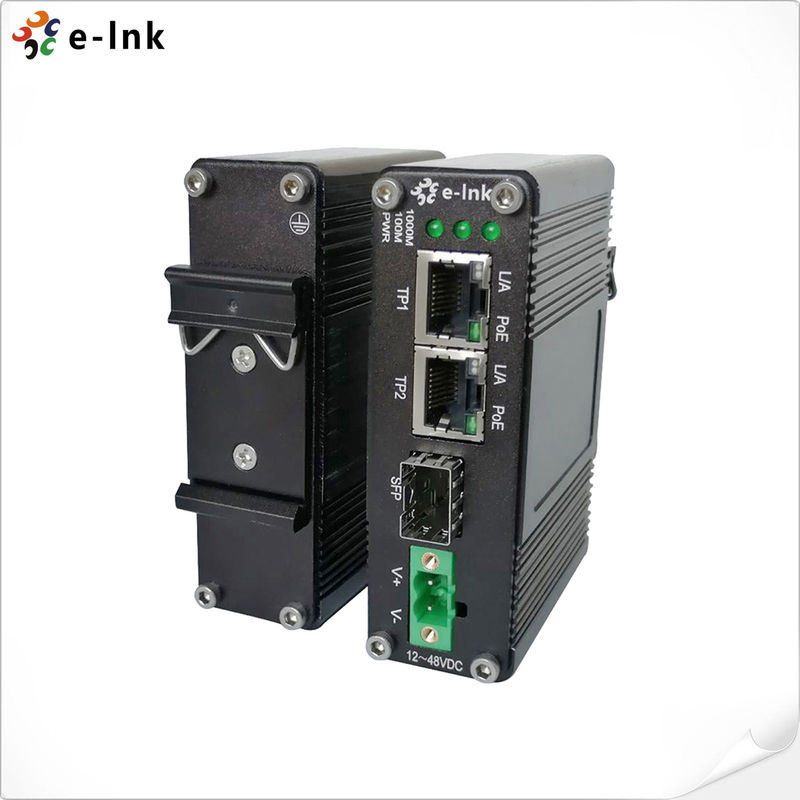

Products Photo

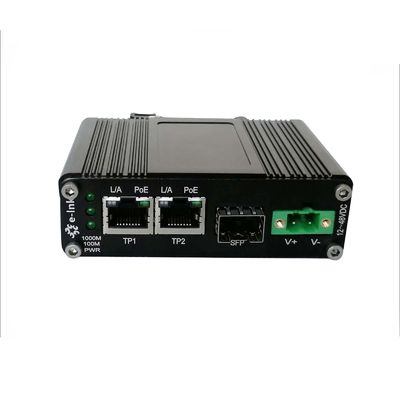

Industrial Fiber Ethernet Media Converter 1 Port 100/1000X SFP To 2 Port 10/100/1000T 60W 1





Industrial Fiber Ethernet Media Converter 1 Port 100/1000X SFP To 2 Port 10/100/1000T 60W 2
