Product Details:
Payment & Shipping Terms:
|
| Forward & Filtering Rate:: | 10G/5G/2.5G/1G/100M | Connector: | 1 X RJ45 |
|---|---|---|---|
| Optical Port: | 1 X SFP+ | Operating Temperature: | -40°C To 80°C (-40°F To 176°F) |
| Input Power: | 48~57VDC, Redundant Power (4-pin Terminal Block) | Power Consumption: | 35W Max |
| Dimensions (WxDxH): | 95 X 70 X 30 Mm |

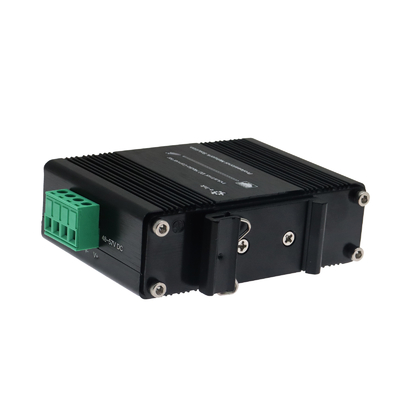

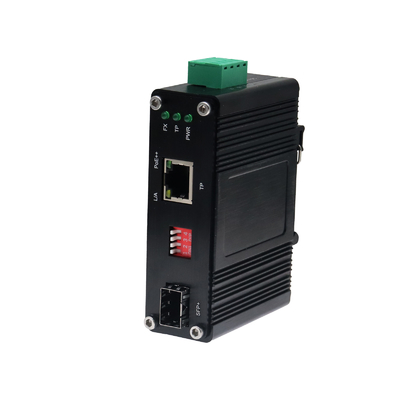

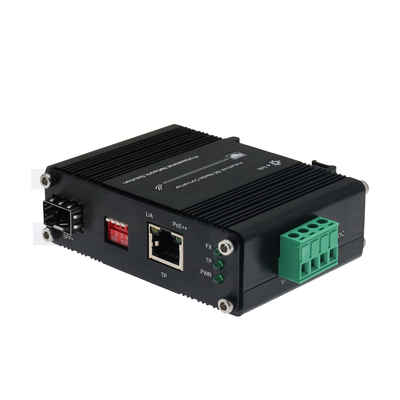

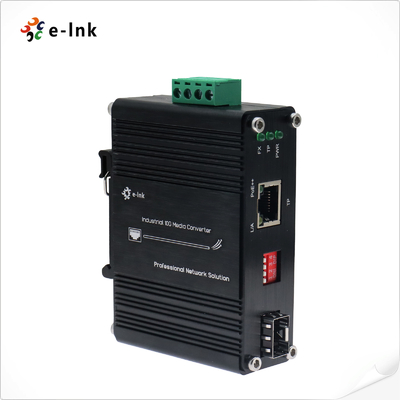

Mini Industrial 10G/5G/2.5G/1G/100M 802.3at to 10GBASE-X SFP+ Media Converter
Industrial Ethernet Media Converter Advantages
► 100/1G/2.5G/5G/10G BASE-T RJ45 interface with auto MDI/MDI-X function, 10GBASE-X SFP+ slot interface
► Compliant with IEEE802.3af/at protocol
► Supports auto-negotiation 100Mbps, 1Gbps half/full duplex and 2.5/5/10Gbps full duplex mode
► Supports DIN-Rail & Wall-mount installation
► Extensive LED indicators for network diagnostics
Industrial Ethernet Media Converter Technical Indexes
| Software Features | ||||
| Network Cables: |
10G/5G/2.5G/1G/100M BASE-T: 10G – Cat 6A/7 5G – Cat 6/6A/7 1G/2.5G – Cat 5e/6/6A/7 100M – Cat 5/5e/6/6A/7 Cat 5/5e/6/6A/7 UTP cable (100 meters, max.) EIA/TIA-568 100-ohm STP (100 meters, max.) 10GBASE-LR/SR/BX: 50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 300m 9/125μm single-mode fiber optic cable, up to 80km |
|||
| Processing Type: | Store-and-Forward | |||
| Jumbo Frame: | 16K | |||
| Address Table: | 9K entries, automatic source address learning and aging | |||
| MTBF | > 200,000 hrs | |||
| Protection: | ||||
| Power Input Overload: | Automatic Resettable | |||
| Reverse Polarity: | Present | |||
| LED Indicators: | ||||
| PWR: | Power Status | |||
| L/A: | Link/Activity at Ethernet Port | |||
| TP: | Ethernet Status | |||
| FX: | SFP+ Fiber Port Status | |||
| Dimensions (WxDxH): | 95 x 70 x 30 mm | |||
| Weight: | 0.25Kg | |||
| Casing: | Aluminum Case | |||
| Mounting Options: | DIN-Rail/Wall-mount | |||
Industrial Ethernet Media Converter Overview
The LNK-IMC10GP30-SFP+ is an Industrial-grade 10G 802.3at PoE Media Converter that offers non-blocking, wire-speed performance and exceptional flexibility for extending 10Gigabit Ethernet networks in demanding industrial settings.It is equipped with one 100Mbps/1Gbps/2.5Gbps/5Gbps/10GBASE-T RJ45 copper interface and one 10GBASE-X SFP+ fiber optic interface delivered in an IP40 rugged but compact-sized case with redundant power system. The LNK-IMC10GP30-SFP+ is perfectly suited for a variety of applications involving copper-to-fiber media conversion in environments requiring 10Gigabit bandwidth, especially in climatically challenging conditions with temperatures ranging from -40 to 80 degrees Celsius.
Ordering Information
| Model | Description |
| LNK-IMC10GP30-SFP+ | Mini Industrial 10G/5G/2.5G/1G/100M 802.3at to 10GBASE-X SFP+ Media Converter |
| SFP Options | ► SFP+ option. Please select your SFP+ on our SFP+ Options Page (Industrial SFP). |
| ► SFP+ module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► Power Supply is to be purchased separately. |
