Product Details:
Payment & Shipping Terms:
|
| Product Name: | SDI To Fiber Optic Converter | Power Adaptor: | AC 110~220V |
|---|---|---|---|
| Power Consumption: | <15W | Dimension: | 483 X 270 X 45mm (19inch 1U) |
| Wavelength: | 1310nm/1550nm | Operating Temperature: | -20℃～+70℃ |
SDI Over Fiber Optic Extender's Product Description:

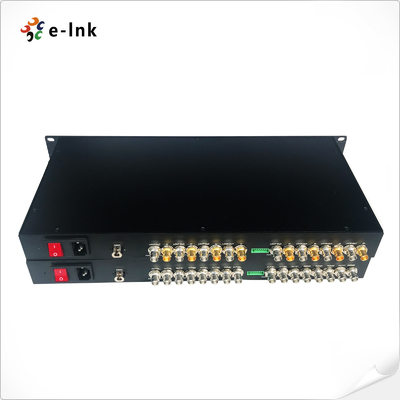

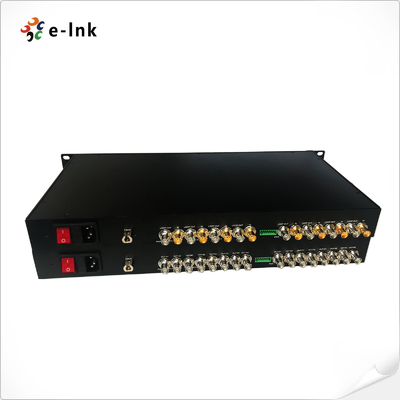

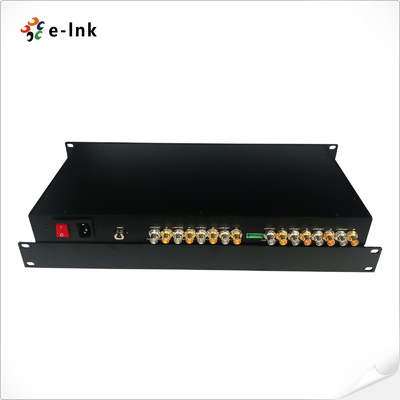

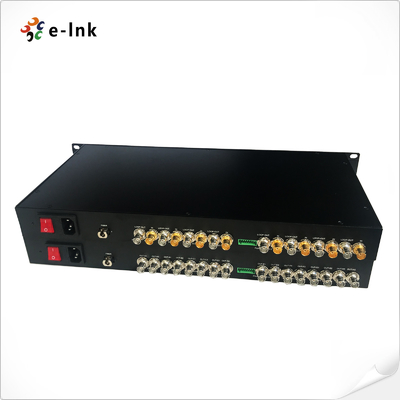

LNK-SDI-8V Series support 8-channel SD/HD/3G-SDI standard high-definition video signal transmitted via single fiber optical cable, and monitor the signal locally over a SD/HD/3G-SDI loop output. This SDI Over Fiber Optic Extender includes one transmitter and one receiver for 1080P 3G-SDI signal. E-link SD/HD/3G-SDI Fiber Converters can simultaneously transmit 8-Ch SD/HD/3G -SDI Video, 1-Ch Reverse RS-485 data and signal through a single optical fiber. The video quality up to broadcast standard, audio quality up to CD level supports Reverse RS-485 data communication format.
► 8 channel SD/HD/3G-SDI video transmission over optic fiber
► Automatic cable equalization to ensure signal integrity
► Automatic reclocking 270Mbit/s - 1.48Gbit/s - 3Gbit/s
► Directly compatible with 3G-SDI camera systems and support Reverse RS-485 data protocols
► Terminal block power input for industrial application
► Supports hot swapping and hot plugging
► Full digital non-compression broadcast level transmission;
► super optic dynamic range and free of adjustment prior to use;
► fiber optic WDM/CWDM/DWDM technique;
► Real-time status LED indicators for troubleshooting and monitoring
► Industry level ultra-broad temperature range, adaptable to various environments;
| Fiber interface | Simplex LC |
| Transmission distance | 550m-20Km |
| Video interface | BNC |
| Video input/output impedance | 75Ω |
| Video input/output voltage | Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp |
| Video Bits Rate | Max 3.2Gb/s |
| SDI format support | 625/25 PAL |
| 525/29.97 NTSC, 525/23.98 NTSC | |
| 720p50, 720p59.94 | |
| 1080i 23/24/30/50/59.94 | |
| 1080P 23.98/24/30/50/60 |
SDI Over Fiber Optic Extender technical support and services include:
| Model | Description |
| LNK-SDI-8V | 19" 1U 8-Ch HD-SDI Video with Loop-out, 20km, SM, LC, including 1 transmitter & 1 receiver, used by pairs |
| LNK-SDI-8V1R | 19" 1U 8-Ch HD-SDI Video with Loop-out + 1-Ch RS485 Reverse Data, 20km, SM, LC, including 1 transmitter & 1 receiver, used by pairs |
| LNK-SDI-8V1A | 19" 1U 8-Ch HD-SDI Video with Loop-out + 1-Ch Forward Audio, 20km, SM, LC, including 1 transmitter & 1 receiver, used by pairs |
| LNK-3GSDI-8V | 19" 1U 8-Ch 3G-SDI 1080P Video with Loop-out, 20km, SM, LC, including 1 transmitter & 1 receiver, used by pairs |
| LNK-3GSDI-8V1R | 19" 1U 8-Ch 3G-SDI 1080P Video with Loop-out + 1-Ch RS485 Reverse Data, 20km, SM, LC, including 1 transmitter & 1 receiver, used by pairs |
| LNK-3GSDI-8V1A | 19" 1U 8-Ch 3G-SDI 1080P Video with Loop-out + 1-Ch Forward Audio, 20km, SM, LC, including 1 transmitter & 1 receiver, used by pairs |
