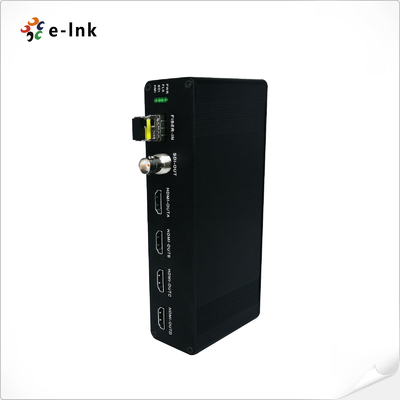

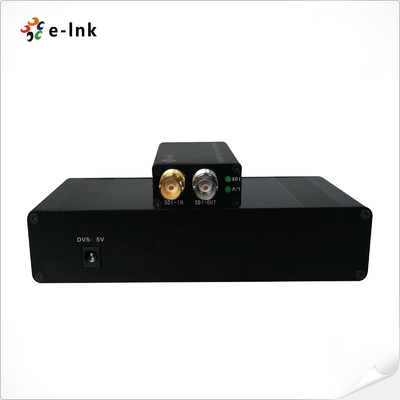

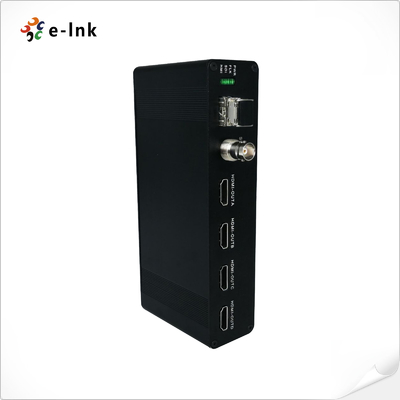

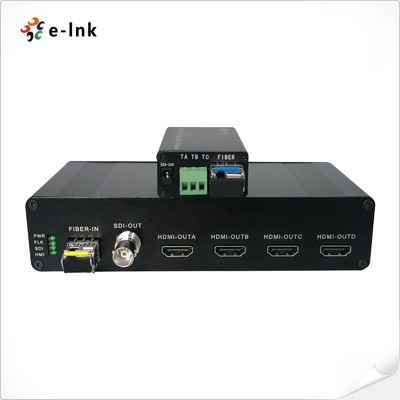

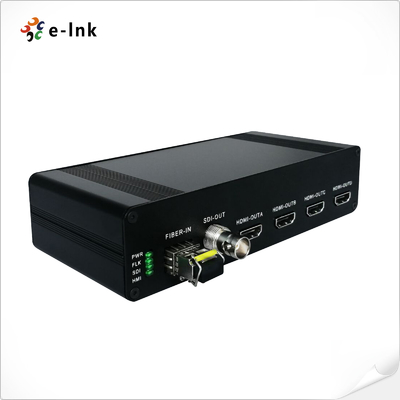

LNK-3G-1V4H 3G-SDI Video Over Fiber Converter with SDI Loop-Out and HDMI Outputs

Large Image : LNK-3G-1V4H 3G-SDI Video Over Fiber Converter with SDI Loop-Out and HDMI Outputs

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-3G-1V4H

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	SDI Over Fiber Optic Extender Standard Export Package
Delivery Time:	3~10 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Product Name:	SDI To Fiber Optic Converter	Power Adaptor:	DC 5V
Power Consumption:	<5W	Dimension:	72 X 42 X 22 Mm(TX) 164 X 72 X 38 Mm(RX)
Wavelength:	1310nm/1550nm	Weight:	1.5KG/Pair

1Ch 3G-SDI Fiber Extender with 4Ch HDMI Output

Overview

The LNK-3G-1V4H Series 3G-SDI Fiber Extender enables transmission of 1-channel 3G-SDI video,

while providing a local SDI loop-out for real-time monitoring. The system includes one transmitter with

SDI loop output and one receiver featuring 1 SDI output and 4 HDMI outputs, allowing simultaneous

multi-screen display. Ideal for broadcasting, live events, video conferencing, and security monitoring,

it delivers broadcast-quality, lossless video transmission over long distances.

Features

► Transmitter with 1Ch 3G-SDI input and loop out

► Receiver with 1Ch 3G-SDI output and 4Ch HDMI output

► Automatic reclocking 270Mbit/s - 1.48Gbit/s - 3Gbit/s

► Directly compatible with 3G-SDI camera systems

► Long transmission capability at least 10 km (6.2miles) , up to 80 km

► Terminal block power input; Hot swap and hot plug;

► Full digital non-compression broadcast level transmission;

► super optic dynamic range and free of adjustment;

► fiber optic WDM/CWDM/DWDM technique;

► industry level ultra-broad temperature range (-40℃~+85℃), adaptable to various environments;

Technical Indexes

Fiber Optical interface
Fiber interface	Simplex LC
Transmission distance	550m-20Km
Wavelength	1310nm/1550nm
Video - SDI
Video interface	BNC
Video input/output impedance	75Ω
Video input/out put voltage	Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp
Video Bits Rate	Max 3.2Gb/s
Differential gain (10%～90% APL)	<1%
Video SDI standard	270Mbps(SD-SDI), 1.485Gbps/M(HD-SDI)
	SMPTE425M3Gb/s Mapping(3G-SDI)
	SMPTE424M 3Gb/s serial interface(3G-SDI)
Video - HDMI
Connector	Female HDMI type A
Impedance	100Ω
Resolution	Up to 1920*1200@60Hz
HDMI Cable Range	<5Meter
Electrical
Power adaptor	DC 5V
Power consumption	<5W
LED Indicator
PWR	Power Supply
FLK	Fiber Link
SDI	SDI Video
HMI	HDMI Video
Mechanical
Dimensions (LxWxH)	Transmitter: 72 x 42 x 22 mm
Dimensions (LxWxH)	Receiver: 164 x 72 x 38 mm
Weight	1.5KG/pair
Casing	Aluminum Case
Mounting Options	Desktop
Environmental
Working Temperature	-20℃～+70℃
Storage Temperature	-40℃～+80℃
Working Humidity	0~95%
MTBF	≥100000 hours

Dimension & Size

LNK-3G-1V4H 3G-SDI Video Over Fiber Converter with SDI Loop-Out and HDMI Outputs 0

Ordering Information

Model	Description
LNK-3G-1V4H	3G-SDI Fiber Extender, Transmitter with 3G-SDI input and loop out, Receiver with 1Ch 3G-SDI output and 4Ch HDMI output, SMF, LC Fiber Connector 20KM, used by pairs
