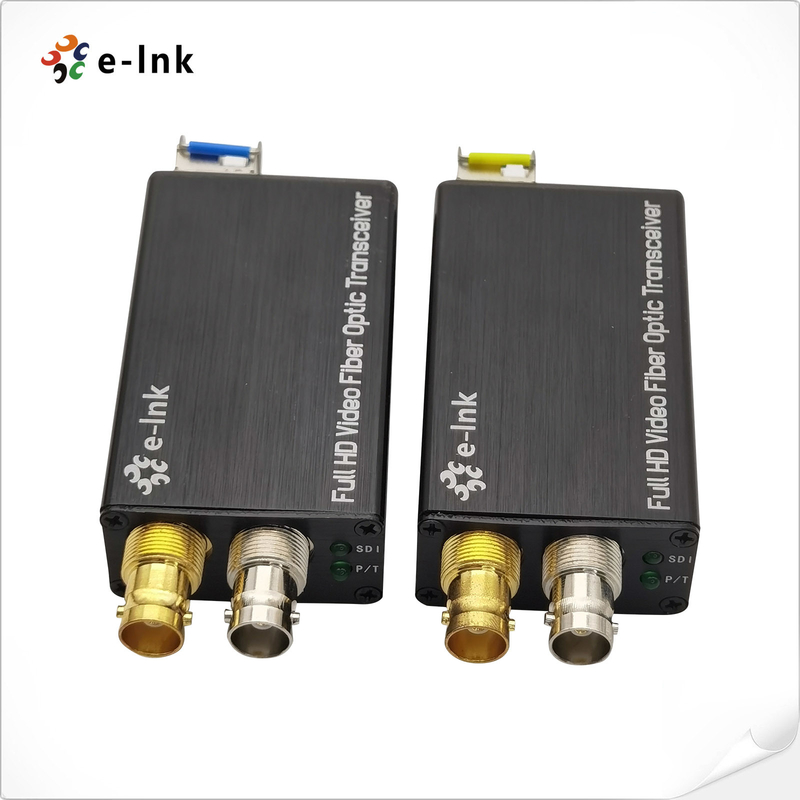

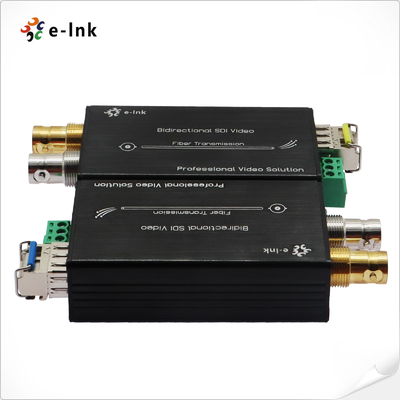

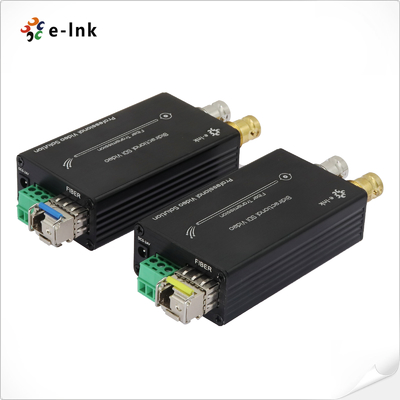

Mini 3G/HD-SDI Fiber Converter with 1-Channel Bi-Directional Video Transmission

Large Image : Mini 3G/HD-SDI Fiber Converter with 1-Channel Bi-Directional Video Transmission

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-M3G-BI20

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	SDI Over Fiber Optic Extender Standard Export Package
Delivery Time:	3~10 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Power Adaptor::	DC 5~12V	Power Consumption::	<5W
Dimension::	80 X 40 X 20 Mm	Weight::	0.8KG/Pair
Mounting::	Desktop

Mini Bi-directional HD/3G-SDI to Fiber Converter

Overiew

The Mini-type 3G/HD-SDI Fiber Converter is designed for professional video transmission, supporting

1-channel bi-directional 3G/HD-SDI video (with embedded audio) over a single fiber optic cable.

This solution includes a transmitter and receiver pair, enabling real-time, lossless,

uncompressed digital video at broadcast quality. It fully supports all pathological patterns,

ensuring stable and reliable signal transmission for 1080P 3G/HD-SDI signals. Ideal for security surveillance,

video conferencing, live broadcasting, and event production applications.

Features

► Each channel includes 4-channel audio embedded;

► Automatic cable equalization, used for all rate below 3.2 Gb/s (Belden 1694A);

► Automatic reclocking 270Mbit/s - 1.48Gbit/s - 3Gbit/s

► Directly compatible with HD-SDI camera systems

► Long transmission capability up to 80 km

► Hot swap and hot plug;

► Handle all Pathological patterns, fully digital non-compression broadcast level transmission;

► LED Status Indication to monitor the working conditions;

► Super optic dynamic range and free of adjustment;
► Industry level ultra-broad temperature range (-20℃~+70℃), adaptable to various environments;

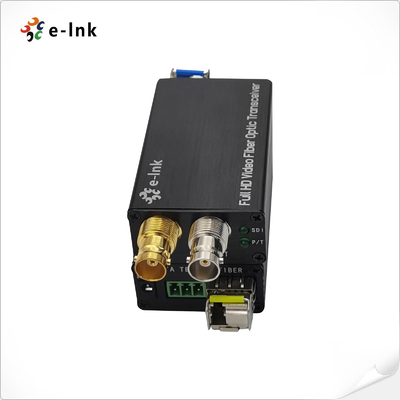

Interface & Panel

Mini 3G/HD-SDI Fiber Converter with 1-Channel Bi-Directional Video Transmission 0

Technical Indexes

Fiber Optical interface
Fiber interface	Simplex LC
Transmission distance	0-20Km (Other distance available)
Wavelength	1310nm/1550nm
Video
Video interface	BNC
Video input/output impedance	75Ω
Video input/output voltage	Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp
Video Bits Rate	Max 3.2Gb/s
Differential gain (10%～90% APL)	<1%
SDI format support	625/25 PAL
	525/29.97 NTSC, 525/23.98 NTSC
	720p50, 720p59.94
	1080i 23/24/30/50/59.94
	1080P 23.98/24/30/50/60
Video SDI standard	270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI)
	SMPTE425M3Gb/s Mapping(3G-SDI)
	SMPTE424M 3Gb/s serial interface(3G-SDI)
Electrical
Power adaptor	DC 5~12V
Power consumption	<5W
LED Indicator
SDI	SDI video
P/T	Power Supply
Mechanical

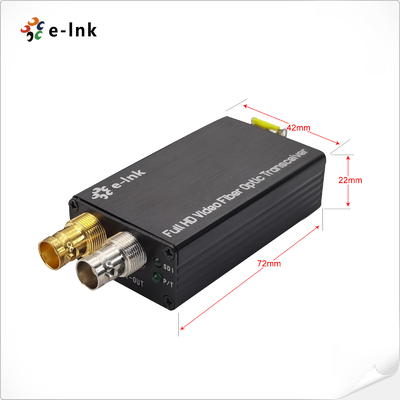

Dimensions (LxWxH)	80 x 40 x 20 mm
Weight	0.8KG/pair
Casing	Aluminum Case
Mounting Options	Desktop
Environmental
Working Temperature	-20℃～+70℃
Storage Temperature	-40℃～+80℃
Working Humidity	0~95%
MTBF	≥100000 hours

Ordering Information

Model	Description
LN K-MHD-BIMM	Mini-type Bi-directional HD-SDI to Fiber Converter, MMF, LC Fiber Connector 500 meters, including Transmitter and Receiver, used by pairs
LNK-MHD-BI20	Mini-type Bi-directional HD-SDI to Fiber Converter, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs
LNK-MHD-BI40	Mini-type Bi-directional HD-SDI to Fiber Converter, SMF, LC Fiber Connector 40KM, including Transmitter and Receiver, used by pairs

Model	Description
LNK-M3G-BIMM	Mini-type Bi-directional 3G-SDI to Fiber Converter, MMF, LC Fiber Connector 500 meters, including Transmitter and Receiver, used by pairs
LNK-M3G-BI20	Mini-type Bi-directional 3G-SDI to Fiber Converter, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs
LNK-M3G-BI40	Mini-type Bi-directional 3G-SDI to Fiber Converter, SMF, LC Fiber Connector 40KM, including Transmitter and Receiver, used by pairs

Application

Mini 3G/HD-SDI Fiber Converter with 1-Channel Bi-Directional Video Transmission 1
