8Ch 3G-SDI plus 1Ch 10G Ethernet over Fiber Extender

Name: 8Ch 3G-SDI plus 1Ch 10G Ethernet over Fiber Extender
Brand: E-link
SKU: LNK-3G8V10GE
Rating: 5 (190 reviews)

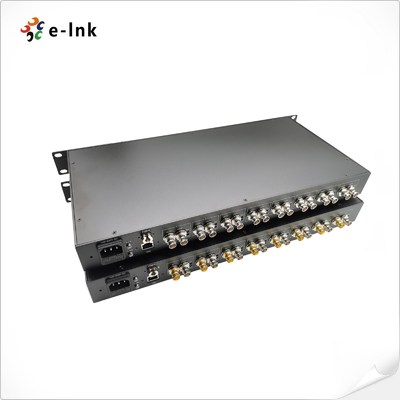

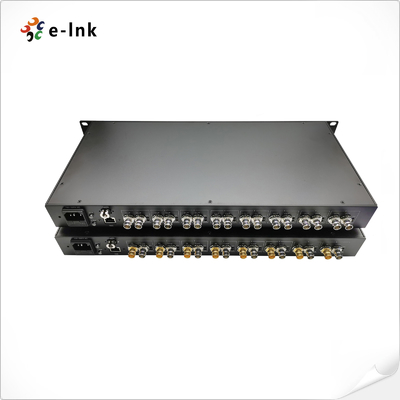

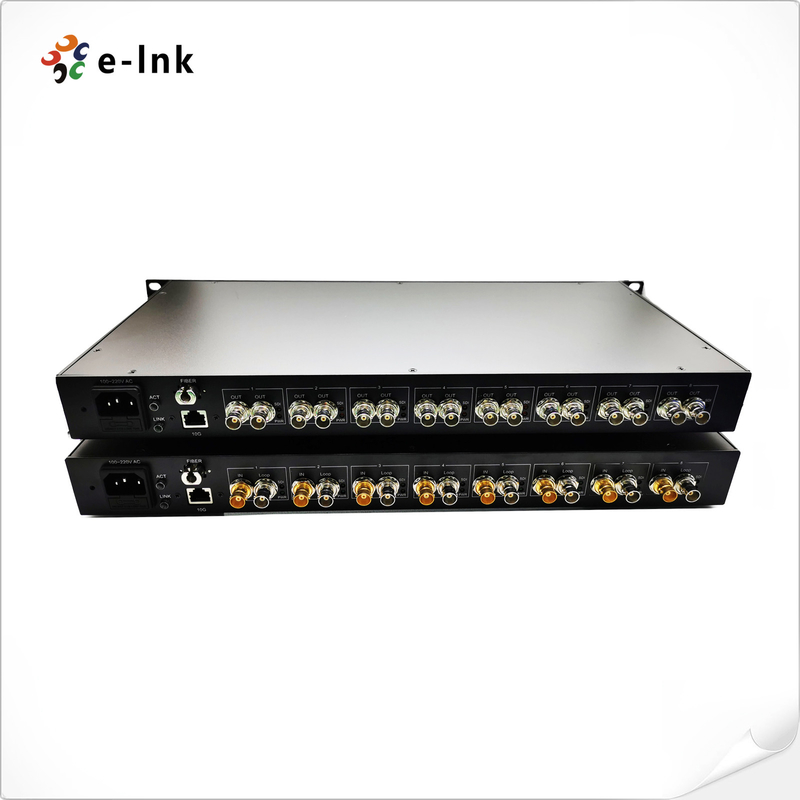

Large Image : 8Ch 3G-SDI plus 1Ch 10G Ethernet over Fiber Extender

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-3G8V10GE

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	SDI Over Fiber Optic Extender Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Product Name:	SDI To Fiber Optic Converter	Power Adaptor:	AC 110~220V
Power Consumption:	<12W	Dimension:	483 X 270 X 45mm (19inch 1U)
Wavelength:	1310nm/1550nm	Operating Temperature:	-20℃～+70℃

SDI Over Fiber Optic Extender's Product Description:

This SDI Over Fiber Optic Extender provides transmission of one 3G-SDI channel with 10G Ethernet IP channels over single mode optical cables. This SDI and IP to optical fiber converter enables high optical performance and brilliant HD video processing in real time. IP interfaces can dramatically increase scalability and compatibility with all modern high-end networking systems.

8Ch 3G-SDI plus 1Ch 10G Ethernet over Fiber Extender 0

SDI Over Fiber Optic Extender's Features:

► 8Ch 3G-SDI/ASI video with embedded audio and 10G Ethernet over one fiber

► Compatible with HD-SDI, SD-SDI, DVB-AST

► Bandwidth range from 19.4Mb/s to 2.97Gb/s

► SMPTE 424M (2.97Gb/s) clock recovery

► Support all popular standards for digital video transport such as SMPTE 424M, SMPTE 292M, and SMPTE 259M, SMPTE 297M working at 3G-SDI, HD-SDI, SD-SDI, ASI respectively

► Built-in CWDM system, SFP modules for each path

► Support automatic cable equalization based on the data rate detected

► LED status indicators monitor the critical parameters

SDI Over Fiber Optic Extender's Technical Parameters:

Fiber interface	Simplex LC
Transmission distance	20Km
Video interface	BNC
Video input/output impedance	75Ω
Video input/output voltage	Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp
Video Bits Rate	Max 3.2Gb/s
Differential gain (10%～90% APL)	<1%
Video SDI standard	270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI)
	SMPTE425M3Gb/s Mapping(3G-SDI)
	SMPTE424M 3Gb/s serial interface(3G-SDI)
Video Input	8 Channel with Loop Out on TX
Video Output	8 Channel with Loop Out on RX

SDI Over Fiber Optic Extender's Application:

8Ch 3G-SDI plus 1Ch 10G Ethernet over Fiber Extender 1

SDI Over Fiber Optic Extender‘s Support and Services:

SDI Over Fiber Optic Extender technical support and services include:

24/7 online technical support
Free installation services
Onsite technical support
Regular system updates and upgrades
Training and education

SDI Over Fiber Optic Extender's Packing and Shipping:

SDI Over Fiber Optic Extender is packaged for shipping in a strong, corrugated box designed to ensure safe transport and handling. The interior is filled with protective foam inserts to help cushion the product against shock and vibration, while the exterior of the box is clearly labeled with product and shipping information.

SDI Over Fiber Optic Extender's Ordering Information:

Model	Description
LNK-3G8V10GE	8Ch 3G-SDI Fiber Converter with 10G Ethernet and loop out, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs
