12G-SDI to Fiber Converter with Gigabit Ethernet plus 2Ch Backward RS485

Name: 12G-SDI to Fiber Converter with Gigabit Ethernet plus 2Ch Backward RS485
Brand: E-link
SKU: LNK-12GSDI-1V2R1GE
Rating: 4.7 (199 reviews)

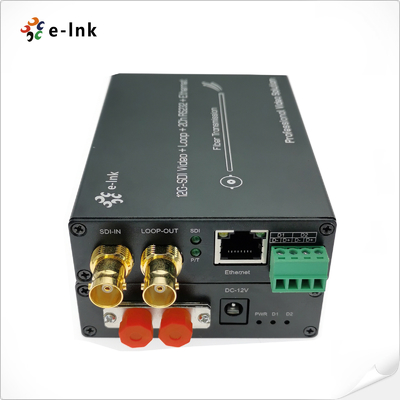

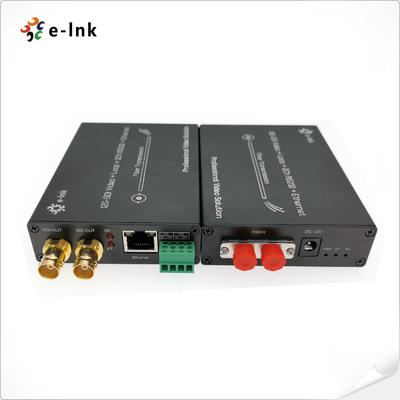

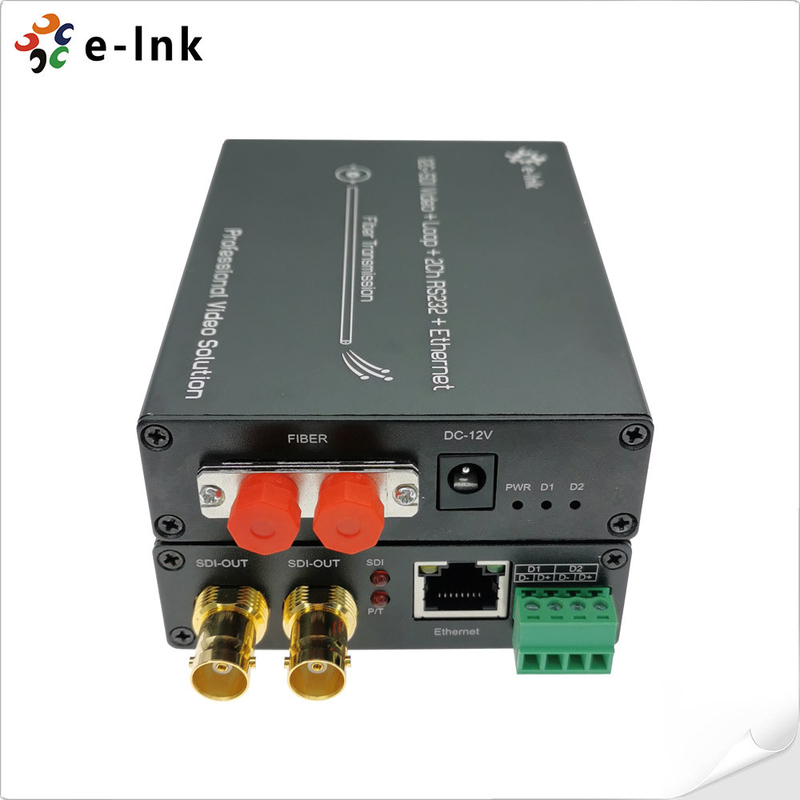

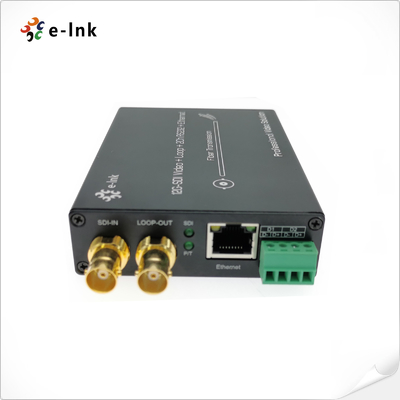

Large Image : 12G-SDI to Fiber Converter with Gigabit Ethernet plus 2Ch Backward RS485

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-12GSDI-1V2R1GE

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	SDI Over Fiber Optic Extender Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Product Name:	SDI To Fiber Optic Converter	Power:	12 VDC
Power Consumption:	6 W (Max.)	Dimension:	117 X 80 X 24 (mm)
Fiber Interface:	Simplex LC	Operating Temperature:	-10℃～70℃

SDI Over Fiber Optic Extender's Product Description:

This SDI Over Fiber Optic Extender 12G-SDI Fiber Converter supports 1Ch 12G Video (audio embedded) &1Ch Gigabit Ethernet&2Ch Backward RS485 transmitted via fiber optical cable, and monitor the signal locally over a 12G loop output. E-link 12G Video over Fiber Converters includes one transmitter and one receiver for HDTV 4K*2K(3840*2160@60Hz), 1080P,1080I, 720P.

12G-SDI to Fiber Converter with Gigabit Ethernet plus 2Ch Backward RS485 0

SDI Over Fiber Optic Extender's Features:

► Each SDI channel includes 8-channel audio embedded

► Automatic cable equalization to ensure signal integrity

► Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) and ST-259(SD)

► Integrated Reclocker Locks to SMPTE Rates of 11.88Gbps, 5.94Gbps, 2.97Gbps, 1.485Gbps or Divide-by-1.001 Subrates and 270 Mbps

► Directly compatible with 12G/6G/3G-SDI camera systems

► Long transmission capability up to 80 km

► Support 2Ch Backwards RS485

► Supports 1Ch 10/100/1000M Ethernet

► Full digital non-compression broadcast level transmission;

► Super optic dynamic range and free of adjustment;

► Fiber optic WDM/CWDM/DWDM technique

SDI Over Fiber Optic Extender's Technical Parameters:

Formats	Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) And ST-259(SD)
Compatible	Compatible With DVB-ASI and AES10 (MADI)
Input	1 x 12G-SDI on BNC
Output	2 x FC optical fiber
	1 x 12G-SDI loop-out on BNC
Supported Resolution	HDTV 4K*2K, 1080P, 1080I, 720P
Resolution range	3840*2160@60Hz
Input cable specification	≤70m@12G SDI Belden 1694A
Data type	2Ch Backward RS485
Optical transmission bandwidth	270MHz～12GHz
Storage Temperature	-40℃～85℃

SDI Over Fiber Optic Extender's Application:

12G-SDI to Fiber Converter with Gigabit Ethernet plus 2Ch Backward RS485 1

SDI Over Fiber Optic Extender‘s Support and Services:

SDI Over Fiber Optic Extender technical support and services include:

24/7 online technical support
Free installation services
Onsite technical support
Regular system updates and upgrades
Training and education

SDI Over Fiber Optic Extender's Packing and Shipping:

SDI Over Fiber Optic Extender is packaged for shipping in a strong, corrugated box designed to ensure safe transport and handling. The interior is filled with protective foam inserts to help cushion the product against shock and vibration, while the exterior of the box is clearly labeled with product and shipping information.
