Micro Bi-directional HD/3G-SDI to Fiber Converter

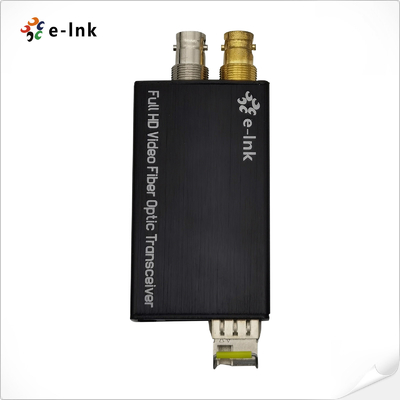

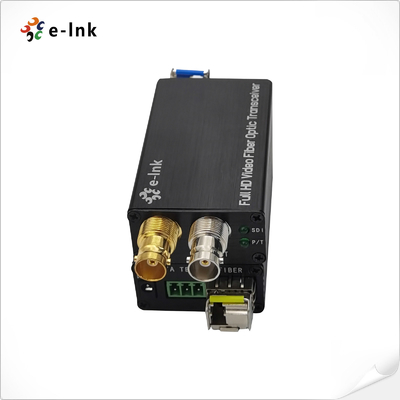

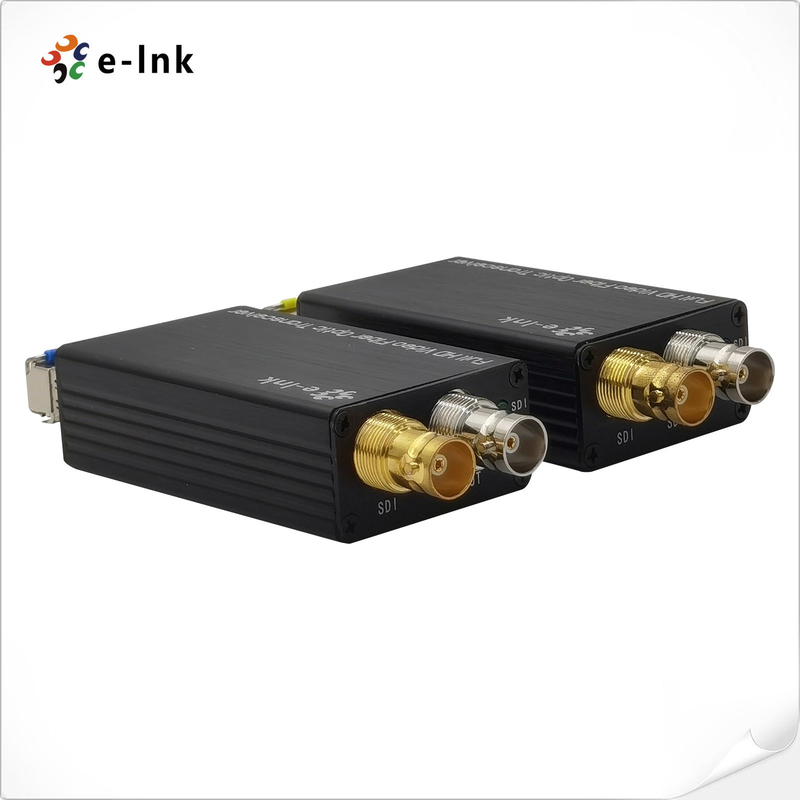

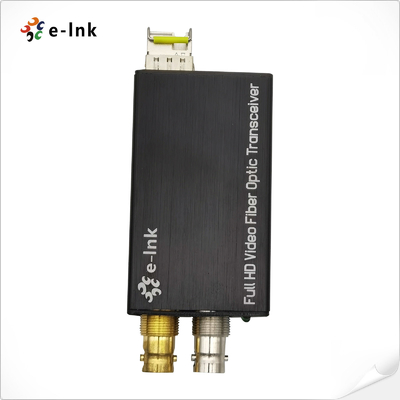

Large Image : Micro Bi-directional HD/3G-SDI to Fiber Converter

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-M3G-BI20

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	SDI Over Fiber Optic Extender Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Product Name:	SDI To Fiber Optic Converter	Power Adaptor:	DC 5~25V
Power Consumption:	<5W	Dimension:	80 X 40 X 20 Mm
Wavelength:	1310nm/1550nm	Operating Temperature:	-20℃～+70℃

SDI Over Fiber Optic Extender's Product Description:

LNK-M3G-BI20 Series Mini-type 3G/HD-SDI Fiber Converter supports 1-Channel Bi-directional 3G/HD-SDI Video (audio embedded) via fiber optical cable. This SDI Over Fiber Optic Extender includes one transmitter and one receiver for 1080P 3G/HD-SDI signal. This SDI Over Fiber Optic Extender handles all Pathological patterns, and full digital non-compression broadcast level transmission. This SDI Over Fiber Optic Extender is widely used in security system, video conference, broadcasting and live Events etc.

Micro Bi-directional HD/3G-SDI to Fiber Converter 0

SDI Over Fiber Optic Extender's Features:

► Each channel includes 4-channel audio embedded;

► Automatic cable equalization, used for all rate below 3.2 Gb/s (Belden 1694A);

► Automatic reclocking 270Mbit/s - 1.48Gbit/s - 3Gbit/s

► Directly compatible with HD-SDI camera systems

► Long transmission capability up to 80 km

► Hot swap and hot plug;

► Handle all Pathological patterns, fully digital non-compression broadcast level transmission;

► LED Status Indication to monitor the working conditions;

► Super optic dynamic range and free of adjustment;

SDI Over Fiber Optic Extender's Technical Parameters:

Fiber interface	Simplex LC
Transmission distance	0-20Km (Other distance available)
Video interface	BNC
Video input/output impedance	75Ω
Video input/output voltage	Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp
Video Bits Rate	Max 3.2Gb/s
Differential gain (10%～90% APL)	<1%
SDI format support	625/25 PAL
	525/29.97 NTSC, 525/23.98 NTSC
	720p50, 720p59.94
	1080i 23/24/30/50/59.94
	1080P 23.98/24/30/50/60

SDI Over Fiber Optic Extender's Application:

Micro Bi-directional HD/3G-SDI to Fiber Converter 1

SDI Over Fiber Optic Extender‘s Support and Services:

SDI Over Fiber Optic Extender technical support and services include:

24/7 online technical support
Free installation services
Onsite technical support
Regular system updates and upgrades
Training and education

SDI Over Fiber Optic Extender's Packing and Shipping:

SDI Over Fiber Optic Extender is packaged for shipping in a strong, corrugated box designed to ensure safe transport and handling. The interior is filled with protective foam inserts to help cushion the product against shock and vibration, while the exterior of the box is clearly labeled with product and shipping information.

SDI Over Fiber Optic Extender's Ordering Information:

Model	Description
LN K-MHD-BIMM	Mini-type Bi-directional HD-SDI to Fiber Converter, MMF, LC Fiber Connector 500 meters, including Transmitter and Receiver, used by pairs
LNK-MHD-BI20	Mini-type Bi-directional HD-SDI to Fiber Converter, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs
LNK-MHD-BI40	Mini-type Bi-directional HD-SDI to Fiber Converter, SMF, LC Fiber Connector 40KM, including Transmitter and Receiver, used by pairs

Model	Description
LNK-M3G-BIMM	Mini-type Bi-directional 3G-SDI to Fiber Converter, MMF, LC Fiber Connector 500 meters, including Transmitter and Receiver, used by pairs
LNK-M3G-BI20	Mini-type Bi-directional 3G-SDI to Fiber Converter, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs
LNK-M3G-BI40	Mini-type Bi-directional 3G-SDI to Fiber Converter, SMF, LC Fiber Connector 40KM, including Transmitter and Receiver, used by pairs
