Micro 3G-SDI to Fiber Converter with Tally or Reverse RS485

Name: Micro 3G-SDI to Fiber Converter with Tally or Reverse RS485
Brand: E-link
SKU: LNK-M3G-1V
Rating: 4.7 (110 reviews)

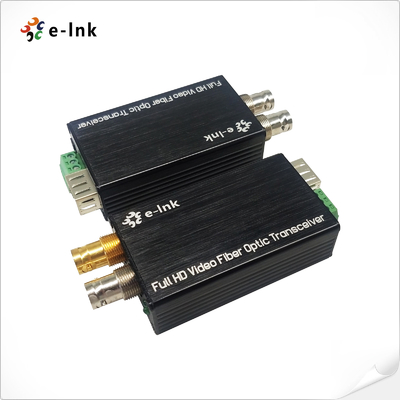

Large Image : Micro 3G-SDI to Fiber Converter with Tally or Reverse RS485

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-M3G-1V

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	SDI Over Fiber Optic Extender Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Product Name:	SDI To Fiber Optic Converter	Power Adaptor:	DC 5~25V
Power Consumption:	<5W	Dimension:	80 X 40 X 20 Mm
Wavelength:	1310nm/1550nm	Operating Temperature:	-20℃～+70℃

SDI Over Fiber Optic Extender's Product Description:

LNK-M3G-1V Series Mini-type 3G/HD-SDI Fiber Converter supports 1-channel 3G/HD-SDI Video (audio embedded) & Tally or Reverse RS485 signal transmitted via fiber optical cable, and monitor the signal locally over a 3G/HD-SDI loop output. SDI Over Fiber Optic Extender includes one transmitter and one receiver for 1080P 3G/HD-SDI signal.

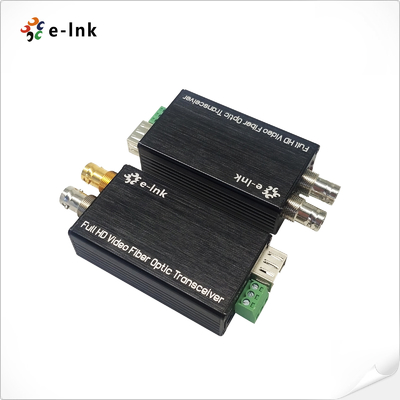

Micro 3G-SDI to Fiber Converter with Tally or Reverse RS485 0

SDI Over Fiber Optic Extender's Features:

► Each channel includes 8-channel audio embedded;

► Automatic cable equalization, used for all rate below 3.2 Gb/s (Belden 1694A);

► Automatic reclocking 270Mbit/s - 1.48Gbit/s - 3Gbit/s

► Directly compatible with HD-SDI camera systems

► Long transmission capability up to 80 km

► Hot swap and hot plug;

► Handle all Pathological patterns, fully digital non-compression broadcast level transmission;

► LED Status Indication to monitor the working conditions;

► super optic dynamic range and free of adjustment;

► 1470~1610nm CWDM wavelengths optional;

► industry level ultra-broad temperature range (-20℃~+70℃), adaptable to various environments;

SDI Over Fiber Optic Extender's Technical Parameters:

Fiber interface	Simplex LC
Transmission distance	550m-20Km
Video input/output impedance	75Ω
Video input/output voltage	Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp
Video Bits Rate	Max 3.2Gb/s
SDI format support	625/25 PAL
	525/29.97 NTSC, 525/23.98 NTSC
	720p50, 720p59.94
	1080i 23/24/30/50/59.94
	1080P 23.98/24/30/50/60
Video SDI standard	270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI)
	SMPTE425M3Gb/s Mapping(3G-SDI)
	SMPTE424M 3Gb/s serial interface(3G-SDI)
Physical interface	Industrial standard screw terminal
Data type	Tally or Reverse RS485

SDI Over Fiber Optic Extender's Application:

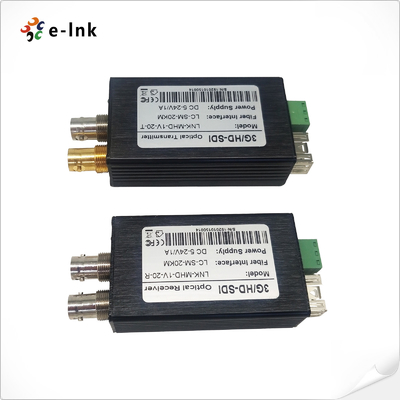

Micro 3G-SDI to Fiber Converter with Tally or Reverse RS485 1

SDI Over Fiber Optic Extender‘s Support and Services:

SDI Over Fiber Optic Extender technical support and services include:

24/7 online technical support
Free installation services
Onsite technical support
Regular system updates and upgrades
Training and education

SDI Over Fiber Optic Extender's Packing and Shipping:

SDI Over Fiber Optic Extender is packaged for shipping in a strong, corrugated box designed to ensure safe transport and handling. The interior is filled with protective foam inserts to help cushion the product against shock and vibration, while the exterior of the box is clearly labeled with product and shipping information.

SDI Over Fiber Optic Extender's Ordering Information:

Model	Description
LNK-M3G-1V1T-MM	Mini-type 3G-SDI to Fiber Converter with Tally and loop out, MMF, LC Fiber Connector 500 meters, including Transmitter and Receiver, used by pairs
LNK-M3G-1V1D-MM	Mini-type 3G-SDI to Fiber Converter with Reverse RS485 and loop out, MMF, LC Fiber Connector 500 meters, including Transmitter and Receiver, used by pairs
LNK-M3G-1V1T-20	Mini-type 3G-SDI to Fiber Converter with Tally and loop out, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs
LNK-M3G-1V1D-20	Mini-type 3G-SDI to Fiber Converter with Reverse RS485 and loop out, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs
LNK-M3G-1V1T-40	Mini-type 3G-SDI to Fiber Converter with Tally and loop out, SMF, LC Fiber Connector 40KM, including Transmitter and Receiver, used by pairs
LNK-M3G-1V1D-40	Mini-type 3G-SDI to Fiber Converter with Reverse RS485 and loop out, SMF, LC Fiber Connector 40KM, including Transmitter and Receiver, used by pairs
