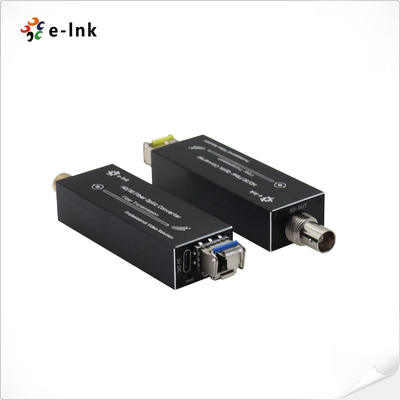

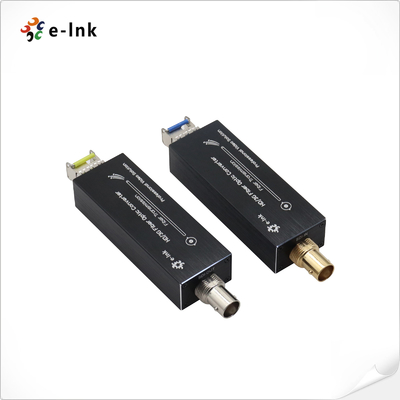

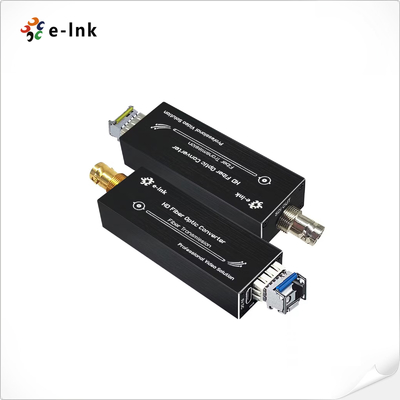

Micro HD-SDI Fiber Extender

Name: Micro HD-SDI Fiber Extender
Brand: E-link
SKU: LNK-MHD-MM, LNK-MHD-20
Rating: 4.9 (122 reviews)

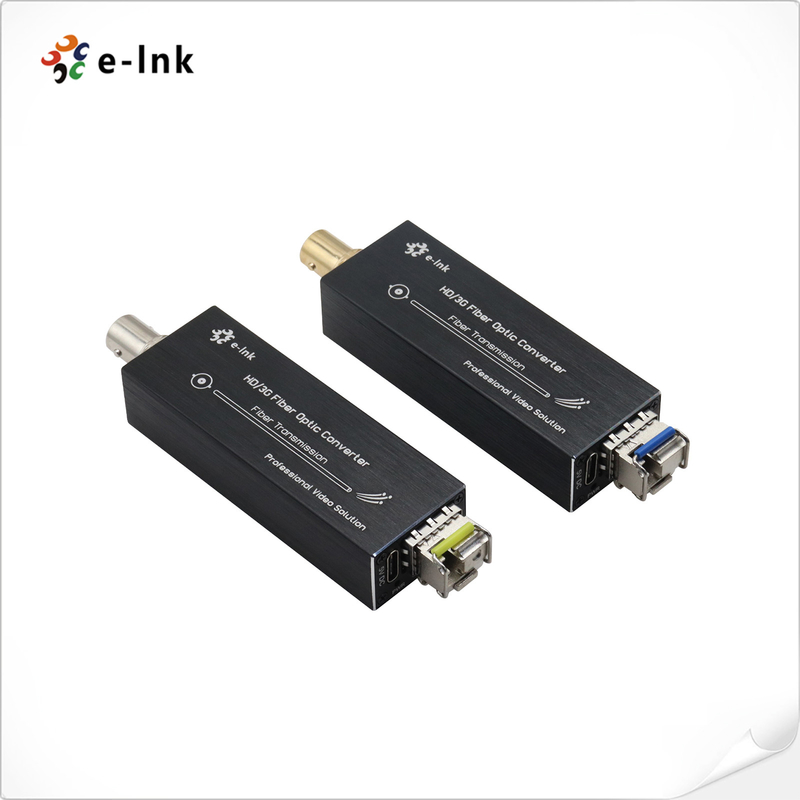

Large Image : Micro HD-SDI Fiber Extender

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-MHD-MM, LNK-MHD-20

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	SDI Over Fiber Optic Extender Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Product Name:	SDI To Fiber Optic Converter	Power Adaptor:	5V DC, Type-C Interface
Power Consumption:	<3W	Dimension:	79 X 27 X 18 Mm
Fiber Interface:	Simplex LC	Operating Temperature:	-20℃～+70℃

SDI Over Fiber Optic Extender's Product Description:

This HD-SDI Fiber Extender supports 1-channel HD-SDI Video (audio embedded) signal transmitted via fiber optical cable. E-link HD-SDI Video over Fiber Converter includes one transmitter and one receiver for HD-SDI signal. With compact size, it can easily integrate in other devices.This HD-SDI Fiber Extender is widely used in surveillance and broadcasting area.

Micro HD-SDI Fiber Extender 0

SDI Over Fiber Optic Extender's Features:

► Each channel includes 8-channel audio embedded

► Automatic cable equalization to ensure signal integrity

► Automatic reclocking 270Mbit/s - 1.48Gbit/s

► Directly compatible with HD-SDI camera systems

► Long transmission capability up to 80 km

► Terminal block power input; Hot swap and hot plug;

► Full digital non-compression broadcast level transmission;

► Super optic dynamic range and free of adjustment;

► Fiber optic WDM/CWDM/DWDM technique

SDI Over Fiber Optic Extender's Technical Parameters:

Transmission distance	550m-20Km
Wavelength	1310nm/1550nm
Video input/output impedance	75Ω
Video input/output voltage	Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp
SDI format support	625/25 PAL
	525/29.97 NTSC, 525/23.98 NTSC
	720p50, 720p59.94
	1080i 23/24/30/50/59.94
Video SDI standard	270Mbps (SD-SDI)
	1.485Gbps (HD-SDI)
Weight	0.5KG/pair
Casing	Aluminum Case
Mounting Options	Desktop

SDI Over Fiber Optic Extender's Application:

Micro HD-SDI Fiber Extender 1

SDI Over Fiber Optic Extender‘s Support and Services:

SDI Over Fiber Optic Extender technical support and services include:

24/7 online technical support
Free installation services
Onsite technical support
Regular system updates and upgrades
Training and education

SDI Over Fiber Optic Extender's Packing and Shipping:

SDI Over Fiber Optic Extender is packaged for shipping in a strong, corrugated box designed to ensure safe transport and handling. The interior is filled with protective foam inserts to help cushion the product against shock and vibration, while the exterior of the box is clearly labeled with product and shipping information.

SDI Over Fiber Optic Extender's Ordering Information:

Model	Description
LNK-MHD-MM	Mini HD-SDI to Fiber Converter, MMF, LC Fiber Connector 500 meters, including Transmitter and Receiver, used by pairs
LNK-MHD-20	Mini HD-SDI to Fiber Converter, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs
