Enterprise PoE Power Splitter 1000Mbps Gigabit 5V 2A With Micro USB Type C Port

Enterprise PoE Power Splitter 1000Mbps Gigabit 5V 2A With Micro USB Type C Port
Enterprise PoE Power Splitter 1000Mbps Gigabit 5V 2A With Micro USB Type C Port Enterprise PoE Power Splitter 1000Mbps Gigabit 5V 2A With Micro USB Type C Port Enterprise PoE Power Splitter 1000Mbps Gigabit 5V 2A With Micro USB Type C Port

Large Image :  Enterprise PoE Power Splitter 1000Mbps Gigabit 5V 2A With Micro USB Type C Port

Product Details:
Place of Origin: China
Brand Name: E-link
Certification: CE,FCC,RoHs
Model Number: LNK-SP5VG-USB
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Power Over Ethernet Splitter standard export package
Delivery Time: 7 days
Payment Terms: Western Union, L/C, T/T, MoneyGram, paypal
Supply Ability: 2000pcs/month
Detailed Product Description
Keyword: Gigabit PoE Power Splitter PoE Standard: 802.3af
Power Input: 44-57V DC Power Output: 5V 2.4A DC
Output Port: Micro USB Power Plug Working Temperature: 0°C~55°C
High Light:

802.3af PoE Power Splitter

,

PoE Power Splitter 5V

,

1000Mbps Gigabit PoE Splitter

Enterprise PoE Power Splitter 1000Mbps Gigabit 5V 2A With Micro USB Type-C Port
Gigabit PoE Ethernet Splitter Advantages

Data Output Port: RJ45 Male

Power Output Port: Micro USB Power Plug

Data Transfer Rate: 10/100/1000Mbps

Devices will be detected before poe input

Power Pin: support both 1/2(+/-),3/6(-/+) or 4/5(+),7/8(-)

Commercial Power Over Ethernet Splitter Technical Indexes

Standard

IEEE 802.3i 10BASET

IEEE 802.3u 100BASETX

IEEE 802.3ab 1000BASE-T

IEEE 802.3x Flow Control

IEEE 802.1af DTE Power via MDI

IEEE 802.3af

Power Pin 1/2(+), 3/6(-); 4/5(+), 7/8(-)
Distance

10BASE-T: cat 5 UTP(≤100m)

100BASE-TX: cat 5 and above UTP(≤100m)

1000BASE-T: cat 5 and above UTP(≤100m)

LED Indicator POE input indicator; PD output indicator
Environmental

Working Temperature: 0°C~55°C

Storage temperature: -20°C~75°C

Working Humidity: 10%~90% RH non-condensing

Storage Humidity: 5%~90% RH non-condensing

Product Size 83 x 28 x 22mm
Weight 59g

5V 2A PoE Splitter with Type-C Overview

The LNK-SP5VG-USB is designed specially to fill the demand of the micro USB power input products such as iPad, Dropcam, Raspberry Pi, Android, Tablet etc. It can be transmitted power and data signals through the cable transmission.

LNK-SP5VG-USB support the use of PSE equipment which meet IEEE802.3af standard, such as POE Switch series and so on. The LNK-SP5VG-USB is a ideal solution to delivering data and power to network devices directly via the RJ45 port interface without the need of installing extra power outlets and electrical cabling.

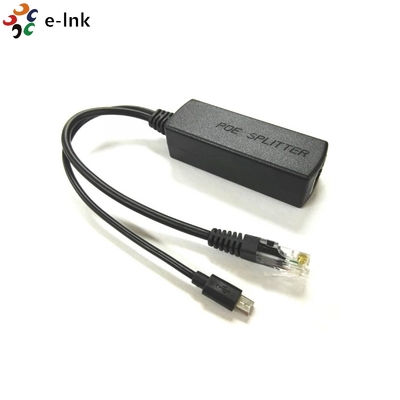

Enterprise PoE Power Splitter 1000Mbps Gigabit 5V 2A With Micro USB Type C Port 0

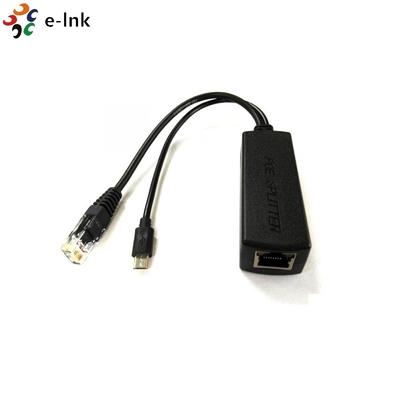

Enterprise PoE Power Splitter 1000Mbps Gigabit 5V 2A With Micro USB Type C Port 1
10/100/1000M 802.3af PoE Splitter Ordering Information

Model Description
LNK-SP5VG-USB 10/100/1000M 5V 2.4A POE splitter with Micro USB port
